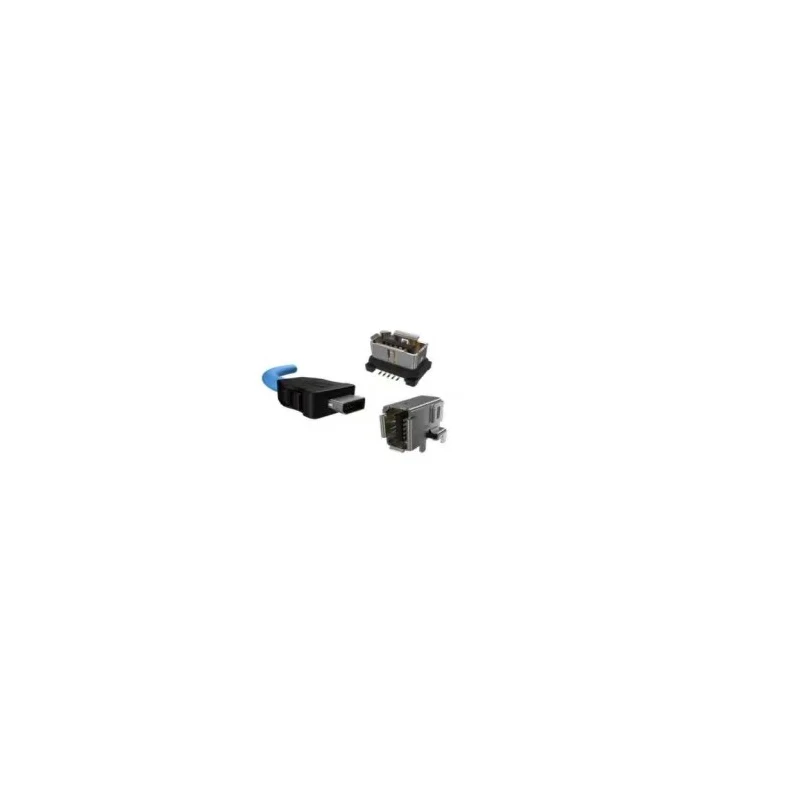

Amphenol Communications Solutions IX PCB Right Angle Mini I/O Connector Female Shielded ND9BS3200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Communications Solutions |
| Colour | Black |
| Orientation | Right Angle |
| Model | ND9BS3200 |
| IP Rating | IP20 |
| Connector Type | Receptacle |
| Mount Type | PCB |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | IX |
| Number Of Ports | 1 |
| Termination Type | Surface Mount |
| Shield Type | Shielded |
| Standards/Approvals | RoHS |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- This connector is right angle mounted on PCB for versatile application.
- It features a single port with female receptacle connector gender.
- The contact material is copper alloy ensuring reliable conductivity.
- Constructed with thermoplastic housing and surface mount termination.
- Rated IP20 for protection against solid objects.
- Complies with RoHS standards for environmental safety.
- Compatible with Industrial Ethernet and IoT protocols for high-speed data transmission.
- Provides PoE capability and meets Cat6A level for 10GBASE-T performance.
Product Description
Amphenol Communications Solutions ND9BS3200 is a Mini I/O Connector featuring a female receptacle design with shielded construction. It is designed for PCB mounting with a right angle orientation, optimizing board space and enhancing connection security.
This connector boasts a compact 10mm pitch, significantly smaller than traditional RJ45 connectors, allowing greater port density suitable for demanding industrial applications involving IoT connectivity and Ethernet communications.
The housing is made from UL94V-0 rated thermoplastic ensuring durable insulation, while copper alloy contacts are gold plated over nickel in the mating area to guarantee excellent conductivity and corrosion resistance.
The connector supports Power over Ethernet (PoE), complies with Cat6A levels supporting up to 10GBASE-T data rates, which means it can reliably handle high-speed data communication demands in industrial and manufacturing environments.
Its shielded design ensures superior electromagnetic interference (EMI) protection with 360° shielding through the mated pair, making it ideal for use in electrically noisy environments such as factory floors or industrial automation setups.
This Mini I/O Connector features a single port with female connector gender configured to mount on PCB surfaces using surface mount technology. Rated IP20 for protection against solid objects and suitable for indoor electronic and networking component integration.
Black color housing offers aesthetic compatibility with various PCB assemblies. Compliant with the Restriction of Hazardous Substances (RoHS) directive for environmentally safe manufacturing standards. Country of origin is China.
This connector is apt for industrial, manufacturing, and network infrastructure applications requiring compact, reliable, and shielded I/O connections. It facilitates enhanced data communication, ideal for automation, network equipment, and IoT device integration.
Explore more connectors and electronic components at EnvMart to find the optimal solutions for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ND9BS3200 connector features a right angle orientation, designed for PCB mounting.
This model has an IP20 rating, providing protection against solid objects but not against water.
It has a thermoplastic housing and copper alloy contacts, which are gold plated over nickel in the mating area for enhanced conductivity and corrosion resistance.
This connector features a single port with a female receptacle design.
The ND9BS3200 utilizes surface mount termination, suitable for PCB applications.
It complies with RoHS standards, ensuring environmentally safe manufacturing practices.
The housing of this connector is black, providing aesthetic compatibility with various PCB assemblies.
This model features a shielded design with 360° shielding through the mated pair, offering protection against electromagnetic interference (EMI).
It supports Cat6A levels, capable of handling data rates up to 10GBASE-T, suitable for high-speed data communication.
This connector is designed for industrial, manufacturing, and network infrastructure applications that require compact and reliable I/O connections.
The connector is manufactured in China.
It has a female connector gender, designed for use with corresponding male connectors.
