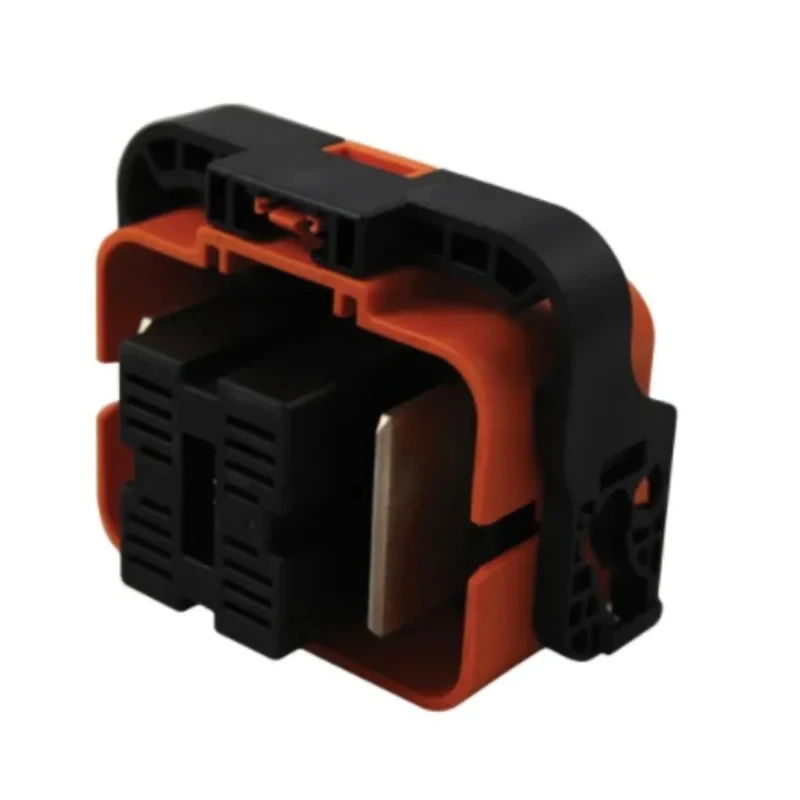

Amphenol Industrial Plug-In EV Service Disconnect For Use With HV Battery Pack 690V 450A MSDM4502

Amphenol Industrial MSDM4502 is a plug-in EV service disconnect designed specifically for use with high voltage (HV) battery packs in Plug In Hybrid Electric Vehicles (PHEVs). Rated for 690V voltage and 450A current, this manual service disconnect offers reliable high voltage battery isolation without requiring specialist tools.

This product features a robust design with high ingress protection ratings of IP67 and IP69K, providing durability and protection against dust and water ingress. It supports a wide operating temperature range from -40°C up to 70°C, suitable for diverse environmental conditions encountered in automotive applications.

The disconnect incorporates a high voltage interlock loop (HVIL) with a two-stage lever mechanism to ensure the HVIL circuit opens before separation of the high voltage contacts, enhancing safety during servicing. The manual, plug-in connector ensures fast and secure engagement with mating connectors, designed for over 50 mating cycles for extended service life.

Mounting is done via flange type, and the connector and contact genders are male, both with a bright orange color for easy identification. The straight orientation of the connector facilitates installation and maintenance.

This EV service disconnect complies with industry standards USCAR-2, USCAER-37, and LV-215, addressing performance and safety requirements for automotive electrical connectors.

The product supports sustainable technology initiatives as a Renewable Energy Solution under the RS Better World program, focusing on energy efficiency and carbon reduction in electric vehicle applications.

High ingress protection with IP67 and IP69K ratings. Wide operating temperature range of -40°C to 70°C. Manual plug-in termination method for reliable connection. Two-stage lever HVIL mechanism for enhanced safety. Durable design with over 50 mating cycles.

Flange mount type for stable installation. Compliant with USCAR-2, USCAER-37, LV-215 standards. Bright orange color and straight orientation for clear identification. Supports HV battery pack isolation for PHEV applications.

This Amphenol Industrial EV Service Disconnect MSDM4502 is ideal for automotive manufacturing, laboratory testing of battery packs, electric vehicle repair and maintenance shops, and renewable energy system integrators. It combines safety, durability, and high performance to meet the rigorous demands of electric mobility infrastructure.
