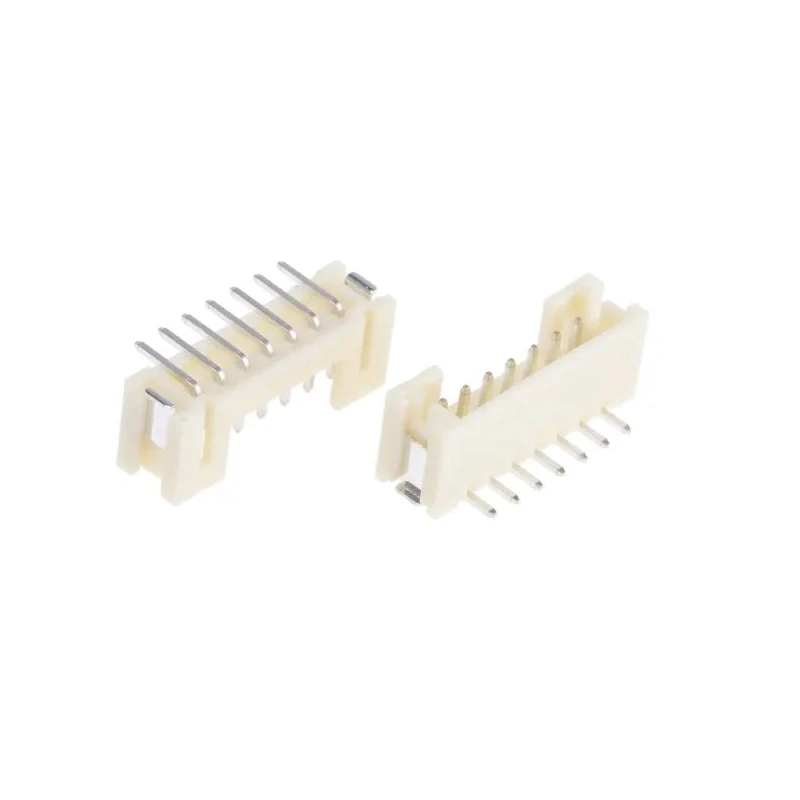

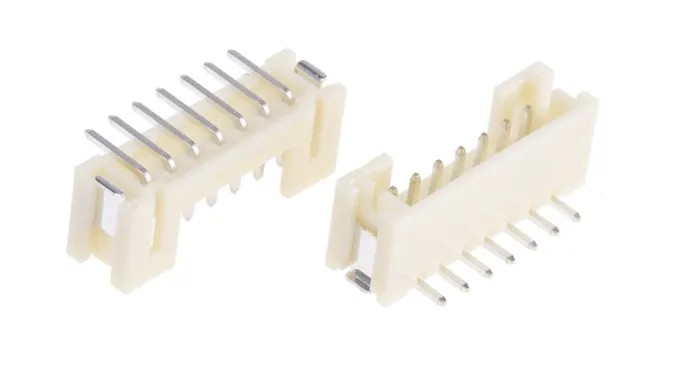

JST PH Series Straight Surface PCB Header 7 Contact 2 mm Pitch 1 Row Shrouded B7B-PH-SM4-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Straight Surface PCB Header 7 Contact 2 mm Pitch 1 Row Shrouded B7B-PH-SM4-TB(LF)(SN)



Category PCB Connectors Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Straight
Current	2A
Model	B7B-PH-SM4-TB(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Compact and highly reliable design suitable for PCB connections.
Current rating of 2 A ensures stable electrical performance.
Fully shrouded header for enhanced protection and connection security.
Surface mount model with low insertion force and solder termination.
Operating temperature range from -25°C to 85°C ensures durability in various environments.
Housing made from polyamide with male copper alloy contacts plated with tin.
Supports wire sizes from 32 AWG to 24 AWG for flexible wiring options.

Product Description

JST B7B-PH-SM4-TB(LF)(SN) PH Series Straight Surface PCB Header is a 7-contact, 2 mm pitch, 1 row, fully shrouded component designed for wire-to-board connections in electrical and electronic assemblies.

This surface mount PCB header provides a highly compact and reliable connection system that balances performance and cost efficiency. Featuring a polyamide housing with male copper alloy contacts plated in tin, it offers excellent conductivity and corrosion resistance.

Rated for 2 A current and 100 V voltage, it is suitable for a wide range of industrial and commercial applications. The device operates reliably within a temperature range from -25°C to 85°C, ensuring functionality in demanding operational environments.

The solder termination type and low insertion force make it ideal for automated PCB assembly processes, improving production efficiency. Its shrouded design protects the contacts and prevents accidental disconnection or damage during handling and use.

This JST PH Series header supports wire-to-board mounting with a single row layout and 2 mm pitch, making it suitable for connection of internal wires to printed circuit boards in consumer electronics, industrial equipment, and automotive electronics.

Compact and reliable 7-contact configuration. Shrouded housing for secure electrical connections. Surface mount with solder termination for PCB assembly. Rated 2 A current and 100 V voltage for stable operation. Polyamide housing with tin-plated copper alloy contacts.

Operating temperature from -25°C to 85°C for wide application range. Low insertion force top entry design for ease of use.

This product is well suited for use in electronic manufacturing, industrial control systems, communication devices, and automotive electronics where compact and reliable PCB connection headers are indispensable.

Explore more PCB Connectors and related electronic components in the Electronics & Electricals category on EnvMart.
