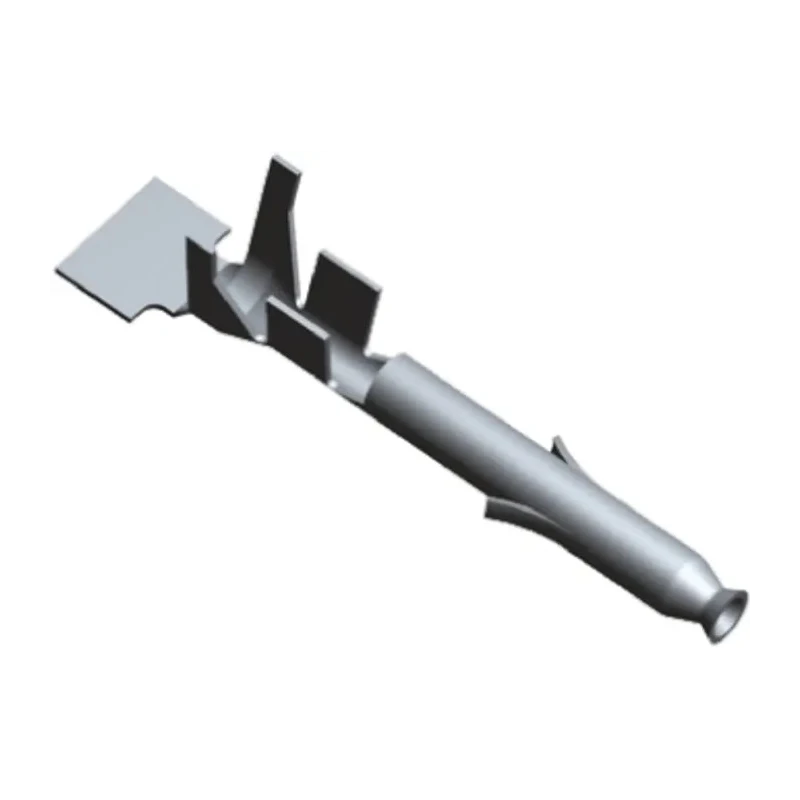

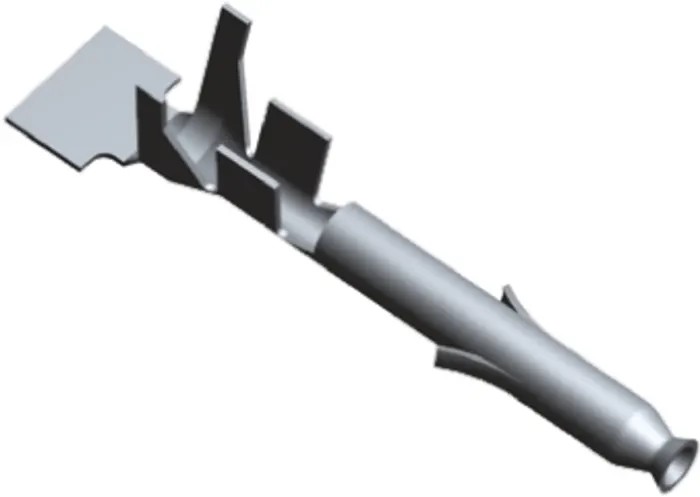

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 11.2A 22-18 AWG Gold Plated 1-770904-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 11.2A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with Mini-Universal MATE-N-LOK Connector Housing.
- Gold-plated contact ensures durable and reliable connectivity.
- Phosphor bronze contact material offers excellent corrosion resistance.
- Crimp termination type provides secure electrical connection.
- Operates efficiently between -55°C and 125°C.
- Maximum contact resistance of 20 milliohms.
- Industry standard series for professional electronic applications.
Product Description
TE Connectivity 1-770904-1 Mini-Universal MATE-N-LOK Series Female Crimp Terminal is a high-quality connector contact designed for reliable electrical connections in various industrial and commercial electronic applications. Rated at 11.2 amperes, it accommodates wire gauges from 22 AWG minimum to 18 AWG maximum. The gold plating on the contacts enhances signal integrity and reduces oxidation, while the phosphor bronze material ensures mechanical resilience and corrosion resistance.
The terminal is engineered for crimp termination, delivering secure mechanical and electrical bonding with the wire, suitable for use within Mini-Universal MATE-N-LOK Connector Housings. It operates effectively under a temperature range of -55°C to 125°C, making it adaptable to demanding environments.
This component is well suited for applications in industrial electronics, manufacturing equipment, HVAC systems, automotive electronics, and telecommunications where reliable wire-to-wire connections are critical. Its precision construction guarantees minimal contact resistance of 20 milliohms, ensuring optimal electrical performance.
TE Connectivity ensures all components are manufactured with strict quality control and conform to industry standards, although this specific model does not carry formal certification approvals.
Compatible with Mini-Universal MATE-N-LOK Connector Housing. Gold-plated contact ensures durable and reliable connectivity. Phosphor bronze contact material offers excellent corrosion resistance. Crimp termination type provides secure electrical connection.
Operates efficiently between -55°C and 125°C. Maximum contact resistance of 20 milliohms. Industry standard series for professional electronic applications.
This product is ideal for engineers and professionals engaged in the design, repair, and manufacturing of electronic devices requiring secure and durable connector contacts. Browse the Electronics & Electricals category at EnvMart for compatible connector housings and related parts.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal is rated for a maximum current of 11.2 amperes.
It accommodates wire gauges from 22 AWG minimum to 18 AWG maximum.
It operates efficiently between -55°C and 125°C.
This terminal uses a crimp termination type for secure electrical connections.
The contact is made of phosphor bronze, which offers excellent corrosion resistance.
The maximum contact resistance is 20 milliohms.
It is compatible with Mini-Universal MATE-N-LOK Connector Housing.
This terminal is suitable for industrial electronics, manufacturing equipment, HVAC systems, automotive electronics, and telecommunications.
The contacts are gold-plated to enhance signal integrity and reduce oxidation.
The product is manufactured in India.
Crimp termination provides a secure mechanical and electrical bond with the wire, ensuring reliable connectivity.
This terminal belongs to the Mini-Universal MATE-N-LOK series.
