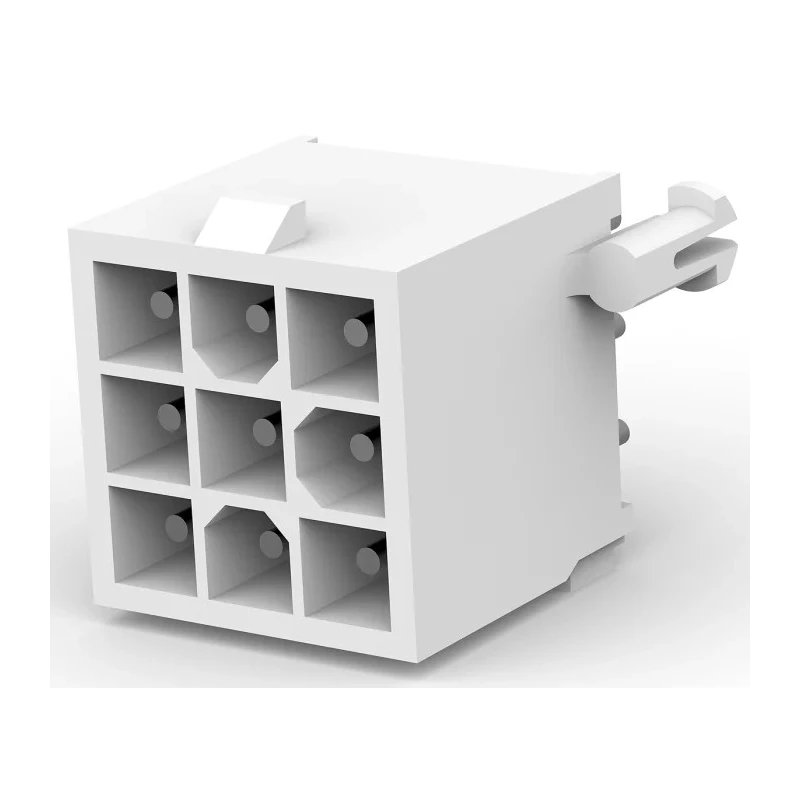

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 9 Contact 4.14 mm Pitch 3 Row 1-770182-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Constructed with durable nylon housing for reliability.
- Designed with brass contacts plated in tin for effective conductivity.
- Features a straight orientation and through-hole mount type for PCB integration.
- Rated for 9.5A current and 600V voltage handling capacity.
- Operates within a temperature range of -55°C to 105°C for diverse environments.
- Incorporates a positive locking latch and shrouded design for secure connections.
- Tail pin length measures 3.69 mm ensuring proper solder termination.
- Complies with no specific standards or approvals.
Product Description
TE Connectivity 1-770182-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is engineered for robust wire-to-board connections in demanding industrial and electronic applications. Featuring 9 brass male contacts plated with tin and housed in a white UL94V-0 nylon, this connector offers secure mating via its positive locking latch and a shrouded design enhancing reliability.
The connector supports a 4.14 mm pitch across 3 rows, facilitating compact yet efficient PCB integration through its through-hole mounting. Rated for a current of 9.5A and voltage up to 600V, it operates reliably in temperatures from -55°C to 105°C, suitable for harsh environmental conditions in manufacturing, construction, and electrical industries.
Its tail pin length of 3.69 mm ensures optimal soldering termination, and the product does not have specific certifications but meets the functional needs of professional electronic assemblies. This connector is part of the Mini-Universal MATE-N-LOK Series and is versatile for various wiring and board-mounting applications.
Constructed with durable nylon housing for reliability. Brass contacts with tin plating ensure excellent conductivity. Straight orientation and through-hole mounting for solid PCB fitment. Supports 9.5A current and 600V voltage suitable for industrial use.
Operating temperature range of -55°C to 105°C for diverse conditions. Positive locking latch adds secure connection safety. Shrouded design reduces accidental disconnection risks. Tail pin length of 3.69 mm for precise soldering termination.
Ideal for wire-to-board electronic connector applications.
These connectors are widely used in electronic manufacturing, electrical equipment assembly, and automation systems where reliable and durable wire-to-board connectivity is essential. Browse EnvMart for other TE Connectivity products and PCB connector solutions.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 9.5A, making it suitable for various industrial applications.
It has a voltage handling capacity of 600V, allowing it to be used in high-voltage applications.
The connector operates reliably within a temperature range of -55°C to 105°C, suitable for diverse environments.
This unit features 9 contacts, providing multiple connection points for wire-to-board applications.
It utilizes a through-hole mounting type, which facilitates secure integration onto PCBs.
The tail pin length measures 3.69 mm, ensuring proper solder termination during installation.
The housing is made from nylon, and the contacts are brass plated with tin for effective conductivity.
Yes, it incorporates a positive locking latch that enhances connection security and reduces accidental disconnections.
The pitch of this connector is 4.14 mm, which allows for compact and efficient PCB design.
This model features a shrouded design, which helps to prevent accidental disconnections during use.
It is part of the Mini-Universal MATE-N-LOK Series, designed for robust wire-to-board connections.
The country of origin for this product is India, indicating its manufacturing location.
