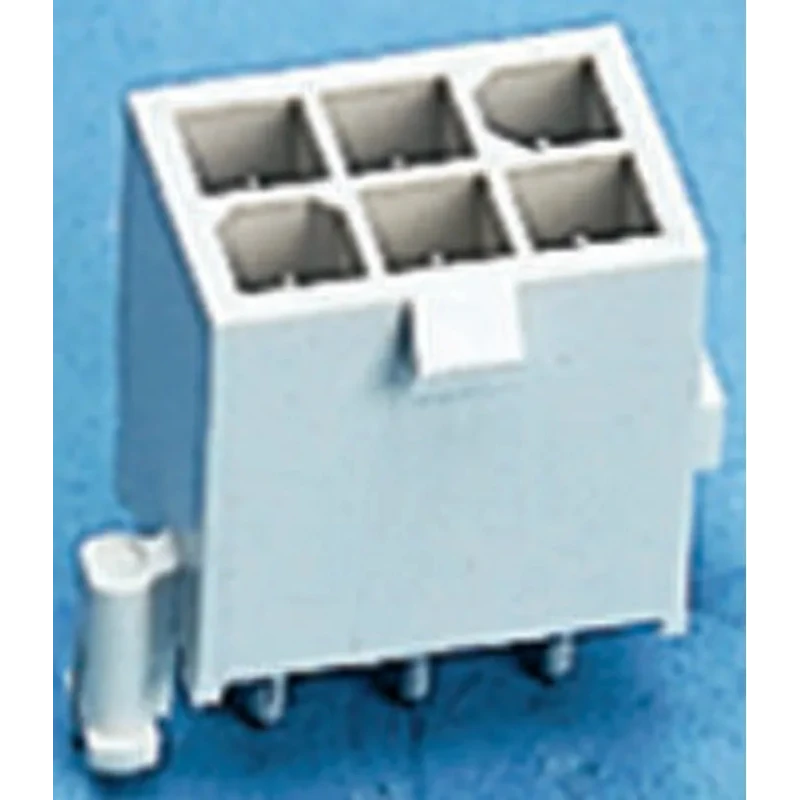

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 8 Contact(s), 4.14 mm Pitch, 2 1-794073-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with durable nylon housing rated UL94V-0 for safety and reliability.
- Features 8 brass male contacts plated with tin for corrosion resistance.
- Designed for through-hole mounting with a pitch of 4.14 mm and 2 rows.
- Operates safely up to 600 volts and 9.5 amperes of current.
- Includes a positive locking latch mechanism to ensure secure mating and PCB retention.
- Operates reliably in temperatures ranging from -20°C to 105°C.
- Widely used in wire-to-board applications requiring stable electrical connections.
- Shrouded connector system enhances safety and prevents incorrect mating.
Product Description
TE Connectivity 1-794073-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is engineered for reliable wire-to-board electrical connections in demanding industrial and electronic applications. This connector features 8 male brass contacts with tin plating, arranged in 2 rows at a 4.14 mm pitch to ensure precise and secure mating with compatible plug housings.
The housing is made of white UL94V-0 rated nylon that provides flame retardant properties and robust physical protection. Its shrouded design includes a positive locking latch mechanism for secure engagement and integrated board locks to facilitate PCB retention and stability during operation.
Designed for through-hole mounting, the connector supports an operating voltage of up to 600 V and current rating of 9.5 A, suitable for a wide range of power and signal transmission applications. It operates reliably across a temperature range of -20°C to 105°C ensuring performance stability in industrial, laboratory, construction, and manufacturing environments.
The Mini-Universal MATE-N-LOK system allows for easy interface with matching plug housings and socket contacts, supporting modular design and maintenance. Advantages include secure electrical contact, ease of assembly, and environmental durability.
Durable nylon housing with UL94V-0 rating for flame resistance. 8 brass tin-plated male contacts arranged in 2 rows. 4.14 mm pitch and through-hole mounting for PCB integration. Positive locking latch mechanism for secure connection.
Operating voltage up to 600 V and current rating of 9.5 A. Wide temperature operation from -20°C to 105°C. Shrouded connector system enhances safety and prevents mismating. Ideal for wire-to-board applications across electronic and industrial sectors.
This connector is essential for applications requiring secure, high-quality wire-to-board electrical interfaces. For browsing similar connectors and related products, explore the Connectors category on EnvMart.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 600 volts.
This header features 8 brass male contacts.
The current rating for this connector is 9.5 amperes.
The pitch size of this model is 4.14 mm.
The housing is made of nylon, and the contacts are brass with tin plating for corrosion resistance.
It operates reliably in temperatures ranging from -20°C to 105°C.
This model is designed for through-hole mounting.
Yes, it includes a positive locking latch mechanism to ensure secure mating and PCB retention.
The termination type for this connector is solder.
This header is a shrouded connector, which enhances safety and prevents incorrect mating.
This connector belongs to the Mini-Universal MATE-N-LOK series.
It is widely used in wire-to-board applications requiring stable electrical connections.
