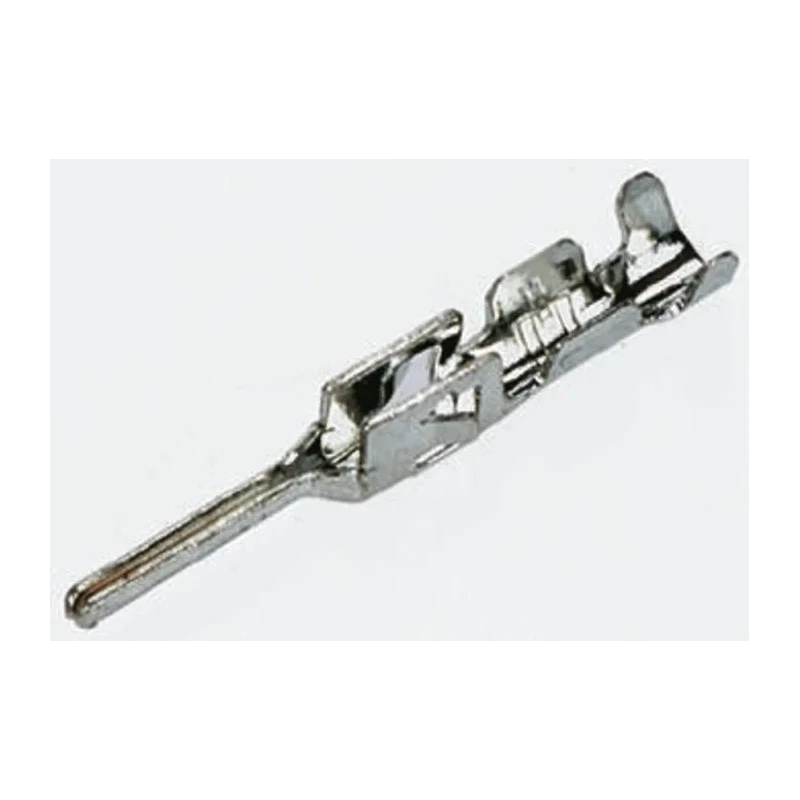

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal for 26-22 AWG Wire, Tin-Plated Brass Contact 770985-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 16.74mm |
| Model | 770985-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- This male crimp terminal supports wire sizes from 26 AWG to 22 AWG.
- The brass contact is tin-plated for enhanced corrosion resistance.
- It operates safely at currents up to 3A.
- The terminal length is precisely 16.74 mm ensuring secure connections.
- Designed for use with Mini-Universal MATE-N-LOK connector housings.
- It operates reliably between -30°C and 105°C temperature range.
- Termination is by crimp ensuring a solid mechanical and electrical connection.
- Maximum contact resistance is rated at 20 milliohms.
Product Description
TE Connectivity 770985-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal is a precision-engineered connector contact designed for secure and reliable electrical connections. Ideal for electronics manufacturing, wiring harness installations, and industrial applications where consistent electrical performance is paramount.
This crimp terminal is engineered to interface with Mini-Universal MATE-N-LOK connector housings and accepts wire sizes ranging from 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²). The brass material with tin plating offers excellent conductivity and corrosion resistance, ensuring durability in harsh environments.
Rated for continuous current of 3 amperes, it supports moderate power requirements in audio, automotive, and industrial control systems. The contact features a low maximum resistance of 20 milliohms to minimize voltage loss and heat generation.
Designed for use in temperatures from -30°C up to 105°C, the terminal maintains reliable performance over a broad range of operating conditions. Termination by crimp method guarantees strong mechanical retention of the wire and robust electrical contact, critical for industrial, laboratory, and commercial applications.
This male crimp terminal supports wire sizes from 26 AWG to 22 AWG. Brass contact material with tin plating for corrosion resistance. Safe operation at currents up to 3A. Precision terminal length of 16.74 mm. Compatible with Mini-Universal MATE-N-LOK connector housings.
Operating temperature range from -30°C to 105°C. Termination type: Crimp ensuring secure wire attachment. Maximum contact resistance rated at 20 milliohms.
This terminal is widely used in electronics assembly, automotive wiring harnesses, communication equipment, and general electrical installations requiring reliable connector contacts. It is suitable for industrial, laboratory, manufacturing, and commercial electrical systems.
Explore more reliable electronic connectors and terminals through EnvMart to support your next design or production requirement.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This male crimp terminal is rated for continuous current of up to 3A.
It supports wire sizes ranging from 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²).
The maximum contact resistance is rated at 20 milliohms.
It operates reliably between -30°C and 105°C.
The terminal length is precisely 16.74 mm.
Termination is achieved through a crimp method, ensuring a strong mechanical and electrical connection.
The contact material is brass, which is tin-plated for enhanced corrosion resistance.
It is designed for use with Mini-Universal MATE-N-LOK connector housings.
This terminal is suitable for electronics assembly, automotive wiring harnesses, and general electrical installations.
This terminal is a male crimp terminal.
The country of origin for this terminal is India.
The tin plating on the brass contact provides enhanced corrosion resistance, improving durability in various environments.
