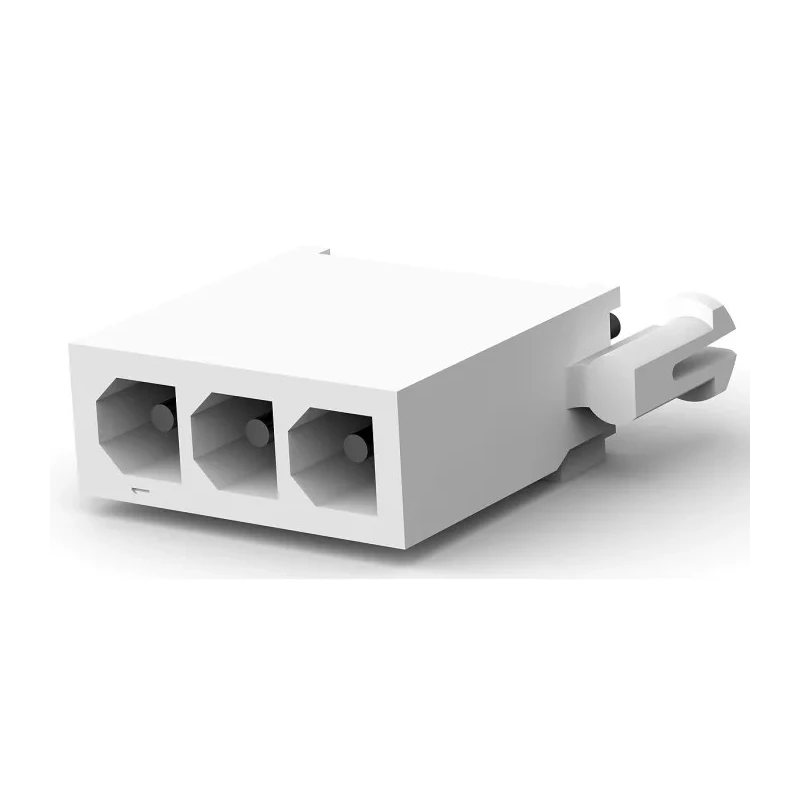

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 3 Contact 4.14 mm Pitch 1 Row 1-770170-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- The connector features a shrouded housing made of durable nylon material.
- It supports a maximum current of 9.5A and operates at voltages up to 600V.
- Contact gender is male with brass contacts plated in tin for reliable conductivity.
- The header has one straight row of pins and a tail pin length of 3.69 mm for secure solder termination.
- Operating temperature ranges from -55°C to 105°C, suitable for harsh environments.
- The connector uses a positive locking latch mechanism for secure mating and PCB retention.
- Designed for wire-to-board applications with through hole mounting type for stability.
Product Description
TE Connectivity 1-770170-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is a high-quality connector designed for electronic wire-to-board applications. It features 3 male pin contacts arranged in a single row with a 4.14 mm pitch, optimized for reliable PCB insertion and connection.
The housing is constructed from UL94V-0 rated white nylon providing excellent flame resistance and durability. The connector includes a shrouded design with a positive locking latch mechanism that ensures secure mating with compatible counterparts and solid retention on the printed circuit board.
Brass contacts plated with tin provide corrosion resistance and ensure stable electrical conductivity capable of handling currents up to 9.5 amperes and voltages as high as 600 volts. The tail pin length of 3.69 mm facilitates effective solder termination on PCBs, while the straight orientation supports efficient assembly in compact electronic devices.
Its wide operating temperature range from -55°C to 105°C makes this connector suitable for industrial, automotive, HVAC, and consumer electronics environments requiring robust performance under variable conditions.
This Mini-Universal MATE-N-LOK header series includes versatile options with or without drain holes for enhanced electrical isolation and design flexibility. It complements a wide range of mating plug housings employing socket contacts.
The connector housing is made of flame-retardant nylon material. Compact 3-contact design with 4.14 mm pitch enables reliable connectivity. Supports currents up to 9.5A and voltages up to 600V for demanding applications.
Shrouded with a positive locking latch ensures secure mating and PCB retention. Wide temperature range supports industrial and commercial uses. Through hole mounting and solder termination type provide mechanical stability.
Ideal for wire-to-board interconnect solutions in various electronic sectors. Explore more connectors and accessories from TE Connectivity and other top brands in the Electronics & Electricals category at EnvMart for your PCB and manufacturing requirements.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current of 9.5A.
It operates at voltages up to 600V.
The pitch size of the contacts is 4.14 mm.
This model features 3 male pin contacts.
The tail pin length is 3.69 mm, facilitating effective solder termination.
It uses a through hole mounting type for stability.
The housing is made of nylon, and the contacts are brass plated with tin.
It operates within a temperature range of -55°C to 105°C.
Yes, it includes a positive locking latch mechanism for secure mating and PCB retention.
This connector is shrouded, providing additional protection and stability.
The connector is manufactured in India.
