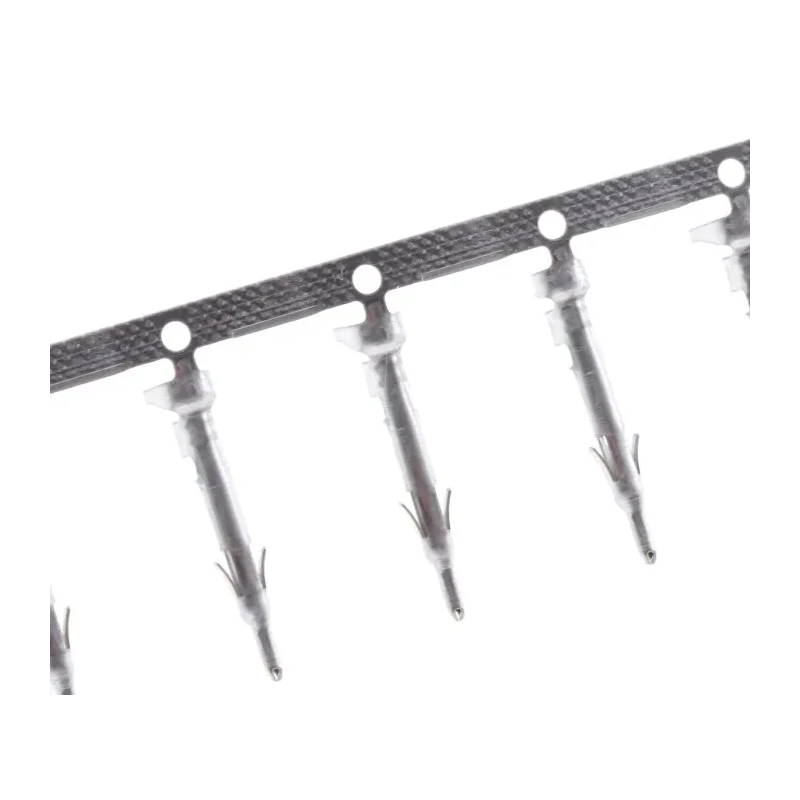

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A 22-18 AWG 17.04mm Length 770903-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A 22-18 AWG 17.04mm Length 770903-1
Brand: TE Connectivity
SKU: 349535
Price: 0.18 USD
Availability: InStock



Category PCB Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Current	3A
Length	17.04mm
Model	770903-1
Gender	Male
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.9mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from brass with tin plating ensuring reliable conductivity and corrosion resistance.
Designed for Mini-Universal MATE-N-LOK connector housing compatibility.
Provides a low maximum contact resistance of 20 milliohms for efficient electrical performance.
Operates reliably in temperature ranges from -55°C to 105°C.
Termination is via crimp method optimized for wire sizes 0.3mm² to 0.9mm².
Male gender connector design suitable for precise applications.
Overall length of the terminal is 17.04 millimeters for compact fitment.
Manufactured in the United States under new product condition standards.

Product Description

TE Connectivity 770903-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal is a precision engineered electrical connector component designed to support secure, high quality wire terminations in industrial, commercial, and electronic applications.

This male crimp terminal supports miniature wire gauges from 22 AWG (0.3mm²) up to 18 AWG (0.9mm²), carrying currents up to 3 Amps. Its brass construction with tin plating ensures excellent conductivity and durability, while its low maximum contact resistance of 20 milliohms reduces energy losses and maintains electrical integrity.

The terminal is intended for use with the Mini-Universal MATE-N-LOK connector housing series, featuring a crimp termination designed for efficiency and reliability. The terminal is compact with a precision length of 17.04 millimeters, facilitating use in dense PCB layouts and wiring harness assemblies.

Operating temperature tolerance ranges from -55°C to 105°C, making it suitable for diverse environments including industrial automation, instrumentation, automotive electrical systems, and telecommunications.

This product is manufactured in the United States and is supplied under new condition standards. It is essential for users requiring robust male crimp contacts for Mini-Universal MATE-N-LOK connector systems.

Constructed from brass with tin plating ensuring reliable conductivity and corrosion resistance. Compatible with Mini-Universal MATE-N-LOK connector housings. Supports 3 Amp current rating suitable for moderate power applications.

Low maximum contact resistance of 20 milliohms to guarantee efficient electrical performance. Operational temperature range from -55°C to 105°C for versatile use. Crimp termination type optimized for wire sizes 22 AWG to 18 AWG.

Male gender configuration for connector mating systems. Compact 17.04mm length fits various electronic and industrial assemblies. Manufactured in the United States under new standards ensuring quality. Ideal for use in industrial electrical systems, laboratory equipment, manufacturing automation, telecommunications, and general electronics requiring reliable PCB connectivity.

Browse more high-quality connectors and accessories from TE Connectivity on EnvMart for dependable industrial and electronic component solutions.

Explore more products in our PCB Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum current rating of this terminal is 3 Amps, making it suitable for moderate power applications.

This model is optimized for wire sizes ranging from 22 AWG (0.3mm²) to 18 AWG (0.9mm²).

The overall length of this terminal is 17.04 millimeters, allowing for compact fitment in various applications.

It is constructed from brass with tin plating, which ensures reliable conductivity and corrosion resistance.

The maximum contact resistance is 20 milliohms, which helps maintain efficient electrical performance.

This model operates reliably within a temperature range of -55°C to 105°C, suitable for diverse environments.

It is designed for compatibility with the Mini-Universal MATE-N-LOK connector housing series.

The terminal utilizes a crimp termination method, which is optimized for efficiency and reliability.

This terminal features a male gender configuration, suitable for precise applications in connector mating systems.

This product is manufactured in the United States under new condition standards.

It is suitable for use in industrial electrical systems, laboratory equipment, manufacturing automation, telecommunications, and general electronics requiring reliable PCB connectivity.

The tin plating on the brass construction provides corrosion resistance and ensures reliable conductivity, enhancing the terminal's performance.
