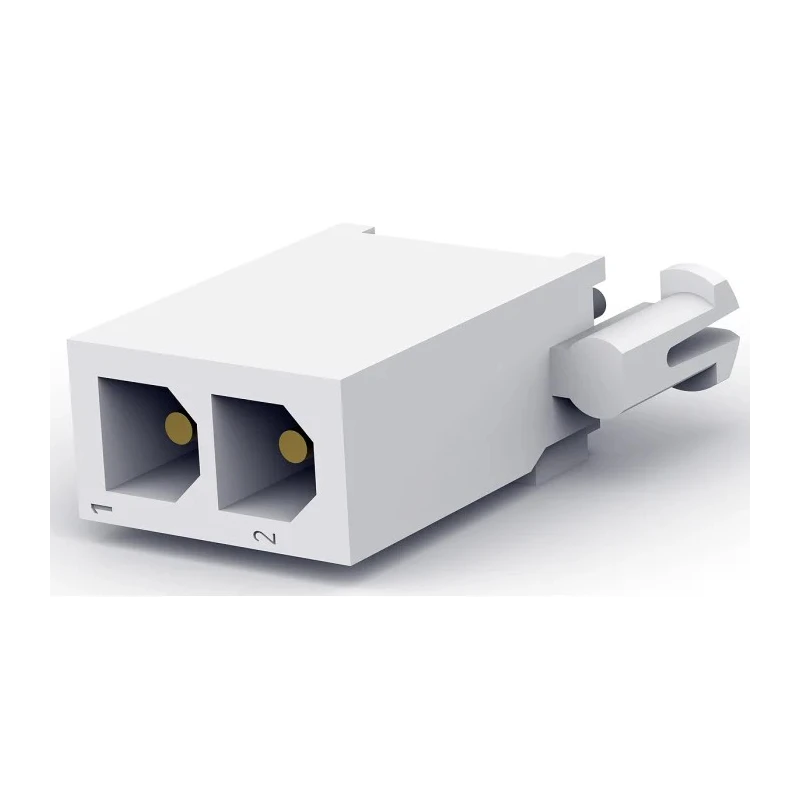

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 2 Contacts 4.14 mm Pitch 1 Row 1-770166-1

TE Connectivity 1-770166-1 Mini-Universal MATE-N-LOK Series straight through hole PCB header is a precision electrical connector designed to facilitate wire-to-board connections with exceptional reliability. This product features 2 gold-plated brass contacts arranged in a single row with a consistent pitch of 4.14 mm, ensuring stable and efficient electrical conduction suitable for demanding electronic assemblies.

The connector housing is manufactured from UL94V-0 rated nylon material, providing high resistance to heat and flame, and incorporates a shrouded design with a positive locking latch. This ensures both secure mating between connectors and effective board retention during operation, which is critical in applications subject to vibration or movement.

Operating temperature ranges from -55°C to 105°C accommodate various environmental conditions encountered in industrial, manufacturing, and laboratory environments. With a current rating of 9.5 A and a voltage rating of 600 V, the connector meets the performance needs for moderate power electronic applications.

The tail pins have a length of 3.69 mm with a solder termination type, optimized for through-hole PCB mounting styles, which ensures a robust mechanical and electrical connection. This connector is ideal for use in circuitry requiring reliable connector systems such as industrial control panels, electronic control units, and instrumentation devices.

TE Connectivity's Mini-Universal MATE-N-LOK series offers versatility with options including versions with or without drain holes for enhanced wiring flexibility. The series is suitable for professional electronic component assemblies where durability and secure connections are paramount.

Features a single row layout with shrouded nylon housing for secure connection. Constructed from brass contacts plated with gold for reliable conductivity. Supports a maximum current rating of 9.5A and voltage rating of 600V.

Operates in temperatures ranging from -55°C to 105°C ensuring durability. Tail pin length measures 3.69 mm with solder termination type for PCB mounting. Connector system is wire-to-board with straight orientation and through-hole mount.

Offers a positive locking latch mechanism for secure mating and PCB retention. Ideal for industrial, electronic, and manufacturing PCB applications.
