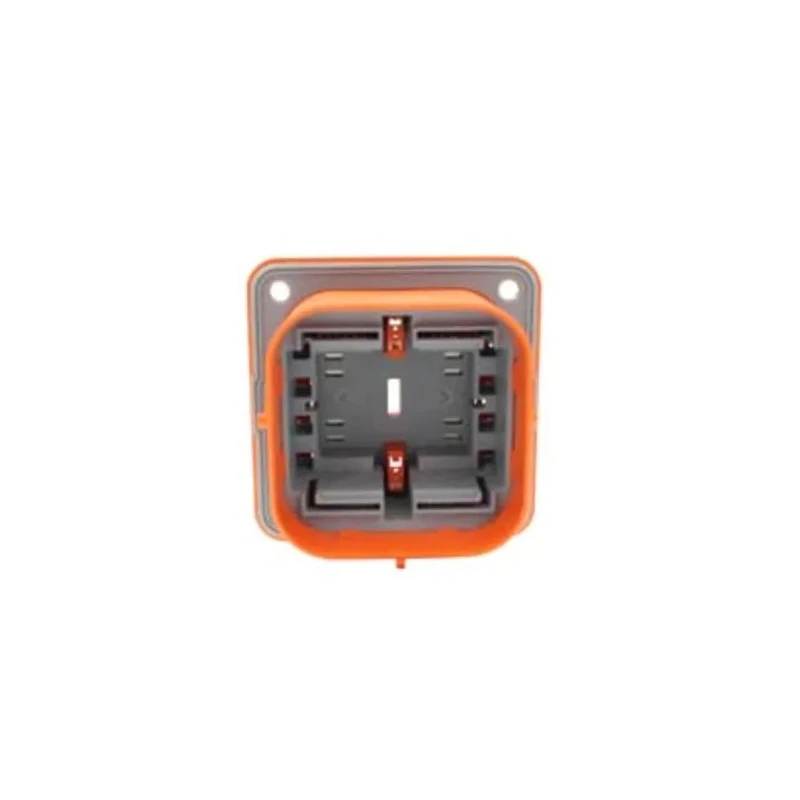

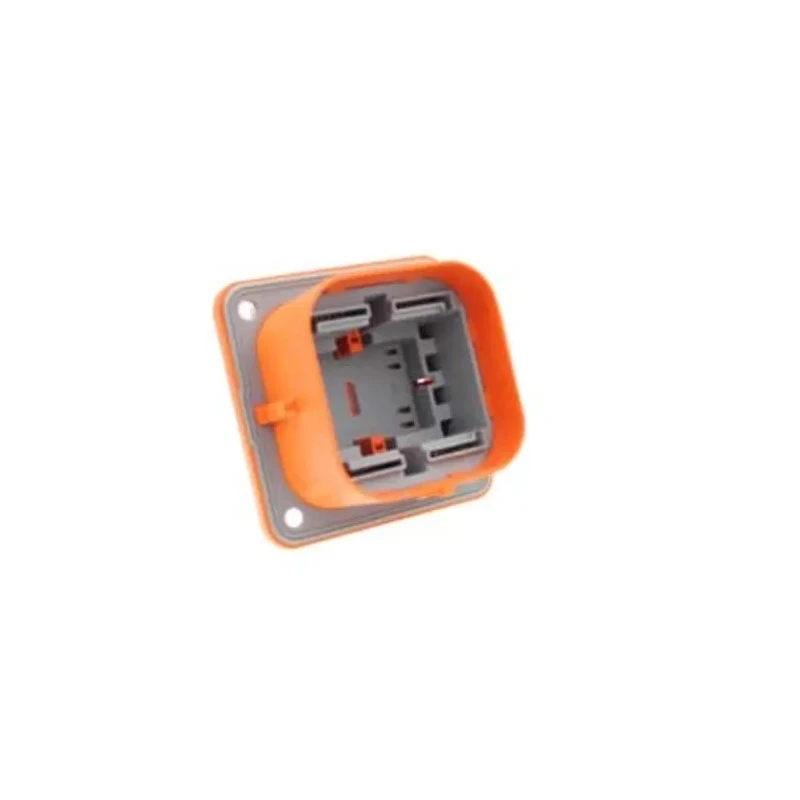

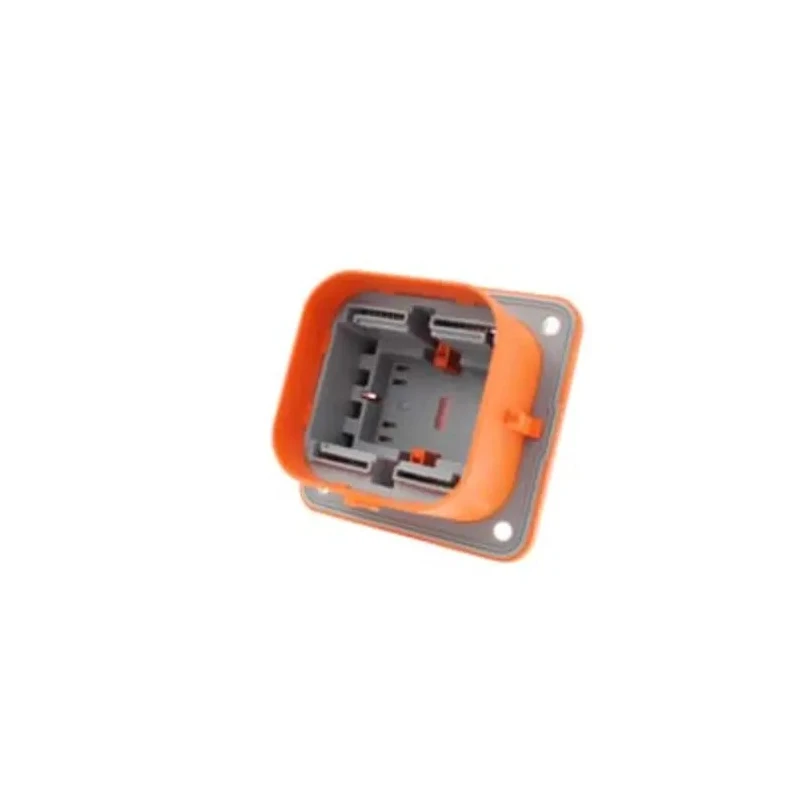

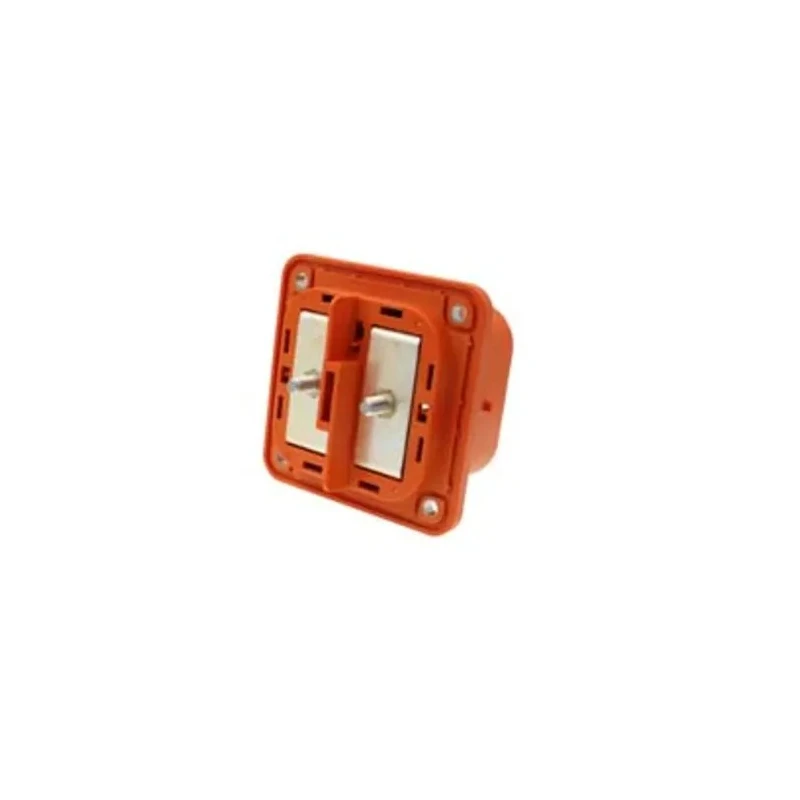

Amphenol Industrial Plug-In EV Service Disconnect For Use With HV Battery Pack 1000V 230A MSDF000F

Amphenol Industrial MSDF000F EV Service Disconnect is a robust manual plug-in disconnect device specifically designed for high voltage battery packs in Plug In Hybrid Electric Vehicles (PHEVs). Rated for 230 amps and 1000 volts, it features a High Voltage Interlock Loop (HVIL) that protects the battery pack by preventing accidental short circuits during servicing. Its flange mount design and straight orientation make it easy to integrate securely within the vehicle system.

The product is designed to withstand demanding operational conditions, with an operating temperature range of -40°C to 70°C and ingress protection ratings of IP69K and IP67, ensuring reliability against dust and water ingress. The durable construction supports over 50 mating cycles, making it a long-lasting solution in automotive maintenance environments.

The female connector and contact gender provide safe and secure connectivity, while the bright orange colour aids in quick identification during service operations. This disconnect switch complies with rigorous automotive standards including USCAR-2, USCAER-37, and LV-215, ensuring compatibility and safety in EV applications.

Compact dimensions of 110mm height, 110mm width, and 83mm depth make it suitable for integration within battery modules or other confined spaces. Made in Germany, the MSDF000F maintains quality standards suitable for industrial, automotive, manufacturing, and renewable energy sectors.

Designed for plug-in hybrid electric vehicle service disconnect with HVIL protection. High ingress protection ratings IP69K and IP67. Durability over 50 mating cycles. Operating temperature range -40°C to 70°C. Compliant with USCAR-2, USCAER-37, LV-215 standards.

Flange mount and straight orientation. Compact dimensions: 110mm x 110mm x 83mm. Orange colour for visibility during maintenance. Manufactured in Germany. Explore more products in EV Service Disconnects at EnvMart to find compatible and reliable components for your automotive and industrial needs.
