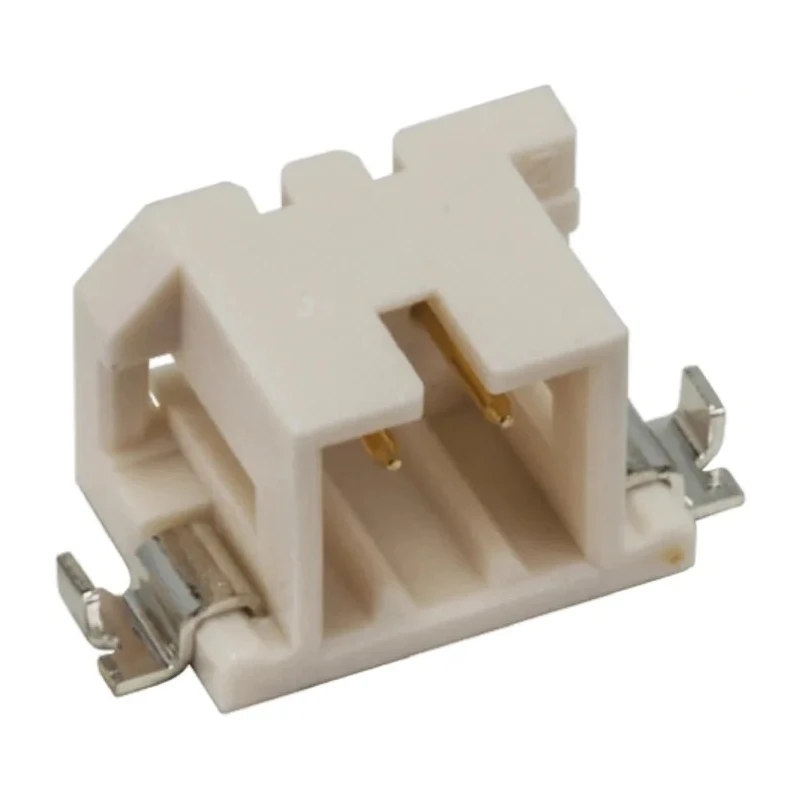

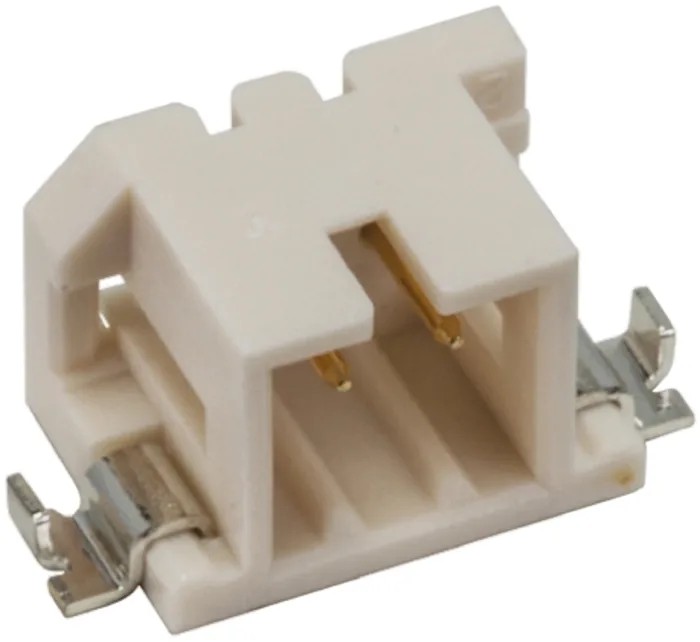

Hirose DF3 Series Right Angle Surface PCB Header, 2 Contacts, 2 mm Pitch, 1 Row, Shrouded DF3EA-2P-2H(51)

Hirose DF3EA-2P-2H(51) is a right angle surface mount PCB header connector from the DF3 series, featuring a 2.00 mm pitch, 2 contacts, and a single row configuration. This shrouded header is specifically designed with a low profile to fit compact electronic designs, providing robust electrical connections in applications like business equipment including copy machines and printers.

The housing is made of durable polyamide material, offering excellent electrical insulation and mechanical support. Brass contacts plated with gold ensure high conductivity and corrosion resistance. The friction locking mechanism guarantees a secure mating connection with the mating DF3 socket, minimizing the risk of disconnection during operation.

Equipped with PCB mounting bosses, the header allows accurate and repeatable positioning on the PCB during soldering processes. Reinforced metal fittings on both sides of the housing strengthen the attachment to the PCB, preventing peeling or mechanical stress on solder joints.

This connector supports board-to-board and wire-to-board connection systems and operates efficiently up to 3 A current and 250 V voltage. It withstands extreme operating temperatures ranging from -55°C to 105°C, making it suitable for demanding industrial and commercial environments.

The termination type is solder, and the contact gender is male, providing standardized electrical interfacing. The header is appropriate for use in industries requiring compact and reliable PCB connectors in electrical and electronic assemblies.

The PCB header has a low profile design suitable for surface mount assembly. It uses a friction locking mechanism to ensure secure and reliable mating with corresponding sockets. Constructed with polyamide housing and brass contacts plated with gold for durability and conductivity.

Supports a current rating of 3 A and operates at voltages up to 250 V. Designed with mounting bosses for precise PCB positioning during soldering. Reinforced metal fittings provide secure attachment to the PCB and prevent solder joint peeling.

The connector system supports board-to-board and wire-to-board connections. Operates reliably within temperature ranges from -55°C to +105°C. Male contact gender and solder termination type offer standardized interfacing.

Ideal for use in business equipment such as printers and copy machines. Explore our extensive range of PCB connectors and electronic components at EnvMart for all your industrial and commercial needs.
