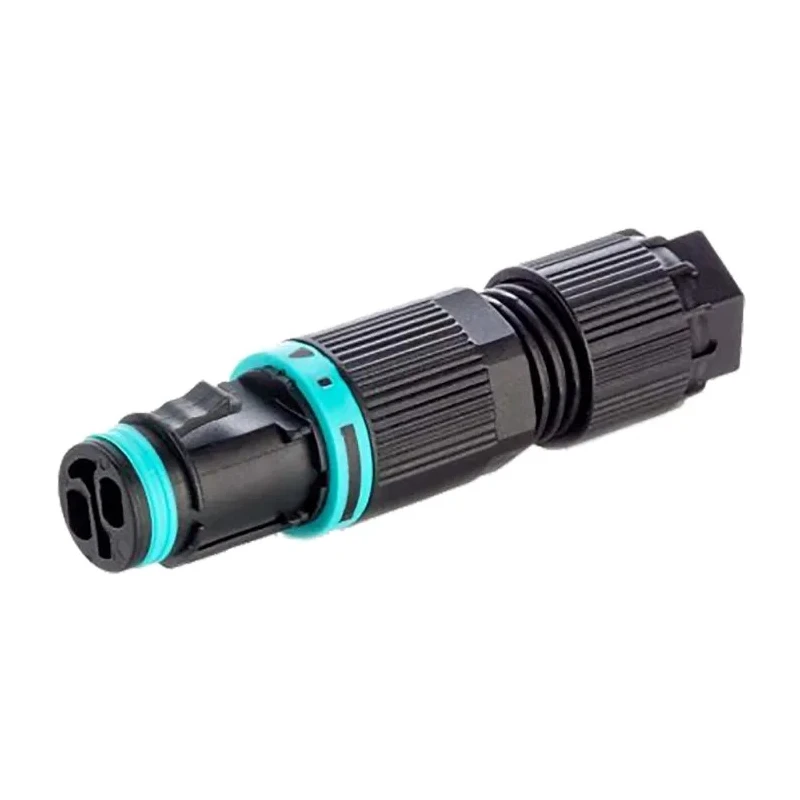

RS PRO Cable Tee Socket Female Screw 2-Pole 10A 1-Way IP68 400V RS PRO-136-9898

RS PRO 136-9898 Cable Tee Socket Female Screw 2-Pole 10A 1-Way IP68 Lighting Connector is engineered for use in industrial, commercial, and outdoor harsh environments requiring a durable electrical connection with waterproof capabilities.

This miniature 14 mm diameter connector offers exceptional protection with IP68 and IP69K ratings, ensuring resistance to dust, dirt ingress, permanent submersion in water up to 30 meters for 1 hour, and high-pressure water jets up to 100 bar at 16 L/min.

The push-pull coupling mechanism allows for quick, easy mating and reliable locking, which produces an audible click and a strong retention force up to 25 kg, preventing accidental disconnections even under opposing forces. Both quick release and locking versions are available for tailored safety and ease of use.

Manufactured with brass contacts plated in silver, this connector ensures excellent electrical conductivity and corrosion resistance. It supports a voltage rating of 400V and a current of 10A, suitable for lighting applications requiring robust and safe power connections.

Designed for cable mounting with screw termination, this tee socket connector is ideal for outdoor lighting solutions such as architectural lighting, street lighting, underwater lighting, illumination of road signs, billboards, and connection of interior and exterior Class 2 electrical devices.

Miniature design with 14 mm diameter. IP68 rating provides protection against dust and water immersion. IP69K rated to withstand high-pressure water jets. Push-pull coupling mechanism enables quick and easy mating. Retention force up to 25 kg prevents accidental disconnection.

Quick release model for easy uncoupling. Locking version provides additional safety with screwdriver release. Brass contacts with silver plating for reliable conductivity. Supports voltage up to 400V and current of 10A. Screw termination and cable mount for secure installation.

This product is widely employed in industrial, commercial, architectural, and marine environments, ensuring robust connectivity under demanding conditions. It is suitable for use in water treatment, manufacturing, and outdoor lighting installations.
