Hirose DF20 Series Right Angle Surface PCB Header, 10 Contacts, 1 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

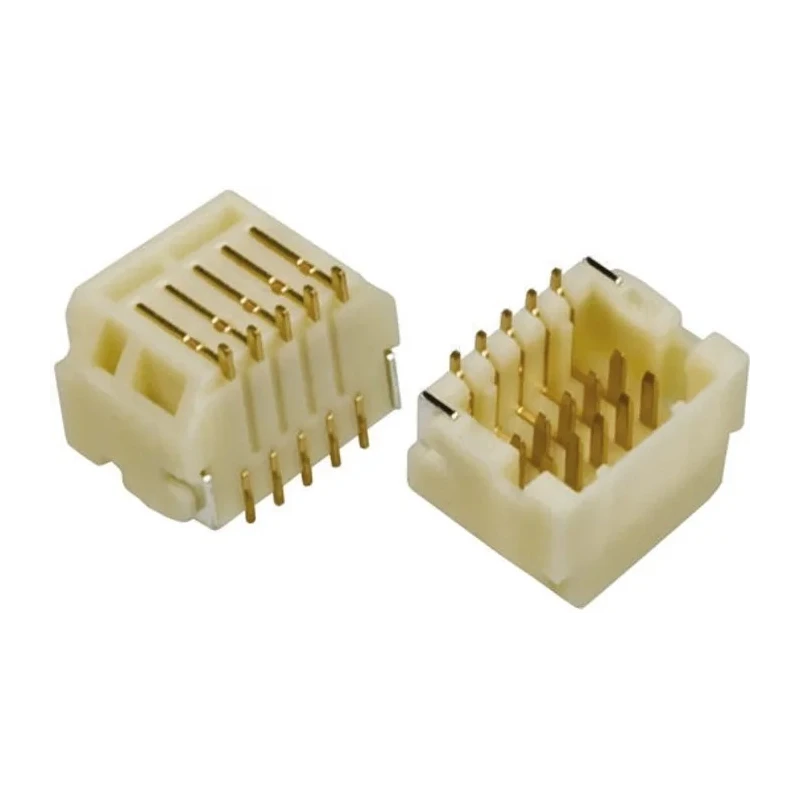

Hirose DF20 Series Right Angle Surface PCB Header, 10 Contacts, 1 mm Pitch, 2 Row, Shrouded

Name: Hirose DF20 Series Right Angle Surface PCB Header, 10 Contacts, 1 mm Pitch, 2 Row, Shrouded
Brand: Hirose
SKU: 211527
Price: 1.53 USD
Availability: InStock



Category PCB Connectors Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	100V
Brand	Hirose
Orientation	Right Angle
Current	1A
Model	DF20
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	DF20
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
Number of Rows	2
Pitch	1mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The shrouded, double-row configuration prevents mis-insertion and provides mechanical stability.
Housing is made of beige polyamide material with UL94V-0 flammability rating.
Contacts consist of copper alloy with tin plating for efficient electrical conduction.
Designed for surface mount technology with right-angle orientation for PCB installation.
Operates within a temperature range of -35°C to 85°C, suitable for industrial environments.
Supports operating voltage up to 100V and current rating of 1 ampere.
Low-profile design ensures a mating height of 5.8 mm above PCB surface.
Suitable for automated machinery insertion enhancing production efficiency.

Product Description

Hirose DF20F-10DP-1H(50) is a robust Right Angle Surface PCB Header from the DF20 series, designed for reliable wire-to-board connections in electronic applications. This double-row header features 10 male contacts spaced at 1 mm pitch, housed in a beige polyamide shell with UL94V-0 rating, ensuring resistance to flame and high durability.

The contact pins are made from copper alloy with tin plating which provides excellent conductivity and corrosion resistance. This connector is engineered for surface mount technology with a right-angle orientation to optimize PCB layout while minimizing height, with a mating height of just 5.8 mm.

With operating temperature range from -35°C to 85°C and voltage rating up to 100V at 1A current capacity, this product suits demanding industrial, automotive, and communication equipment applications.

The shrouded design mechanism prevents mis-insertion and enhances mechanical locking, ideal for automated assembly lines. The shrouded, double-row design prevents mis-insertion and ensures mechanical stability. Polyamide housing is flame retardant and durable for industrial use.

Copper alloy contacts with tin plating provide reliable electrical performance. Right-angle, surface-mount header with 10 contacts at 1 mm pitch. Operating temperature ranges from -35°C to 85°C supporting diverse environments.

Voltage rating of 100 volts and 1 ampere current capacity meet typical PCB requirements. Compact design with a mating height of 5.8 mm above PCB for space efficiency. Manufactured in Japan ensuring quality and compliance with demanding standards.

This Hirose PCB header is applicable in electronics manufacturing, automotive controls, industrial automation, communication devices, and other electrical systems requiring dependable PCB connectivity.

Explore more connectors and electronic components from Hirose and other brands at EnvMart for your industrial and commercial projects.
