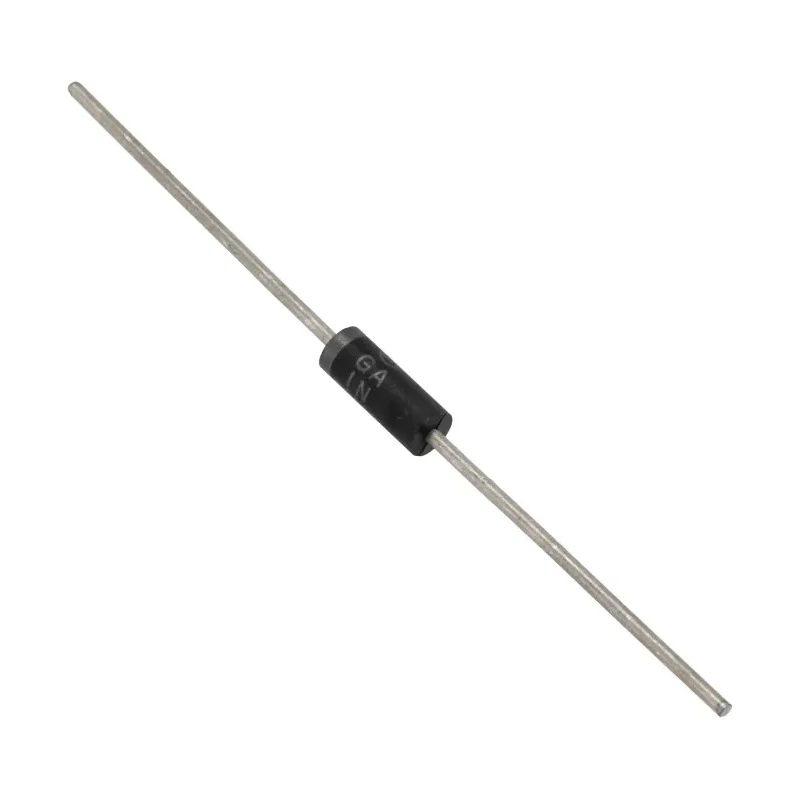

onsemi Zener Diode 180V 5W ±5% Through Hole 2-Pin DO-15 Voltage Regulator 1N5386BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5386BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 180V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 430Ω |
Key Features
- Nominal Zener voltage of 180V for precise voltage regulation applications.
- Maximum power dissipation rating of 5W for high-performance operation.
- ±5% Zener voltage tolerance for stable and accurate circuit performance.
- Through hole 2-pin DO-15 package ensures easy and robust mounting.
- Test current of 5mA and a maximum Zener impedance of 430 ohms.
- Reverse leakage current limited to 500nA for efficient operation.
- Operates across a wide temperature range, from -65°C to 200°C.
- Single-element construction for discrete circuit design applications.
Product Description
The onsemi 1N5386BG Zener Diode is a precision voltage regulator designed for demanding electronic applications that require stable voltage reference and over-voltage protection. With a nominal Zener voltage of 180V and a maximum power dissipation of 5W, this diode is suitable for high-reliability circuits in power supplies, measurement equipment, and industrial control systems.
Engineered with a ±5% Zener voltage tolerance, the 1N5386BG provides reliable voltage clamping and conditioning, making it ideal for safeguarding sensitive semiconductors from voltage transients and for use as a precision reference. The device features a single diode configuration in a compact and robust DO-15 through hole package with two pins, allowing for easy integration and excellent mechanical stability during assembly.
The 1N5386BG supports a test current of 5mA and boasts a maximum Zener impedance of 430 ohms. Its maximum reverse leakage current is restricted to 500nA, ensuring energy efficiency and minimal power loss in regulated voltage applications. The diode is built to withstand a broad temperature range, functioning reliably from -65°C up to 200°C, thus meeting the requirements of both harsh industrial and laboratory environments.
This zener diode belongs to the 5W Surmetic series (1N5364 to 1N5388) and is manufactured for high-performance voltage regulation. Applications include use in power management circuits, reference voltage sources, surge protection in instrumentation, and voltage division circuits, making it valuable in electronics, manufacturing, laboratory setups, and commercial equipment.
Key attributes include its through hole mount design, making it suitable for traditional PCB assemblies, and its compact dimensions (length 8.89mm, height 3.68mm) for space-constrained layouts. The 1N5386BG is an essential component for engineers seeking accuracy, repeatability, and robust electrical performance from their voltage regulation designs.
Discover more high-precision voltage regulating solutions and the complete Zener Diodes range from onsemi and top electronic component brands in the EnvMart Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 180V, making it suitable for precise voltage regulation applications.
The maximum power dissipation rating for the 1N5386BG is 5W, allowing for high-performance operation in various applications.
This Zener diode operates across a wide temperature range from -65°C to 200°C, making it suitable for both industrial and laboratory environments.
The maximum reverse leakage current is limited to 500nA, ensuring efficient operation in regulated voltage applications.
The maximum Zener impedance for the 1N5386BG is 430 ohms, which contributes to its performance in voltage regulation.
The test current for this model is 5mA, which is essential for its operation and performance characteristics.
This model comes in a DO-15 package type, which is a through hole design that ensures easy and robust mounting.
The dimensions of this Zener diode are 8.89mm in length and 3.68mm in height, making it compact for various applications.
This Zener diode features a 2-pin configuration, facilitating straightforward integration into electronic circuits.
The diode configuration for this model is single, designed for discrete circuit applications.
The 1N5386BG is part of the 5W Surmetic series, which includes models ranging from 1N5364 to 1N5388.
The country of origin for this Zener diode is India, reflecting its manufacturing location.
