| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.91mm |
| Length | 4.56mm |
| Model | 1N5237BTR |
| Mount Type | Through Hole |
| Series | 1N52 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 3μA |
| Nominal Zener Voltage Vz | 8.2V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 8Ω |

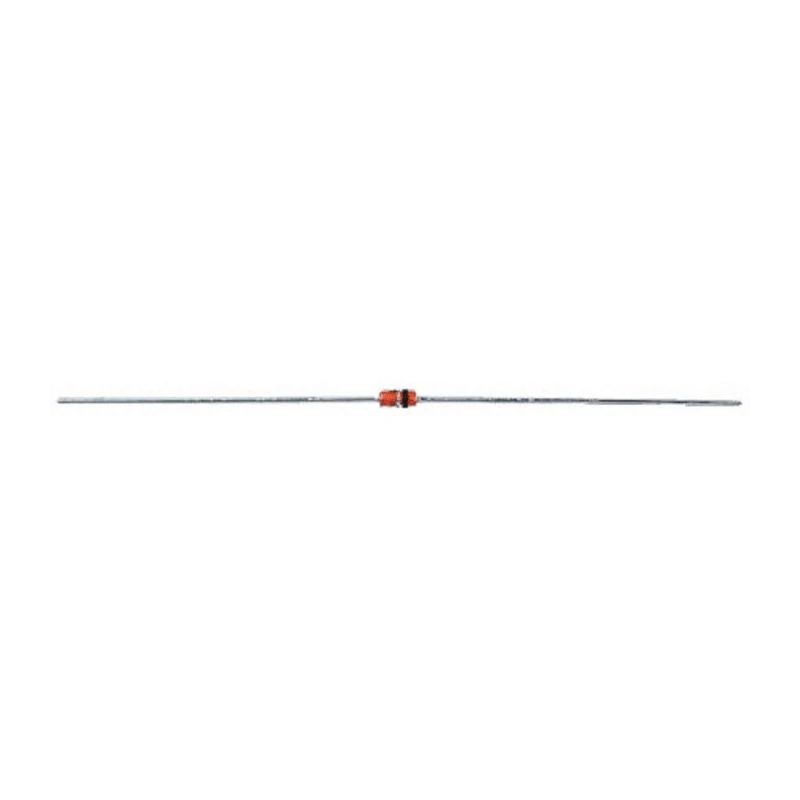

onsemi 1N5237BTR is a general purpose 8.2 V Zener diode with a maximum power dissipation of 500 mW, suitable for voltage regulation and voltage reference applications in electronic circuits. This diode is of single configuration, mounted through hole with a 2-pin SOD-27 package, allowing for straightforward PCB installation and robust mechanical stability.
Designed for use in semiconductor applications, the device operates effectively within a temperature range of -65°C to 200°C, making it adaptable to various industrial, laboratory, and commercial operating environments. Its maximum Zener impedance is 8 ohms with a test current of 20 mA, ensuring stable voltage reference characteristics. The reverse leakage current remains minimal at 3 microamperes, contributing to device efficiency.
The compact dimensions, 4.56 mm in length and 1.91 mm in height, make the 1N5237BTR suitable for space-constrained circuit designs. The diode is part of the trusted 1N52 series and meets no specific automotive standards. This product offers consistent performance for discrete semiconductor needs and voltage regulation uses.
The diode features a nominal Zener voltage of 8.2 volts. Maximum power dissipation rating is 500 milliwatts ensuring reliable performance. It has a through hole mount type with a 2-pin SOD-27 package for easy PCB installation.
Test current is 20 mA with a maximum Zener impedance of 8 ohms. Operating temperature ranges from -65°C to 200°C for robust environmental tolerance. Maximum reverse leakage current is rated at 3 microamperes. The diode has length of 4.56 mm and height of 1.91 mm providing compact form factor.
It belongs to the 1N52 series and is not compliant with automotive standards.
Ideal for industrial electronic circuits, power supply regulation, and protection systems, this Zener diode provides a reliable voltage reference ensuring optimal circuit function in electrical and electronic products. Explore more high-quality semiconductor components available on EnvMart's Electronics & Electricals category.
Explore more products in our Zener Diodes category.
