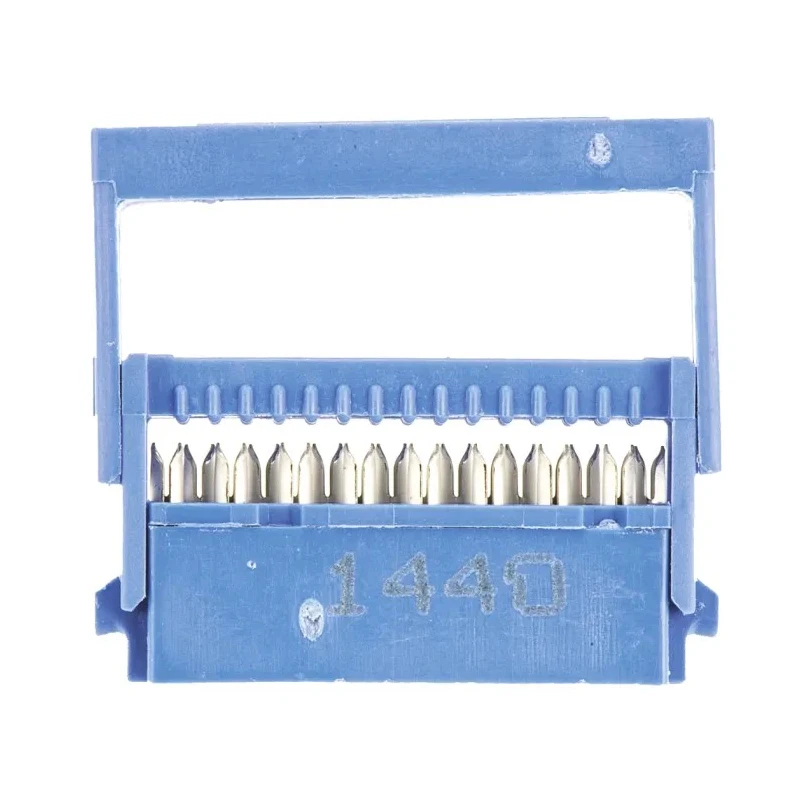

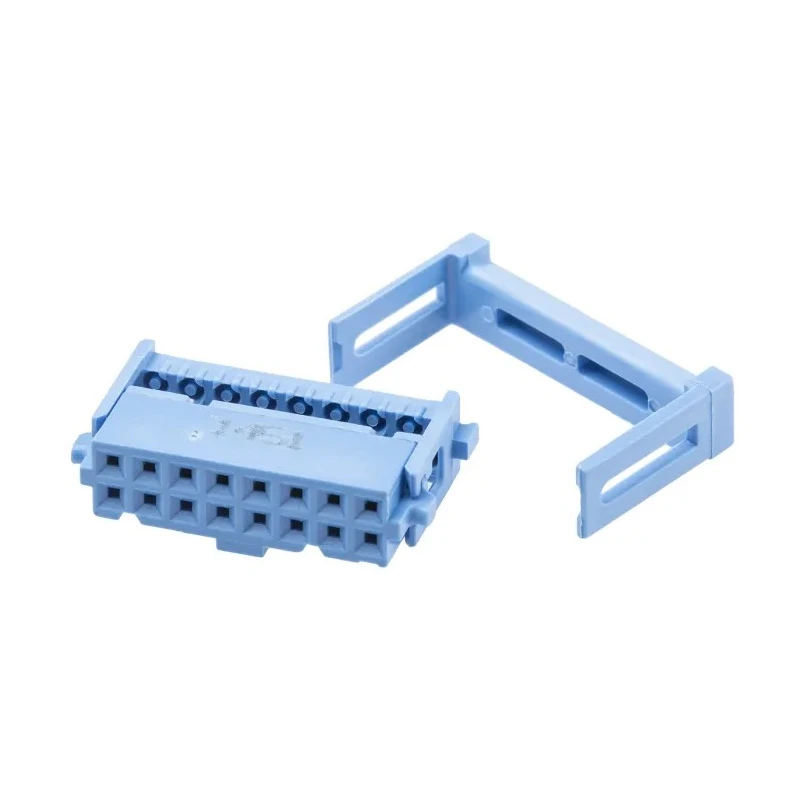

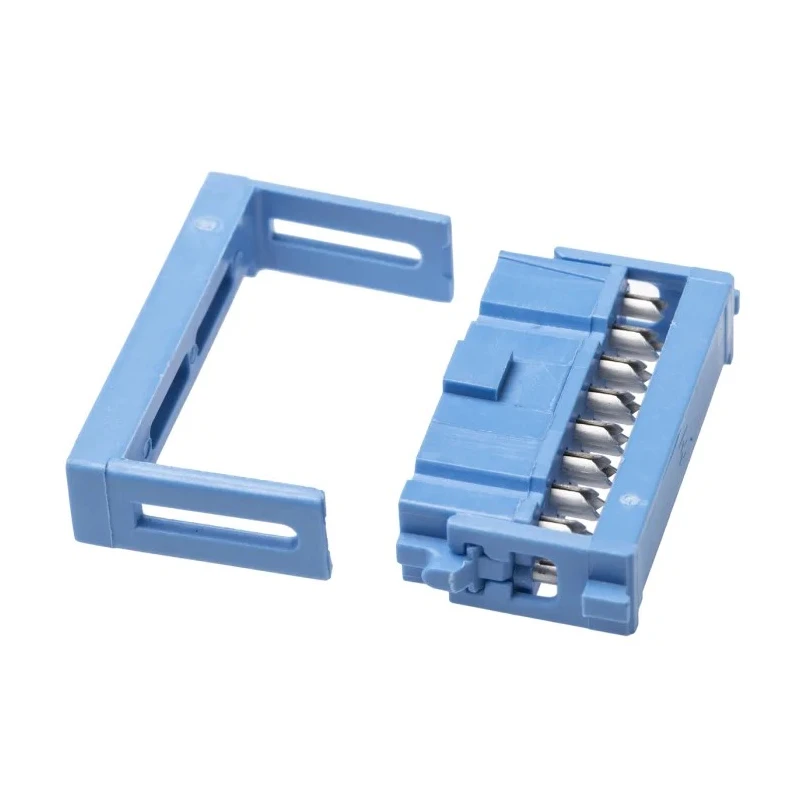

TE Connectivity 16-Way IDC Connector Female for Cable, 2 Row 1-1658526-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper Alloy |
| Series | AMP-LATCH 609 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- The IDC contacts enable fast and economical mass terminations without wire stripping.
- Military approved tuning fork design ensures secure connection and uniform latching.
- Housing material is UL 94V-0 thermoplastic with military and center polarization.
- Gold over nickel plating enhances contact durability and conductivity.
- Operating temperature range is -55°C to 125°C for versatile industrial use.
- Right angle mount type supports efficient cable routing.
- Connector rated for 250V voltage and 1A current.
- Shrouded female connector provides robust mating interface.
Product Description
TE Connectivity 1-1658526-1 is a high-quality 16-Way IDC Connector designed for cables, featuring a 2-row configuration and female gender contacts. It is engineered for an operating voltage of 250V and current rating of 1A, making it ideal for reliable connections in electronic assemblies.
This connector uses insulation displacement contacts (IDC) enabling efficient mass termination of ribbon cables without the need for wire preparation or stripping. The tuning fork contact design, approved for military standards, ensures consistent and robust contact latching. The housing is constructed from UL 94V-0 rated thermoplastic, providing flame retardant protection and mechanical strength. The connector includes military and center polarization for correct mating.
Gold over nickel plating on contacts provides excellent corrosion resistance and electrical conductivity. The right angle cable mount orientation facilitates space-saving PCB layouts. It operates effectively across a wide temperature range from -55°C to 125°C, suitable for demanding industrial and commercial environments.
This AMP-LATCH 609 series connector is commonly used in applications such as network equipment, industrial automation controls, electrical and medical testing devices, home and industrial appliances, consumer electronics, and automotive systems. Its shrouded female interface enhances safety and durability.
The IDC contacts enable fast and economical mass termination without wire stripping. Military approved tuning fork design ensures secure connection and uniform latching. Housing material is UL 94V-0 thermoplastic with military and center polarization.
Gold over nickel plating enhances contact durability and conductivity. Operating temperature range is -55°C to 125°C for versatile industrial use. Right angle mount type supports efficient cable routing. Connector rated for 250V voltage and 1A current.
Shrouded female connector provides robust mating interface. Part of AMP-LATCH 609 series known for quality and reliability.
Explore the full range of IDC Connectors at EnvMart for your electronic component needs, ensuring top performance and quality assurance across industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a voltage of 250V, making it suitable for various electronic applications.
It has a current rating of 1A, which allows it to handle standard electrical loads in electronic assemblies.
The operating temperature range is from -55°C to 125°C, allowing it to function effectively in diverse industrial environments.
This model uses insulation displacement contacts (IDC), enabling fast and economical mass terminations without wire stripping.
The housing is made from UL 94V-0 rated thermoplastic, and the contacts are made from beryllium copper alloy with gold over nickel plating.
It features a right angle orientation, which supports efficient cable routing in electronic assemblies.
This connector has 16 contacts, arranged in a 2-row configuration.
This connector is shrouded, providing a robust mating interface for enhanced safety and durability.
It is part of the AMP-LATCH 609 series, known for its quality and reliability in electronic connections.
It is commonly used in network equipment, industrial automation controls, electrical and medical testing devices, and consumer electronics.
The pitch of this connector is 2.54mm, which is standard for many ribbon cable applications.
The connector is manufactured in India, ensuring compliance with relevant manufacturing standards.
