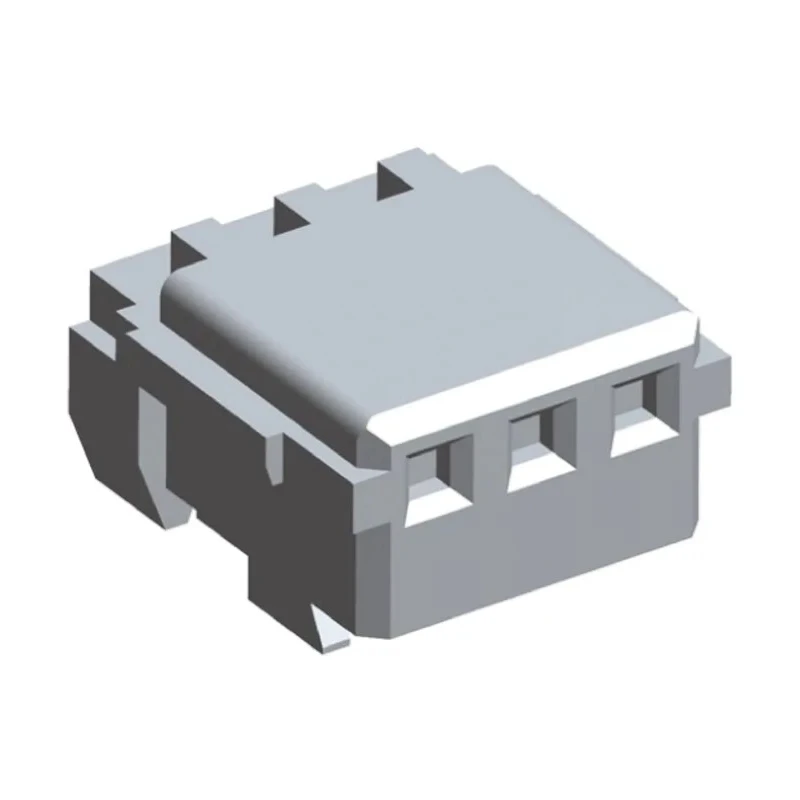

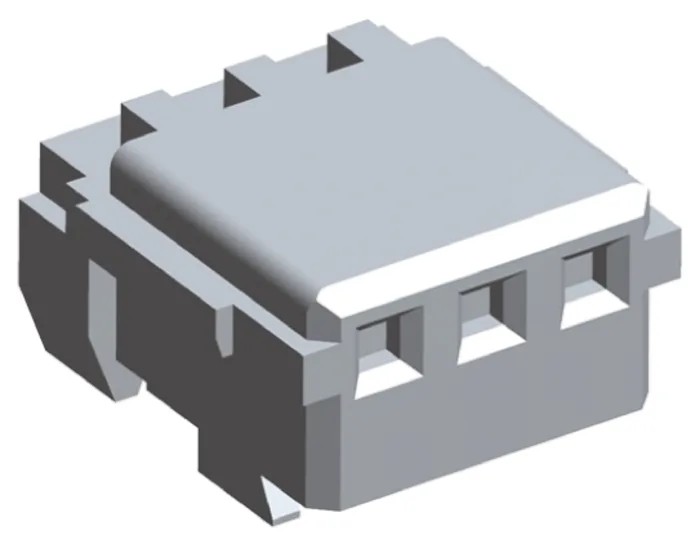

TE Connectivity 3-Way IDC Connector Female for Cable, 1 Row 353293-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 3-Way IDC Connector Female for Cable, 1 Row 353293-3

Name: TE Connectivity 3-Way IDC Connector Female for Cable, 1 Row 353293-3
Brand: TE Connectivity
SKU: 210943
Price: 0.38 USD
Availability: InStock



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	50, 50V ac
Brand	TE Connectivity
Orientation	Straight
Current	2A
Model	353293-3
Mount Type	Cable
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	AMP Mini CT
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin over Nickel
Number of Contacts	3
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Constructed from UL 94V-0 nylon housing for durability and safety.
Features phosphor bronze pre-tin plated dual beam socket contacts for excellent conductivity.
Designed for 22 to 28 AWG wire sizes ensuring versatility.
Shrouded, straight orientation female connector suitable for mass termination applications.
Supports a current rating of 2 Amperes and voltage rating of 50 V AC.
Operates reliably between -30°C and 105°C temperature range.
Termination type is insulation displacement contact (IDC) for secure wire connections.
AMP Mini CT series miniature interconnection system provides compact design with proven wire harness capability.

Product Description

TE Connectivity 353293-3 3-Way IDC Connector Female for Cable, 1 Row is a high-quality IDC connector designed for professional electronic and industrial applications requiring compact and reliable wire to board or wire to wire connectivity. It features a single row with 3 contacts spaced at a 1.5 mm pitch, suitable for cables with wire sizes ranging from 22 to 28 AWG. The shrouded, female connector housings are constructed from UL 94V-0 nylon which offers excellent resistance to flame and mechanical stress.

The connector includes phosphor bronze contacts plated with tin over nickel, ensuring high conductivity and corrosion resistance. Rated for 2 Amps current and 50 Volt AC usage, it supports operational temperatures ranging from -30°C to 105°C, making it suitable for demanding thermal environments.

Part of the AMP Mini CT series, this connector system is streamlined for space-saving designs and high reliability in wire harness applications. The insulation displacement contact (IDC) termination allows fast and secure cable assembly without stripping wires.

This 3-way IDC connector is widely used in industrial electronics, manufacturing equipment, automation systems, and laboratory instrumentation. Its compact and robust design facilitates efficient signal transmission in tight spaces while maintaining stable electrical connections.

Constructed from UL 94V-0 nylon housing for durability and safety. Phosphor bronze pre-tin plated dual beam socket contacts ensure excellent conductivity. Accepts 22 to 28 AWG wire sizes providing application versatility.

Shrouded, straight female connector enables secure mass termination connections. Rated for 2A current and 50V AC voltage for reliable performance. Operational temperature range of -30°C to 105°C suitable for industrial use.

Termination type is insulation displacement contact (IDC) for easy assembly. Part of AMP Mini CT series miniature interconnection system with proven wire harness compatibility. Manufactured in China, ideal for industrial, laboratory, and manufacturing applications.

Explore the TE Connectivity product range and other IDC Connectors on EnvMart for your electronic component needs.
