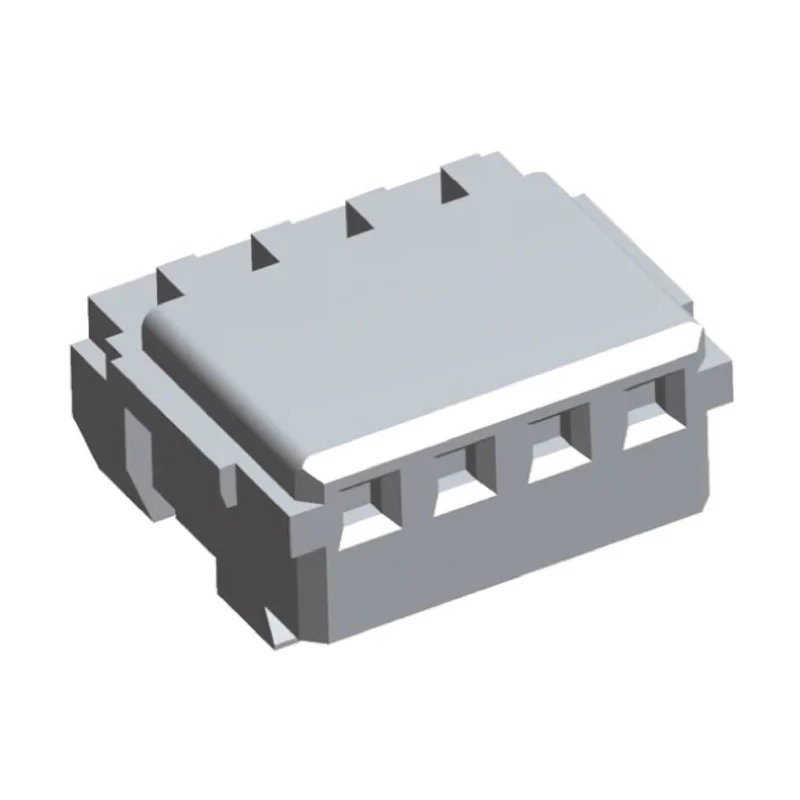

TE Connectivity 4-Way 1.5mm Pitch Shrouded Female IDC Cable Connector, 2A, 50V AC, AMP Mini CT Series 353293-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 4-Way 1.5mm Pitch Shrouded Female IDC Cable Connector, 2A, 50V AC, AMP Mini CT Series 353293-4

Name: TE Connectivity 4-Way 1.5mm Pitch Shrouded Female IDC Cable Connector, 2A, 50V AC, AMP Mini CT Series 353293-4
Brand: TE Connectivity
SKU: 210998
Price: 0.45 USD
Availability: InStock



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	50, 50V ac
Brand	TE Connectivity
Orientation	Straight
Current	2A
Model	353293-4
Mount Type	Cable
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	AMP Mini CT
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin over Nickel
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Supports a current rating of 2A for low power applications.
Designed for operating voltage of 50V AC.
Constructed with phosphor bronze contacts plated with tin over nickel for durability.
Housing made from UL 94V-0 rated nylon ensuring flame retardance.
Suitable for wire sizes ranging from 22 to 28 AWG.
Operates reliably between -30°C and 105°C temperature range.
Compact 1-row AMP Mini CT series mass termination connector housing.
Provides straight orientation and cable mount type for easy assembly.

Product Description

TE Connectivity 353293-4 is a 4-Way Female IDC Connector designed for cable mounting with a 1.5mm pitch. Part of the AMP Mini CT series, this connector offers a compact and reliable mass termination solution for electronic components, power connections, and wire harness assemblies.

Manufactured with high-quality phosphor bronze contacts, plated with tin over nickel, it provides excellent conductivity and corrosion resistance. The housing is made from UL 94V-0 rated nylon, giving it flame retardant properties crucial for industrial applications. The connector supports wire sizes from 22 to 28 AWG and can safely operate across a wide temperature range of -30°C to 105°C.

This product has a current rating of 2A and voltage rating of 50V AC, making it suitable for low power electronics and industrial control gear. The IDC termination type offers quick and solderless wire connection, enhancing manufacturing efficiency in mass production.

The 1-row, shrouded design improves safety by preventing unintentional contact with the conductive elements, while the straight orientation and cable mount type provide ease of installation within assemblies. The AMP Mini CT interconnection system is widely recognized for wire-to-wire and wire-to-board applications within industrial, manufacturing, and electronic product sectors.

Supports 2A current and 50V AC voltage rating. Phosphor bronze contacts with tin-nickel plating. UL 94V-0 nylon housing with flame retardant properties. Temperature range -30°C to 105°C for reliable operation. Mass termination IDC type for solderless connection.

Shrouded female connector for electrical safety. Compact 1.5mm pitch and 1-row construction. Compatible with AWG 22 to 28 wire sizes. Widely used in electronics, industrial controls, and wire harnesses. Facilitates efficient production in mass wiring assemblies.

This TE Connectivity AMP Mini CT series IDC Connector enhances connection reliability and assembly efficiency in industrial, electronic, and manufacturing contexts. Explore more connectors in the IDC Connector category on EnvMart for broader application needs.
