TE Connectivity 2-Way Shrouded Female IDC Connector for Cable 1 Row 3-643814-2

Free Delivery in India | Lowest Global Shipping Charges

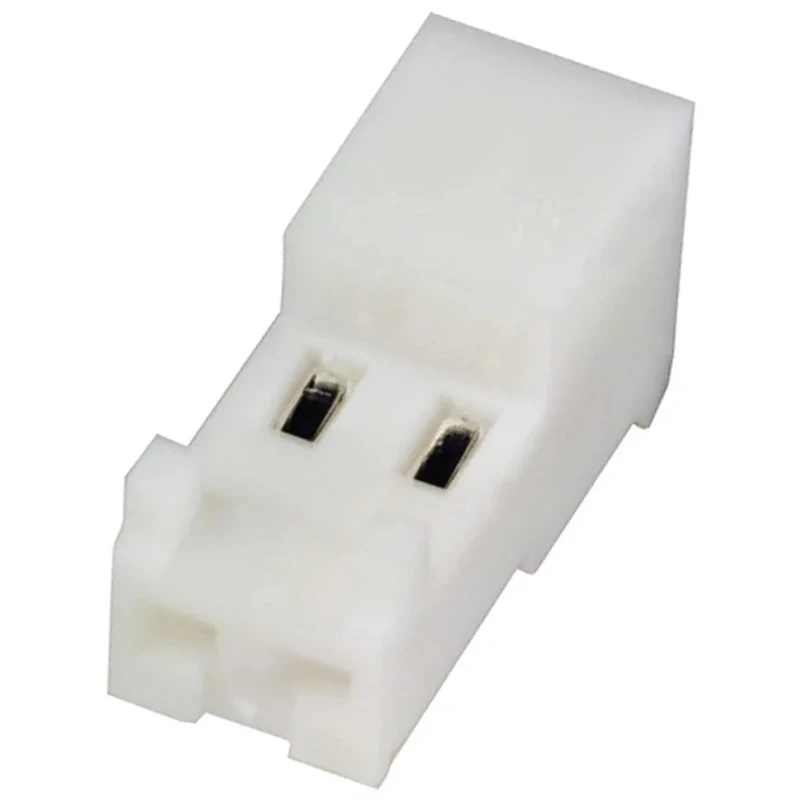

TE Connectivity 2-Way Shrouded Female IDC Connector for Cable 1 Row 3-643814-2

Name: TE Connectivity 2-Way Shrouded Female IDC Connector for Cable 1 Row 3-643814-2
Brand: TE Connectivity
SKU: 210802
Price: 0.27 USD
Availability: InStock



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	TE Connectivity
Orientation	Right Angle
Current	5A
Mount Type	Cable
Housing Material	Nylon
Contact Material	Copper
Series	MTA-100
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin over Nickel
Number of Contacts	2
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
TE Connectivity 2-Way IDC Connector Female for Cable, 1 RowBrand	TE Connectivity

Key Features

Supports up to 5A current and 250V AC voltage rating.
Features a shrouded housing made of durable nylon material for mechanical protection.
Employs insulation displacement contact (IDC) termination eliminating wire stripping.
Right angle cable mount orientation for compact installations.
Contacts are tin plated over nickel for enhanced conductivity and corrosion resistance.
Operates within temperature range -55°C to 105°C suitable for diverse environments.
Includes friction lock and molded ribs to prevent reverse mating and ensure secure connection.
End to end stackable design with optional polarizing tabs for alignment.

Product Description

TE Connectivity model 3-643814-2 is a 2-Way female IDC (Insulation Displacement Contact) connector for cable applications, featuring a single row of contacts with a 2.54 mm pitch. This connector is part of the MTA-100 series designed for efficient mass termination of wires using IDC technology, which eliminates the need for wire stripping and supports quick assembly.

The connector supports a current rating of 5A and a voltage of 250V AC, making it suitable for a variety of electronic and electrical system uses in industrial, automotive, computer, and consumer electronics sectors.

The housing is made from robust nylon material and is shrouded to provide mechanical protection and prevent incorrect mating. Contacts are copper-based with tin over nickel plating to improve conductivity and resistance to corrosion. Its termination type is IDC with a right-angle cable mount orientation, enhancing layout flexibility. It operates reliably in a temperature range from -55°C to 105°C.

Additional features include a friction lock mechanism that ensures a secure mating connection and molded ribs that prevent reverse mating. The connectors are end to end stackable and versions with polarizing tabs are available to assist with alignment.

This connector is widely applicable for mass wire termination in automotive body and chassis systems, driver information systems, safety and security equipment, as well as computers, notebooks, servers, storage devices, and workstation applications.

Supports up to 5A current capacity at 250V AC rating. Durable nylon shrouded housing for protection and reliable mating. IDC termination enables efficient one-step wire assembly without stripping. Right-angle cable mount for space-saving installation.

Contact plating: Tin over Nickel for corrosion resistance. Operates between -55°C and 105°C for industrial environments. Friction lock and molded ribs prevent misalignment or connection failure. Stackable design supports modular configurations and polarizing tabs ensure proper orientation.
