Molex 4-Way IDC Connector Female for Cable, 1 Row 14562042

Free Delivery in India | Lowest Global Shipping Charges

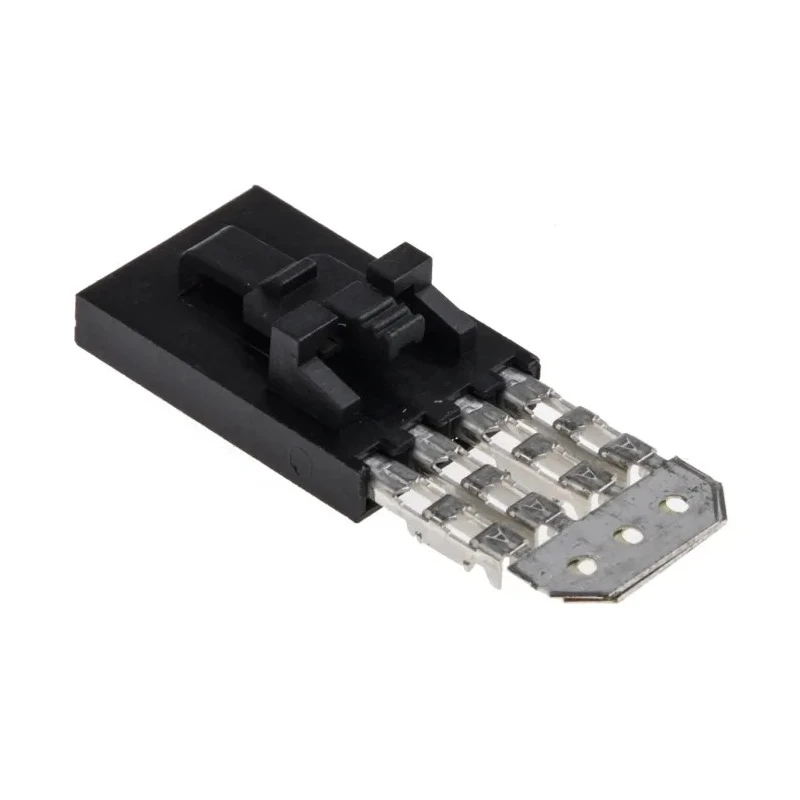

Molex 4-Way IDC Connector Female for Cable, 1 Row 14562042

Name: Molex 4-Way IDC Connector Female for Cable, 1 Row 14562042
Brand: Molex
SKU: 211478
Price: 1.86 USD
Availability: InStock



Category IDC Connector Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Molex
Orientation	Straight
Current	3A
Model	14562042
Mount Type	Cable
Housing Material	Polyester Alloy
Contact Material	Phosphor Bronze
Series	SL
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold over Tin
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Unshrouded

Key Features

The connector has 4 contacts arranged in a single row.
It features a straight orientation and unshrouded design for ease of use.
Contacts are made from phosphor bronze with gold over tin plating for reliability.
The housing is made from durable polyester alloy, suitable for harsh environments.
Operating temperature range spans from -40°C to 105°C ensuring wide application compatibility.
The connector uses Insulation Displacement Technology (IDC) termination for secure cable connections.
It is part of the SL series, offering positive lock and design flexibility for automated harness-making.
Rated for cable mount type and female connector gender.

Product Description

Molex 14562042 4-Way IDC Connector Female for Cable, 1 Row is a high-quality PCB connector designed for reliable connectivity in electronics and electrical applications. With 4 contacts and a 2.54mm pitch, this straight orientation connector provides efficient signal transmission for use in industrial and commercial environments.

Constructed with phosphor bronze contacts plated with gold over tin, it ensures excellent electrical performance and corrosion resistance. The polyester alloy housing offers robustness and durability under wide operating temperatures ranging from -40°C to 105°C.

This connector employs Insulation Displacement Technology (IDC) termination, which allows quick and secure cable assembly without the need for soldering. The unshrouded design facilitates easy mating with compatible components, suitable for cable mount applications. Its SL series design includes positive locking features enhancing connection stability in demanding harnesses.

Typical applications include industrial control systems, electronic devices, power connectors, and wire housing assemblies where reliable electrical connections are critical. The compact single-row 4-circuit layout supports high-density configurations in wiring harnesses and printed circuit board assemblies.

The connector has 4 contacts arranged in a single row. It features a straight orientation and unshrouded design for ease of use. Contacts are made from phosphor bronze with gold over tin plating for reliability. The housing is made from durable polyester alloy, suitable for harsh environments.

Operating temperature range spans from -40°C to 105°C ensuring wide application compatibility. The connector uses Insulation Displacement Technology (IDC) termination for secure cable connections. It is part of the SL series, offering positive lock and design flexibility for automated harness-making.

Rated for cable mount type and female connector gender. Explore more high-quality IDC Connectors and electronic components for your industrial and manufacturing needs at EnvMart.
