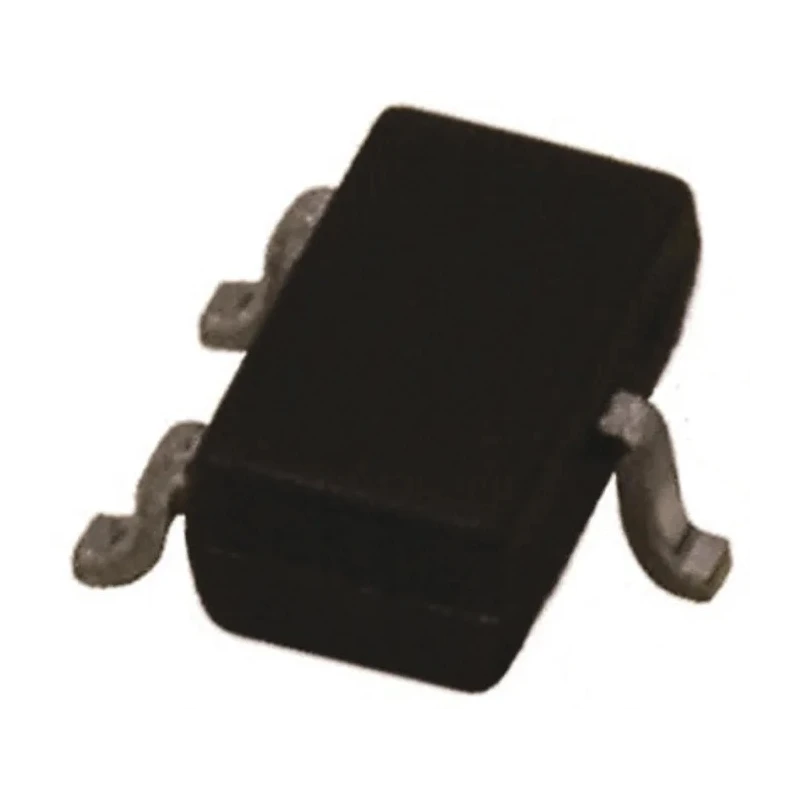

Littelfuse 2-Element Bi-Directional TVS Diode Array, Dual Diode Configuration, 6V Breakdown Voltage, 3-Pin SP1002-01JTG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Littelfuse |
| Height | 1mm |
| Length | 2.25mm |
| Model | SP1002-01JTG |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | SP1002 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 16V |
| Diode Configuration | Dual |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 2A |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- Features a dual diode configuration enabling bi-directional voltage clamping.
- Minimum breakdown voltage of 6V ensures reliable protection under voltage stress.
- Capable of absorbing peak pulse current up to 2A for ESD safety.
- Compact surface mount SC-70 package ideal for space-constrained applications.
- Operating temperature range from -40°C to 125°C supports diverse environments.
- Clamping voltage rated at 16V to prevent circuit damage from surges.
- Low leakage current of 500nA minimizes power loss during operation.
- Designed for protecting high speed signal lines with typical 5pF input-to-input capacitance.
Product Description
Littelfuse SP1002-01JTG 2-Element Bi-Directional TVS Diode Array in a compact 3-pin SC-70 package is engineered to protect sensitive electronics from electrostatic discharges and voltage spikes. With a dual diode configuration and bi-directional voltage clamping, it safeguards circuits by clamping voltages at a minimum breakdown voltage of 6V and a clamping voltage of 16V under transient events.
This diode array features a maximum peak pulse current rating of 2A and a maximum reverse stand-off voltage of 6V, supporting reliable repetitive transient suppression. Its low leakage current of 500nA and low capacitance characteristics make it suitable for high-speed signal protection in devices where minimal signal distortion is critical.
Supporting operating temperatures from -40°C to 125°C, the SP1002-01JTG is well-suited for demanding industrial, telecommunications, computing, and consumer electronic applications. The surface mount SC-70 package reduces board space usage, facilitating compact PCB designs.
Typical uses include protection for computer peripherals, mobile phones, digital cameras, desktops, notebooks, LCD/PDP TVs, set-top boxes, DVD players, and MP3/portable media players - providing robust and reliable surge protection against ESD and transient voltage events.
Dual diode configuration enables effective bidirectional voltage suppression. Low input-to-input capacitance ensures high signal integrity on protected lines. Compact surface mount package allows integration in miniaturized electronic designs.
Wide operating temperature range ensures functionality in various conditions. Designed to withstand harsh electrostatic discharge conditions to protect circuit longevity. Ideal for electronic devices requiring robust transient voltage suppression.
Explore the full Littelfuse product range for enhanced circuit protection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of the SP1002-01JTG is 6V, ensuring reliable protection under voltage stress.
The clamping voltage for this model is rated at 16V, which helps prevent circuit damage from voltage surges.
This diode array can absorb a maximum peak pulse current of 2A, providing effective ESD protection.
The dimensions of this model are 2.25mm in length, 1.35mm in width, and 1mm in height.
The SP1002-01JTG operates within a temperature range of -40°C to 125°C, suitable for diverse environments.
This model is packaged in a compact SC-70 surface mount package, ideal for space-constrained applications.
The SP1002-01JTG features a dual diode configuration, meaning it has 2 elements per chip.
The maximum reverse leakage current for the SP1002-01JTG is 500nA, which minimizes power loss during operation.
This diode array is designed for protecting high-speed signal lines in devices such as mobile phones, digital cameras, and computer peripherals.
The test current for this model is 1mA, which is used for evaluating its performance under specified conditions.
The SP1002-01JTG features a bi-directional direction type, allowing it to clamp voltages in both directions.
The SP1002-01JTG is manufactured in Thailand, as indicated by its country of origin.
