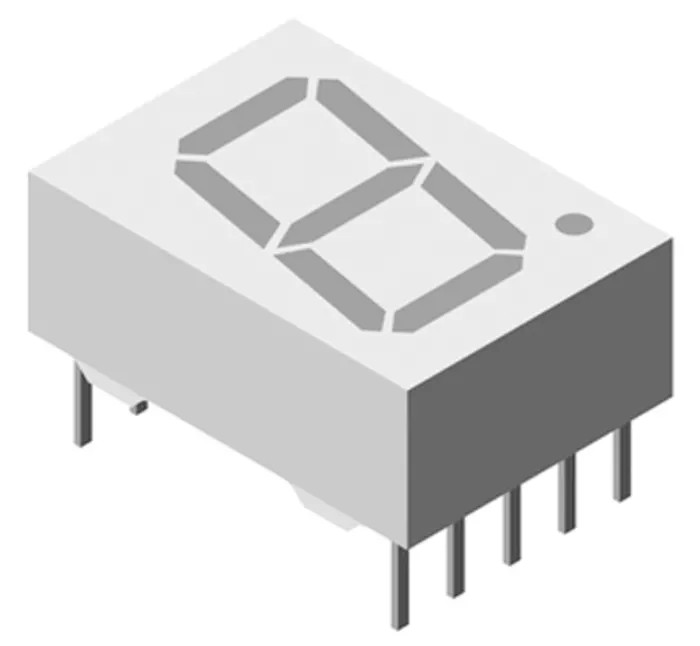

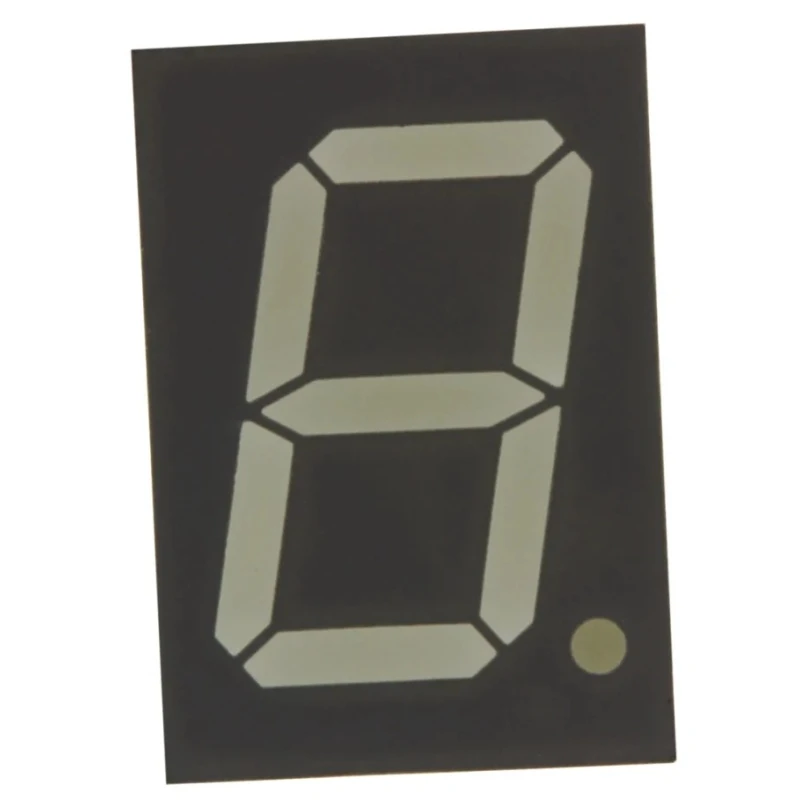

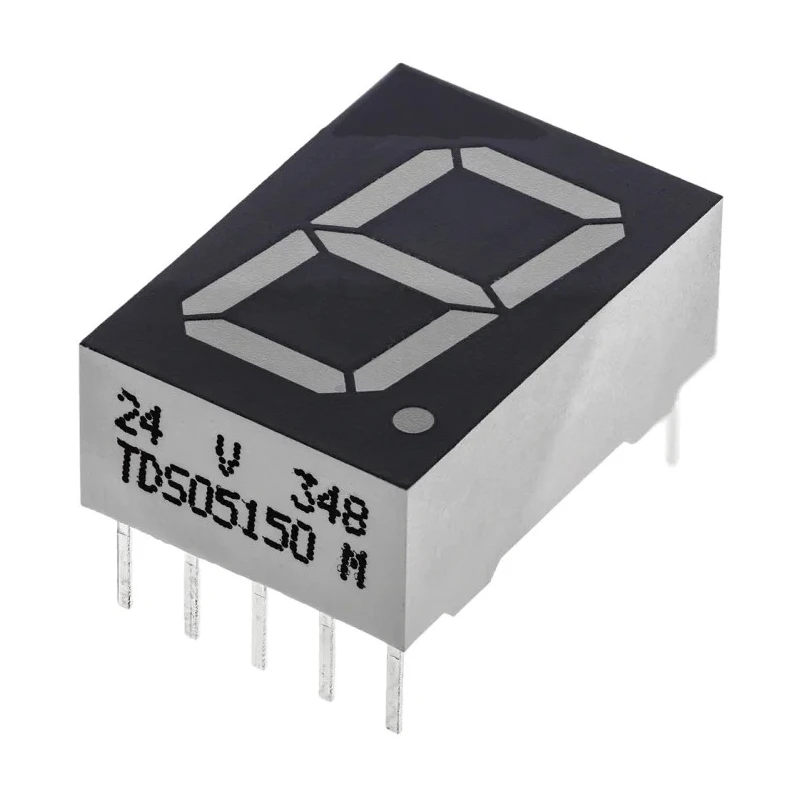

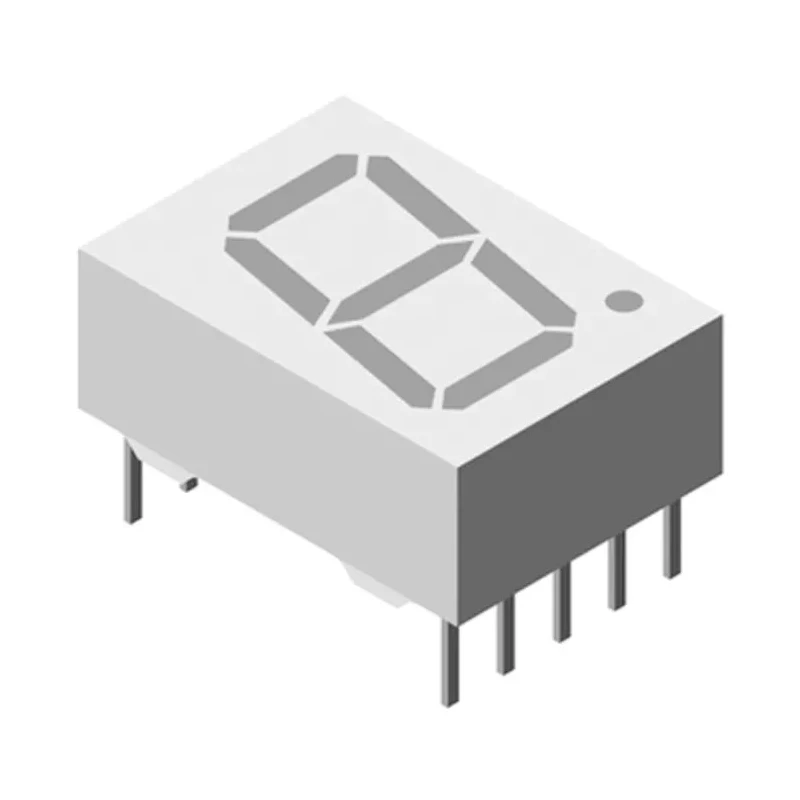

Vishay 1 7 Segment LED Display Anode Red 5mcd Right Side 13 mm TDSO5150

Name: Vishay 1 7 Segment LED Display Anode Red 5mcd Right Side 13 mm TDSO5150
Brand: Vishay
SKU: 217626
Price: 1.5 USD
Availability: InStock



Category LED Displays Brand Vishay Condition New

Specifications

Country of Origin	India
Display Type	7 Segment
Brand	Vishay
Model	TDSO5150
Mount Type	Through Hole
Character height	13mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
External Width	17.5mm
External Height	7mm
Power Dissipation	550mW
Luminous Intensity	5mcd
Standards/Approvals	IEC, RoHS, CE, EN
LED Colour	Red
Dominant Wavelength	625nm
Colour of Face	Grey
Forward Voltage	2V
Forward Current	25mA
Number of Characters	1
Character Width	7.4mm
Common Connection	Anode
Decimal Orientation	Right Side

Key Features

This LED display features a bright red color with a luminous intensity of 5 millicandela.
Built with a common anode configuration optimized for through-hole mounting.
Character width measures 7.4 mm and the full external dimensions are 17.5 mm width by 7 mm height.
Operates reliably within a temperature range from -40°C up to 85°C.
Measures forward voltage of 2 V and supports a forward current of 25 mA.
Power dissipation is rated at 550 milliwatts to ensure efficient energy usage.
Complies with IEC, RoHS, CE, and EN standards for safety and environmental compliance.
Designed for numerical display applications in industrial, electronic instrumentation, and consumer devices.

Product Description

Vishay TDSO5150 is a high-quality 1 digit 7 Segment LED Display featuring a common anode configuration and bright red LED color with 5 millicandela luminous intensity. The numeric display module has a character height of 13 mm, character width of 7.4 mm, and external dimensions of 17.5 mm width by 7 mm height, making it suitable for compact display requirements.

This LED display is manufactured for through-hole mounting and can operate effectively in a wide temperature range from -40°C to 85°C, ensuring robust performance under varying environmental conditions. The display includes a decimal point oriented on the right side, facilitating precise numerical representation in user interfaces.

The electrical specifications include a forward voltage of 2 V, a forward current of 25 mA, and a power dissipation of 550 milliwatts, ensuring energy-efficient operation with durability. The product conforms to internationally recognized standards such as IEC, RoHS, CE, and EN, confirming its compliance with safety and environmental regulations.

This 7 Segment LED Display is ideal for use in industrial control panels, electronic measuring instruments, digital counters, and other display modules requiring clear and reliable numeric outputs. Its grey face color makes the red illuminated segments highly visible against contrast backgrounds.

This LED display features a bright red color with a luminous intensity of 5 millicandela. Built with a common anode configuration optimized for through-hole mounting. Character width measures 7.4 mm and the full external dimensions are 17.5 mm width by 7 mm height.

Operates reliably within a temperature range from -40°C up to 85°C. Measures forward voltage of 2 V and supports a forward current of 25 mA. Power dissipation is rated at 550 milliwatts to ensure efficient energy usage. Complies with IEC, RoHS, CE, and EN standards for safety and environmental compliance.

Designed for numerical display applications in industrial, electronic instrumentation, and consumer devices. Discover more electronic components and display modules at EnvMart for a complete solution tailored to your project's requirements.
