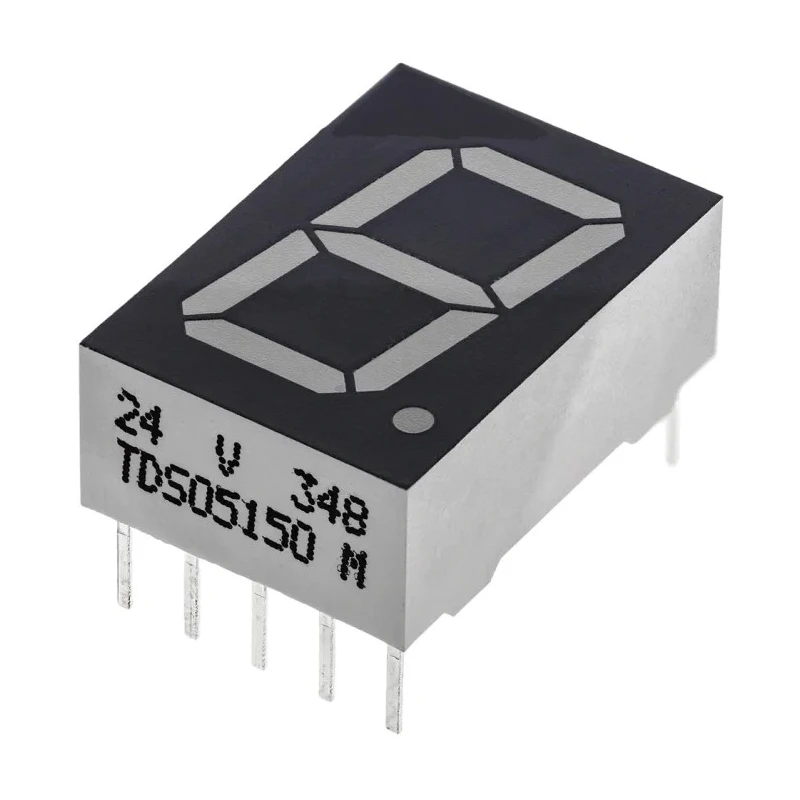

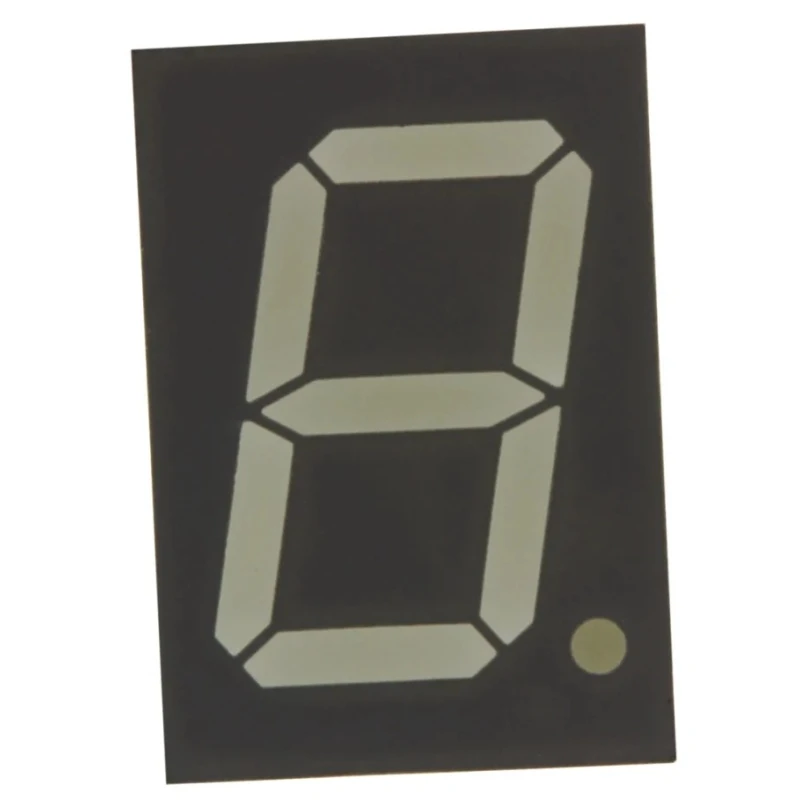

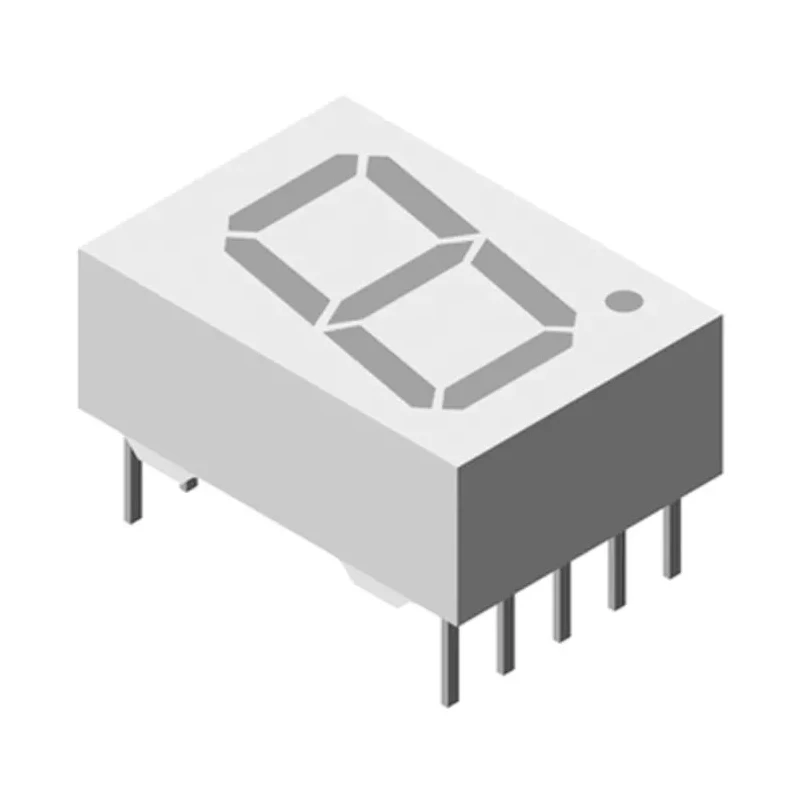

Vishay 1 7 Segment LED Display Anode Red 5mcd Right Side 13 mm TDSO5150

Name: Vishay 1 7 Segment LED Display Anode Red 5mcd Right Side 13 mm TDSO5150
Brand: Vishay
SKU: 217622
Price: 1.77 USD
Availability: InStock



Category LED Displays Brand Vishay Condition New

Specifications

Country of Origin	India
Display Type	7 Segment
Brand	Vishay
Model	TDSO5150
Mount Type	Through Hole
Character height	13mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
External Width	17.5mm
External Height	7mm
Power Dissipation	550mW
Luminous Intensity	5mcd
Standards/Approvals	IEC, RoHS, CE, EN
LED Colour	Red
Dominant Wavelength	625nm
Colour of Face	Grey
Forward Voltage	2V
Forward Current	25mA
Number of Characters	1
Character Width	7.4mm
Common Connection	Anode
Decimal Orientation	Right Side

Key Features

This LED display features a dominant wavelength of 625 nm for bright red color.
The character width measures 7.4 mm and height is 13 mm for clear visibility.
It is designed for through-hole mounting with a right side decimal orientation.
Operational temperature ranges from -40°C to 85°C ensuring reliability in diverse environments.
The forward voltage is typically 2 V with a forward current rating of 25 mA.
Power dissipation is rated at 550 mW for optimal performance.
The face color is grey with compliance to IEC, RoHS, CE, and EN standards.

Product Description

Vishay TDSO5150 1 7 Segment LED Display Anode Red 5mcd with 13 mm Character Height is a precision electronic component designed for display applications requiring a single digit, seven-segment presentation.

This LED display delivers a luminous intensity of 5 millicandela with a dominant wavelength at 625 nm, producing a vivid red color output suitable for electronic indicators and measurement devices.

Featuring a common anode configuration and through-hole mounting style, it provides ease of integration into various industrial and laboratory instruments.

Its character dimensions of 7.4 mm width and 13 mm height ensure excellent readability, while the external dimensions of 7 mm height and 17.5 mm width accommodate compact assembly footprints.

Designed to operate reliably within a broad temperature range from -40°C to 85°C, this component maintains consistent performance under harsh environmental conditions. The display complies with internationally recognized standards including IEC, RoHS, CE, and EN, assuring compliance and quality.

This LED display offers a dominant wavelength of 625 nm for bright red light emission. Its maximum power dissipation of 550 mW allows stable operation. The forward voltage of 2 V and forward current of 25 mA provide suitable electrical performance for embedded applications.

The decimal point is oriented on the right side to aid numerical clarity. Grey face color enhances contrast and visibility in various lighting conditions. Through-hole mount type facilitates robust mechanical and electrical connection.

Suitable for use in industrial, manufacturing, laboratory, and electronic equipment display modules. Explore Vishay's range of reliable LED Displays at EnvMart for your next electronic design or production requirement.
