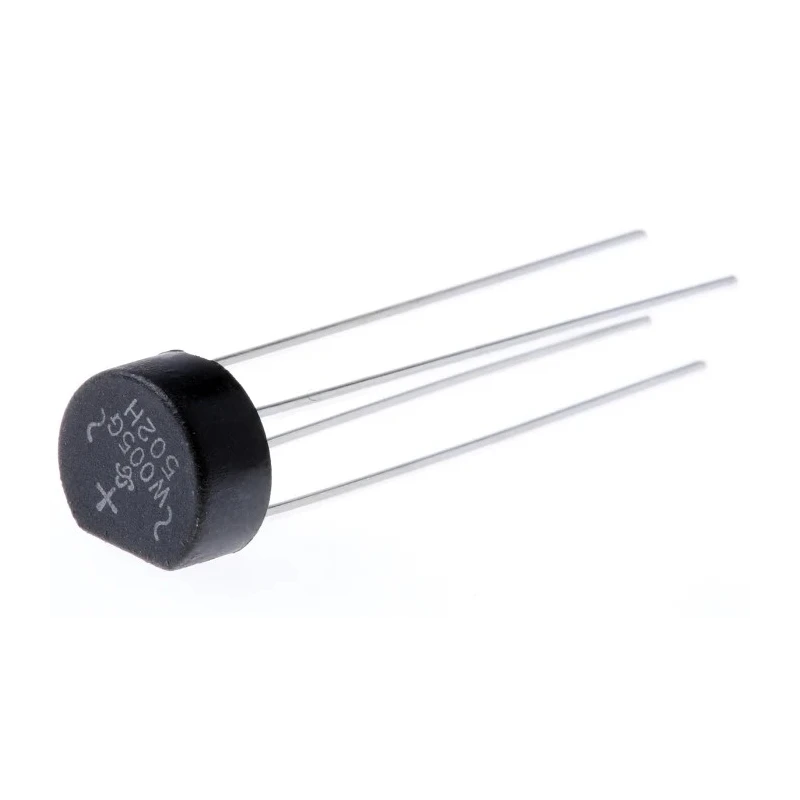

Vishay Bridge Rectifier 50 V 50 A 4-Pin Single W005G-E4/51
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.86mm |
| Brand | Vishay |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | W005G-E4/51 |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | W005G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | WOG |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5490PBrand: VishayManufacturers Part No.: W005G-E4/51 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1.5A |
| Peak Forward Voltage Vf | 1V |
| Material categorization | For definitions of compliance |
| MECHANICAL DATACase | WOGMolding compound meets UL 94 V-0 flammability ratingBase P/N-E4 - RoHS-compliant, commercial gradeTerminals: Silver plated leads, solderable perJ-STD-002 and JESD22-B102Polarity: As marked on body |
Key Features
- Designed for general-purpose use in power supplies and adapters.
- Features a maximum operating temperature of 150°C for reliable thermal performance.
- Silver-plated leads ensure excellent solderability and electrical connection.
- Compact dimensions with 9.86 mm length and diameter provide ease of PCB integration.
- Meets UL 94 V-0 flammability rating and UL recognition for safety compliance.
- Offers low typical reverse current less than 0.1 μA for high efficiency.
- High case dielectric strength suitable for industrial and consumer electronics applications.
- Material categorization and RoHS compliant for eco-friendly electronics manufacturing.
Product Description
Vishay W005G-E4/51 Bridge Rectifier is a high-reliability electronic component designed to convert alternating current (AC) input into direct current (DC) output using a full-wave rectification process. This 4-pin, single-phase rectifier has a peak reverse repetitive voltage rating of 50 V and a peak non-repetitive forward surge current of 50 A, making it suitable for demanding power supply and industrial electronic applications.
The component is housed in a WOG package made with UL 94 V-0 rated molding compound, ensuring excellent flame retardance and safety standards. Its silver-plated leads comply with solderability requirements per J-STD-002 and JESD22-B102 standards, facilitating reliable printed circuit board assembly.
The rectifier operates over a wide temperature range from -55°C to 150°C, guaranteeing stable performance in harsh environments. With a forward current rating of 1.5 A and a peak forward voltage of 1 V, it supports efficient power conversion with minimal losses.
Typical applications include use in power supplies, battery chargers, adapters, lighting ballasts, and various home appliances. The component's low typical reverse current (under 0.1 μA) and high dielectric strength make it ideal for both industrial and commercial electronics.
The product is UL recognized (file number E54214) and RoHS compliant, aligning with environmental regulations and safety certifications. Designed for full-wave rectification in AC/DC converters. Complies with high flame retardance UL 94 V-0 standard.
Silver-plated leads ensure superior solderability. High temperature tolerance from -55°C to 150°C. RoHS compliant commercial grade, suitable for mass production. Compact dimensions facilitate PCB mounting and integration.
This Vishay bridge rectifier represents a reliable and efficient solution for converting AC input to DC output in electronic circuits. It is well-suited for industrial, laboratory, commercial, and consumer electronics equipment integration.
Explore more high-quality semiconductor components and electronic accessories in the Electronics & Electricals section at EnvMart to support your project needs.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating is 50 V.
The maximum operating temperature is 150°C.
The forward current rating is 1.5 A.
The dimensions are 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height.
It uses a through-hole mounting type.
The peak non-repetitive forward surge current is 50 A.
The typical reverse current is less than 0.1 μA.
Yes, it is RoHS compliant, aligning with environmental regulations.
The package type is WOG.
It meets the UL 94 V-0 flammability rating and is UL recognized for safety compliance.
The leads are silver-plated, ensuring excellent solderability.
It is suitable for applications such as power supplies, battery chargers, and various home appliances.
