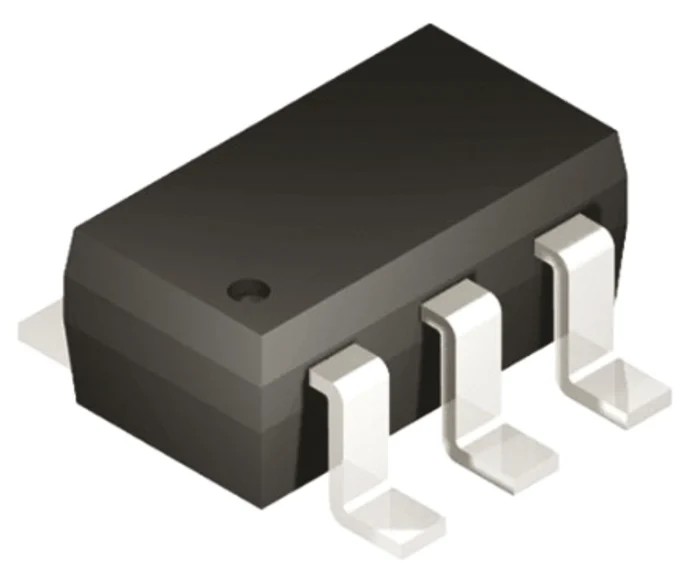

Texas Instruments 4-Element Uni-Directional ESD Protection Array 45W, 6-Pin SOT-23 TPD4E1U06DBVR

Texas Instruments TPD4E1U06DBVR is a high-performance 4-Element Uni-Directional Electrostatic Discharge (ESD) Protection Array designed for sensitive electronic components. This device provides a robust peak pulse power dissipation of 45 watts within a small footprint 6-Pin SOT-23 package, making it ideal for space-constrained applications.

Engineered to protect fast data lines such as USB 3.0 interfaces, the TPD4E1U06DBVR offers low capacitance and low leakage current, ensuring signal integrity is maintained while preventing damage from sudden voltage spikes and transient surges. The diode configuration is a complex array, specifically designed for uni-directional protection with a minimum breakdown voltage of 6.5V and a maximum reverse stand-off voltage of 5.5V.

This device operates reliably across a broad temperature range from -40°C to 125°C, making it suitable for automotive, industrial, and commercial uses. Its compact size dimensions of 3.05mm length, 1.75mm width, and 1.3mm height facilitate easy mounting on surface-mount technology (SMT) PCBs.

Typical use cases include protecting integrated circuits during manufacturing and operation against electrostatic discharge, voltage spikes, and electrical surges. The TPD4E1U06DBVR is ideal for detailed electronics design in industrial machines, computing devices, telecommunications equipment, and automotive electronics where high-speed interface protection is critical.

Offers uni-directional electrostatic discharge protection with four elements on a single chip. Designed to protect high-speed USB 3.0 interfaces by providing low capacitance and high sensitivity. Supports a peak pulse power dissipation of 45 watts ensuring robust surge handling.

Comes in a compact surface-mount SOT-23 package with 6 pins for easy PCB integration. Operates effectively over a wide temperature range from -40°C to 125°C. Features low leakage current of 10nA for energy efficiency and performance stability.

Provides a minimum breakdown voltage of 6.5V and a clamping voltage of 15V for precise protection. Suitable for industrial, communications, automotive, and computing applications requiring reliable ESD protection. Explore more ESD protection diodes and semiconductor components at EnvMart for your industrial and manufacturing requirements.
