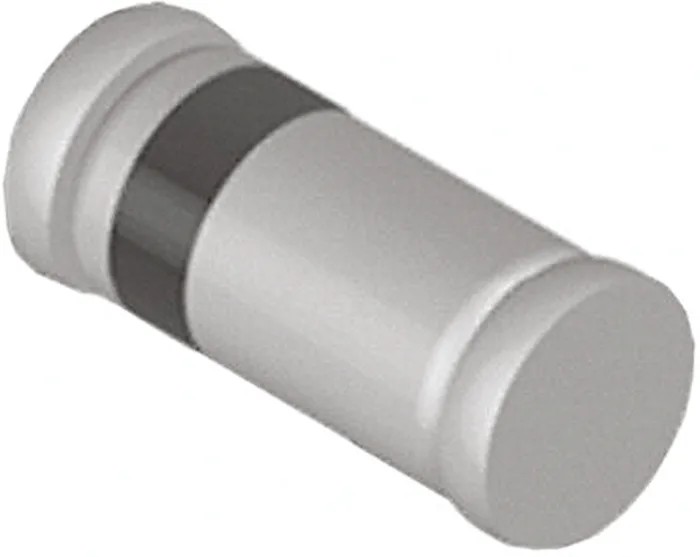

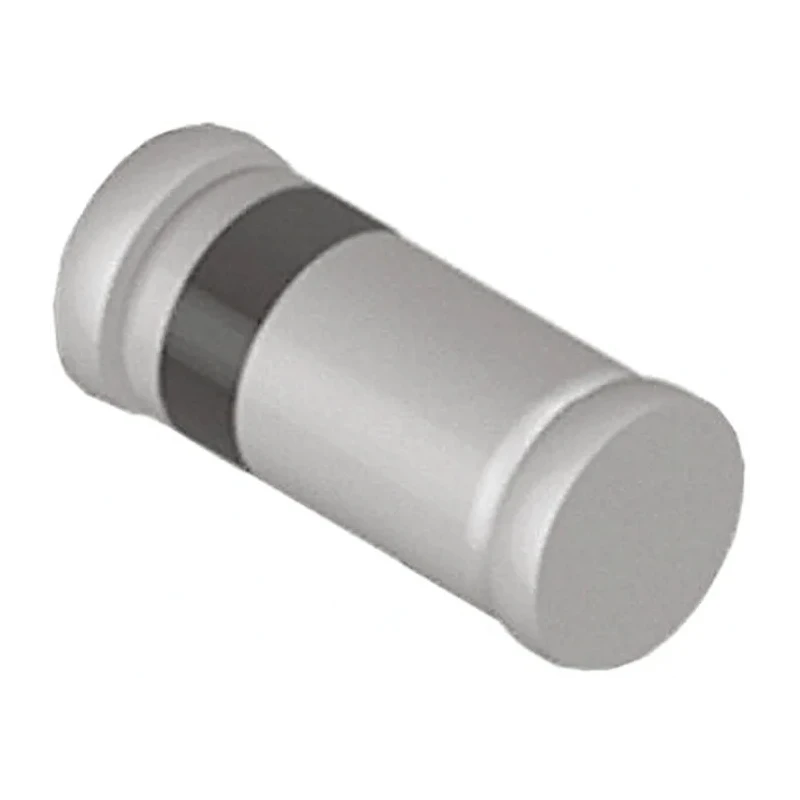

Vishay 10 V 500 mW Zener Diode Single Surface Mount 2-Pin MicroMELF BZM55C10-TR

Vishay BZM55C10-TR is a high-quality single Zener diode designed for voltage regulation applications. It features a nominal Zener voltage of 10 V and is capable of dissipating up to 500 mW power in a compact MicroMELF surface mount package. This makes it suitable for industrial, automotive, and electronic circuits requiring precise voltage regulation.

The diode operates within a maximum temperature of 175°C ensuring reliable performance under harsh conditions. With a maximum reverse leakage current of 2 µA and impedance of 15 Ω at 5 mA test current, it provides efficient voltage stabilization.

Its compact size of 2 mm length and 1.35 mm height makes it ideal for assemblies in power supplies, signal conditioning, and protection circuits in manufacturing and telecommunications equipment.

This product complies with the AEC-Q101 automotive standard, making it suitable for automotive electronics requiring stringent quality and durability. This diode functions as a voltage regulator with a nominal Zener voltage of 10 V.

It features a single diode configuration in a MicroMELF surface mount package. Maximum power dissipation is 500 mW ensuring reliable operation in various circuits. The diode is rated for a maximum operating temperature of 175°C enhancing durability.

Pin count is 2, suitable for standard surface mounting applications. Maximum reverse leakage current is 2 µA, ensuring minimal leakage in circuits. Maximum Zener impedance is 15 Ω providing stable voltage regulation at the test current of 5 mA.

Nominal voltage tolerance is ±6% for precision in voltage regulation. This diode meets the AEC-Q101 automotive standard ensuring quality and reliability for automotive use. Compact dimensions of 2 mm length and 1.35 mm height are ideal for space-constrained electronic assemblies.

Used extensively in industrial machines, automotive systems, telecommunications, and power management solutions, the Vishay BZM55C10-TR is engineered to deliver consistent performance and durability. Whether for prototype development or mass production, it provides a dependable component choice.
