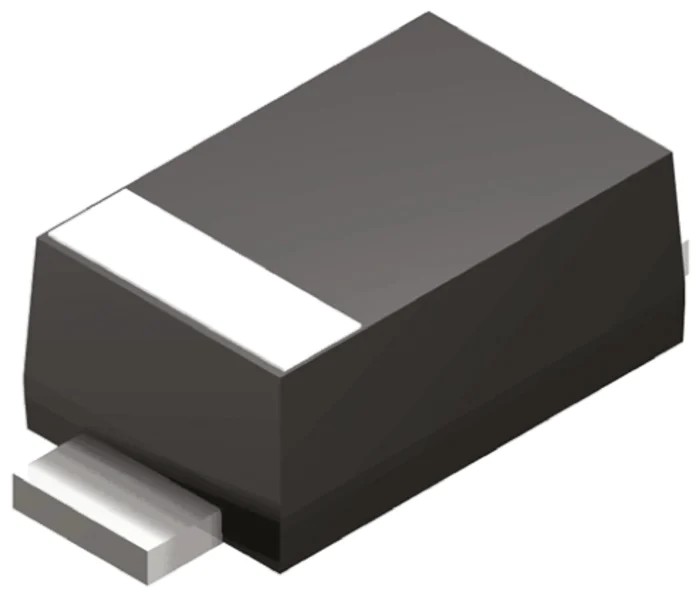

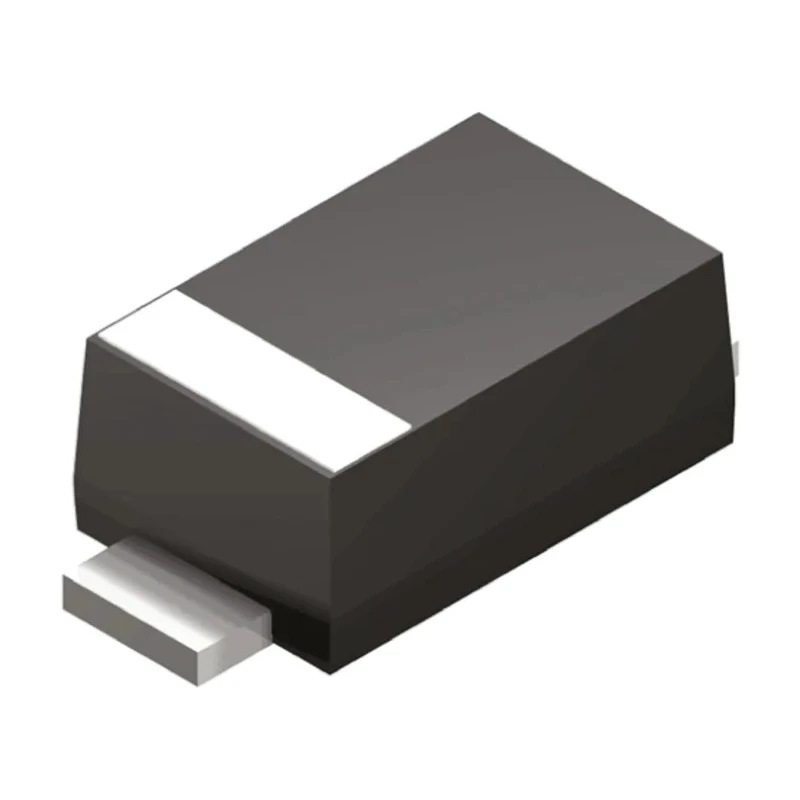

Nexperia 1-Element Uni-Directional TVS Diode 400 W 2-Pin SOD-123 PTVS40VS1UR,115

Nexperia PTVS40VS1UR,115 uni-directional TVS diode rated at 400 W is designed for transient overvoltage protection in sensitive electronic circuits. Packaged in a compact SOD-123 surface mount device, this diode is ideal for protecting circuits from damaging voltage spikes and surges.

The single-element device features a minimum breakdown voltage (Vbr) of 44.4 V and a maximum reverse stand-off voltage (Vwm) of 40 V. It delivers a peak pulse power dissipation of 400 watts with a clamping voltage (Vc) of 64.5 volts to effectively clamp overvoltages.

With a maximum peak pulse current (Ippm) of 6.2 A and low maximum reverse leakage current of 100 nA, it ensures efficient operation with minimal power loss. The diode operates reliably in temperatures ranging from -55°C to 150°C, making it suitable for demanding industrial and automotive environments. It meets the automotive standard AEC-Q101 for enhanced durability and qualification.

Its 2-pin SOD-123 package offers a compact form factor measuring 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height, supporting surface-mount assembly techniques. The device offers electrostatic discharge protection and features a single element per chip design.

Ideal for use in electronic components, power connectors, and semiconductor devices, this transient voltage suppressor safeguards sensitive equipment in applications including industrial electronics, automotive systems, and telecommunications.

Single-element uni-directional diode offers effective transient voltage suppression. Compact SOD-123 surface mount package for space saving on PCB layouts. Peak pulse power dissipation of 400 watts for robust surge suppression.

Clamping voltage of 64.5 volts ensures circuit protection during voltage spikes. Wide operating temperature range from -55°C to 150°C supports industrial environments. Complies with automotive standard AEC-Q101 for high reliability applications.

Low maximum reverse leakage current of 100nA reduces power loss. 2-pin configuration supports easy PCB mounting and design flexibility. Designed for use in electronic, power, and connector applications for transient voltage protection.
