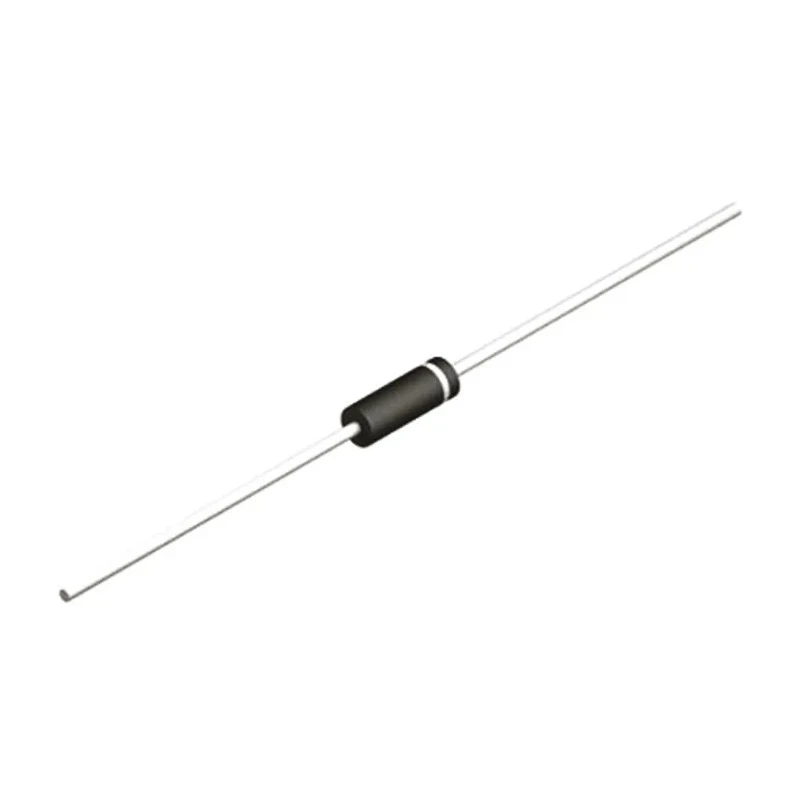

Vishay 1-Element Bi-Directional TVS Diode 500 W, 2-Pin DO-204AC SA6.5CA-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 3.6mm |
| Brand | Vishay |
| Height | 3.3mm |
| Length | 7.6mm |
| Model | SA6.5CA-E3/54 |
| Width | 3.3mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-204AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 11.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 7.22V |
| Maximum Reverse Stand-off Voltage Vwm | 6.5V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 44.7A |
| Maximum Reverse Leakage Current | 400μA |
Key Features
- Single diode configuration designed for bi-directional transient voltage suppression.
- Peak pulse power dissipation rating of 500 W ensures robust protection.
- Minimum breakdown voltage of 7.22 V with maximum standoff voltage of 6.5 V.
- Package type DO-204AC enables easy through-hole mounting.
- Wide operating temperature range from -55°C to 175°C for diverse conditions.
- Clamping voltage of 11.2 V ensures effective voltage limitation during transients.
- Maximum peak pulse current of 44.7 A supports high surge currents.
- Meets automotive standard AEC-Q101 for automotive electronic applications.
Product Description
Vishay SA6.5CA-E3/54 is a 1-element bi-directional transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and surges. It features a single diode in a rugged DO-204AC axial leaded package with 2 pins, capable of dissipating peak pulse power of 500 W. This diode effectively clamps voltage transients to safe levels, extending the life and reliability of your circuitry.
The device has a minimum breakdown voltage (Vbr) of 7.22 V and a maximum reverse standoff voltage (Vwm) of 6.5 V, with a clamping voltage (Vc) of 11.2 V to limit transient voltages. It supports a maximum peak pulse current (Ippm) of 44.7 A, enabling it to withstand high current surges. This makes it suitable for industrial, automotive, and consumer electronic systems requiring transient voltage protection.
Designed for through-hole mounting, the compact axial DO-204AC package measures 7.6 mm in length, 3.3 mm in width and height, with a diameter of 3.6 mm. It operates reliably in extreme temperature conditions from -55°C up to 175°C, enabling usage in harsh environments. The diode complies with the automotive qualification AEC-Q101, ensuring high quality and reliability standards for automotive electronics.
Typical applications include protection for power supplies, telecommunication equipment, industrial control systems, and automotive electronic circuits. With its robust electrical ratings and industry-standard packaging, the Vishay SA6.5CA-E3/54 diode is ideal for transient suppression tasks mitigating electrostatic discharge (ESD) and voltage spikes.
Single-element bi-directional TVS diode offering 500 W peak pulse power. Axial leaded DO-204AC package for easy through-hole installation. Breakdown voltage of 7.22 V and clamping voltage of 11.2 V provide precise voltage suppression.
Wide operating temperature range: -55°C to 175°C for reliable performance. Automotive compliant (AEC-Q101) for enhanced quality assurance. Peak pulse current capacity of 44.7 A resists high surge events. Compact dimensions suitable for space-constrained electronics.
Designed for ESD protection in industrial, automotive, and consumer applications. Manufactured in China to Vishay’s strict quality control procedures. Explore more Vishay TVS Diodes and ensure your systems’ safety and compliance with industry standards on EnvMart.
