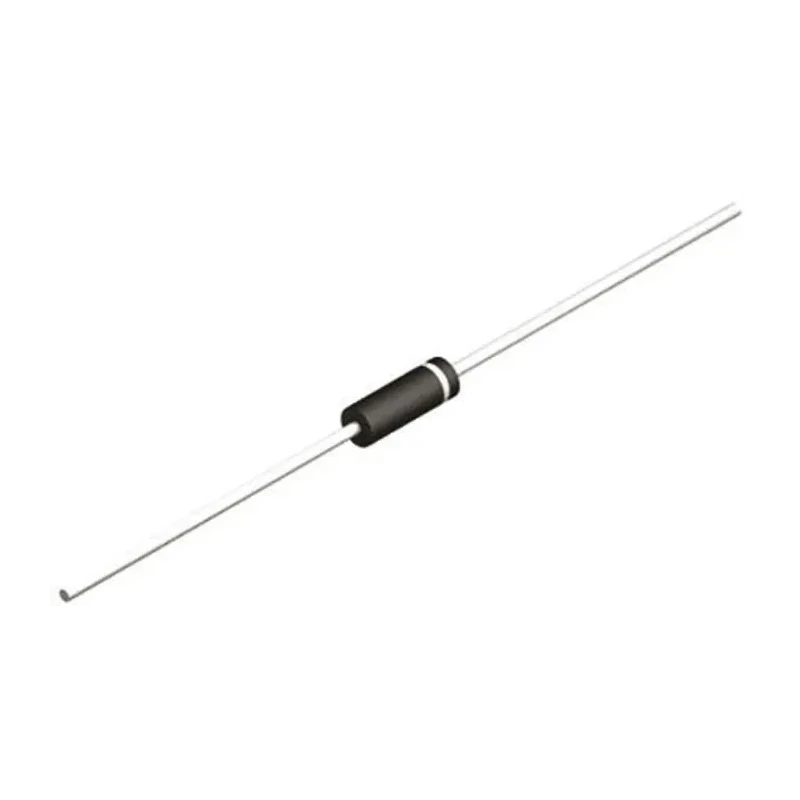

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW, 2-Pin, Through Hole Mount 1N6270A-E3/54

Vishay 1N6270A-E3/54 is a single-element uni-directional transient voltage suppressor (TVS) diode with a peak pulse power dissipation of 1.5 kW. Designed with through-hole mounting and a compact 1.5KE axial package, this diode offers robust protection for sensitive electronic components against voltage spikes and transient surges.

The diode features a minimum breakdown voltage of 8.65 V with a clamping voltage of 13.4 V, making it well-suited for board-level over-voltage protection in industrial, automotive, telecommunications, and consumer electronics applications. Its uni-directional configuration ensures that it safeguards circuits from potentially damaging positive voltage surges.

With a maximum peak pulse current capability of 112 A and an operating temperature range from -55°C to 175°C, the 1N6270A-E3/54 delivers reliable performance in demanding environments. It is additionally compliant with the automotive AEC-Q101 standard, confirming its suitability for automotive electronics systems requiring high reliability and automotive-grade performance.

Constructed in China using Vishay's semiconductor expertise, this TVS diode integrates ESD protection, ensuring devices maintain integrity during electrostatic discharge events. The diode's 2-pin design and standardized axial 1.5KE package facilitate easy integration onto printed circuit boards.

Single diode configuration for transient voltage suppression. Uni-directional design suitable for protecting sensitive electronics. Minimum breakdown voltage of 8.65 V ensures reliable clamping. Peak pulse power dissipation rated at 1.5 kW for high energy absorption.

Compact axial package (1.5KE) with dimensions 9.5 mm length and 5.3 mm diameter. Maximum peak pulse current of 112 A for transient event management. Operating temperature range from -55°C to 175°C for harsh environments.

ESD protection capability enhances component longevity. Complies with automotive standard AEC-Q101, suitable for automotive applications. Manufactured in China with high-quality Vishay semiconductor technology.

This Vishay TVS diode is ideal for industrial electronics, automotive systems, telecommunications equipment, and various power electronics devices requiring transient voltage suppression. Ensure enhanced circuit protection with the reliable 1N6270A-E3/54 TVS diode from Vishay available for efficient insertion into your production lines.
