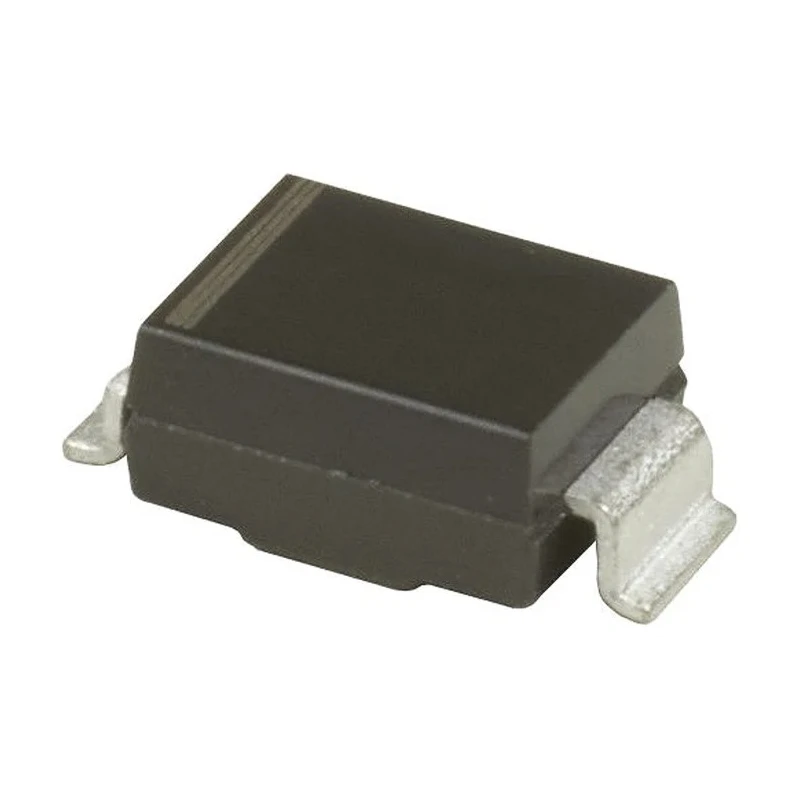

Vishay 1-Element Uni-Directional Transient Voltage Suppressor 600 W, Surface Mount DO-215AA Package SMBG5.0A-E3/52
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.21mm |
| Length | 4.57mm |
| Model | SMBG5.0A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-215AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 65.2A |
| Maximum Reverse Leakage Current | 800μA |
Key Features
- Single diode configuration for uni-directional transient voltage suppression.
- Peak pulse power dissipation of 600 watts ensuring robust surge protection.
- Maximum reverse stand-off voltage of 5 volts with minimum breakdown voltage of 6.4 volts.
- Compact DO-215AA package with dimensions approximately 4.57 mm length, 3.94 mm width, and 2.21 mm height.
- Temperature operating range from -55 °C to 150 °C appropriate for diverse industrial environments.
- Includes ESD protection and conforms to automotive standard AEC-Q101 for high reliability.
- Maximum peak pulse current rating of 65.2 A for transient suppression.
- Low leakage current of 800 μA and fast response time for efficient transient voltage clamping.
Product Description
Vishay SMBG5.0A-E3/52 is a high-performance 1-Element Uni-Directional Transient Voltage Suppressor designed to protect sensitive electronic components from voltage spikes and surges. Rated at 600 W peak pulse power dissipation, this device operates reliably in harsh industrial, automotive, and consumer electronics environments. It features a single diode configuration in a compact surface mount DO-215AA package, enabling easy integration on printed circuit boards.
Its uni-directional design provides efficient suppression of positive transient voltages with a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V. The fast response time and low resistance ensure minimal energy loss during transient events. The device withstands peak pulse currents up to 65.2 A, making it suitable for robust electrical protection solutions.
The SMBG5.0A-E3/52 operates over a wide temperature range from -55 °C up to 150 °C which makes it ideal for automotive applications conforming to AEC-Q101 standards. The device’s small form factor with typical dimensions of 4.57 mm length, 3.94 mm width, and 2.21 mm height, helps maintain compact PCB layouts while providing effective transient voltage suppression.
Single 1-element diode configuration provides robust uni-directional transient voltage suppression. 600 W peak pulse power rating delivers protection against high surge energies. Low reverse leakage current of 800 μA minimizes standby power dissipation.
Compact DO-215AA surface mount package supporting automated PCB assembly. Wide operating temperature range ensures reliable performance in harsh environments. Compliant with automotive AEC-Q101 standard for quality assurance.
Fast response to transient voltage spikes for enhanced circuit protection. Ideal for use in industrial, automotive, consumer electronics, and power supply systems. Manufactured in China with quality controlled processes.
This transient voltage suppressor is a critical component for safeguarding sensitive electronic devices from voltage transients caused by lightning, electrostatic discharge, and switching operations. Its high power rating and reliable operation extend device lifetimes and reduce system downtime in sectors including industrial machinery, automotive electronics, telecommunications, HVAC control systems, and consumer electronics.
Explore the Vishay product range and other high-quality TVS Diodes on EnvMart for your industrial and commercial applications requiring reliable overvoltage protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 600 watts, ensuring robust surge protection.
The dimensions of the DO-215AA package are approximately 4.57 mm in length, 3.94 mm in width, and 2.21 mm in height.
It has a maximum peak pulse current rating of 65.2 A for transient suppression.
Yes, it conforms to the automotive standard AEC-Q101 for high reliability.
It uses a single diode configuration for uni-directional transient voltage suppression.
The clamping voltage (VC) is 9.2 volts.
The test current for this model is 10 mA.
It is suitable for applications in industrial, automotive, consumer electronics, and power supply systems.
This model supports surface mounting, facilitating automated PCB assembly.
