Vishay Bridge Rectifier 1000 V 200 A 4-Pin Single Through Hole GBU Series GBU8M-E3/45

Free Delivery in India | Lowest Global Shipping Charges

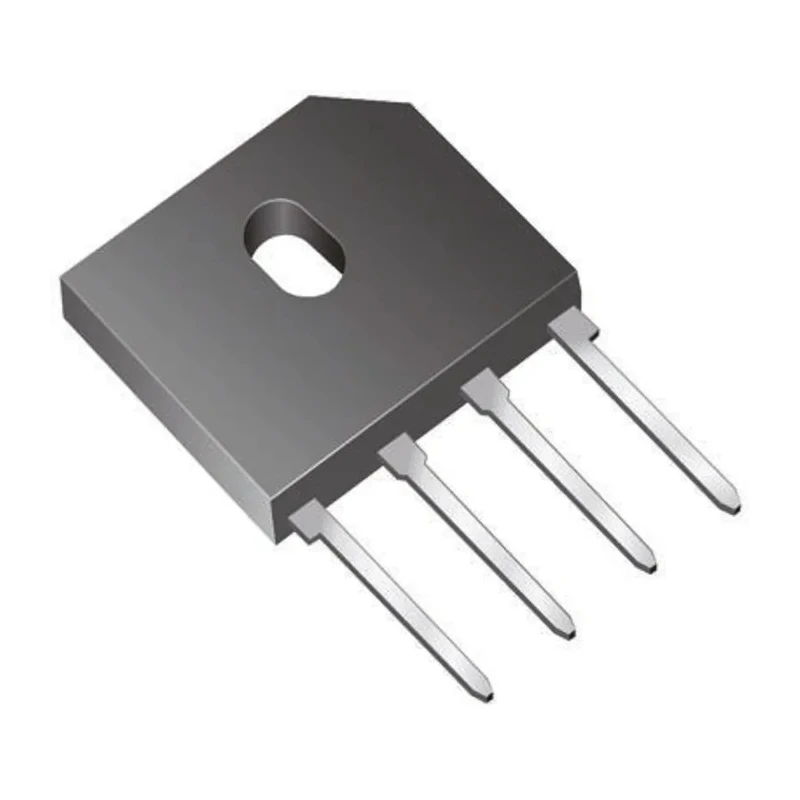

Vishay Bridge Rectifier 1000 V 200 A 4-Pin Single Through Hole GBU Series GBU8M-E3/45

Name: Vishay Bridge Rectifier 1000 V 200 A 4-Pin Single Through Hole GBU Series GBU8M-E3/45
Brand: Vishay
SKU: 353063
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	18.8mm
Length	22.3mm
Model	GBU8M-E3/45
Width	3.56mm
Mount Type	Through Hole
Series	GBU8
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	700-5462 Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: GBU8M-E3/45
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	8A
Peak Forward Voltage Vf	1V

Key Features

Designed with glass passivated junction for enhanced durability.
Supports a forward current of 8 A and peak surge current up to 200 A.
Operates within a temperature range of -55°C to 150°C.
Soldering pins ensure secure through-hole PCB mounting.
Excellent dielectric strength with 1500 Vrms case rating.
Single-phase, 4-pin configuration suitable for SIL mounting.
Low peak forward voltage of 1 V and minimal peak reverse current of 5 μA.
Suitable for industrial, electronics manufacturing, and power electronics applications.

Product Description

Vishay GBU8M-E3/45 Bridge Rectifier is a high-performance discrete semiconductor device designed for converting alternating current (AC) input into direct current (DC) output via full-wave rectification. Featuring a glass passivated junction, this single-phase bridge rectifier operates efficiently with a peak reverse repetitive voltage rating of 1000 V and maximum forward current of 8 A.

The device showcases a robust SIL PCB mounting GBUN package with through-hole soldering pins to provide mechanical stability and reliable electrical connections. Its compact size (length 22.3 mm, width 3.56 mm, height 18.8 mm) makes it suitable for integration into space-constrained electronics and power supply systems.

With a peak non-repetitive forward surge current capacity of 200 A and operating temperature range from -55°C to 150°C, the GBU8M-E3/45 ensures high surge tolerance and thermal reliability. It features low forward voltage drop (1 V) and minimal leakage current (5 μA), enhancing efficiency and reducing power loss in industrial, electronics assembly, HVAC, and laboratory equipment applications.

The bridge rectifier's high case dielectric strength of 1500 Vrms provides excellent insulation, enabling safe operation under demanding electrical environments. This product is ideal for power conversion, motor control circuits, and other full-wave rectification needs in commercial and manufacturing settings.

Glass passivated junction ensures durability and performance. 8 A forward current and 200 A peak surge capacity. Through-hole GBUN package with 4 pins for PCB mounting. Operating temperature from -55°C to 150°C. Compact dimensions facilitating easy PCB integration.

Low forward voltage and leakage current optimize power efficiency. High dielectric strength of 1500 Vrms promotes safety. Single-phase bridge rectifier for full-wave rectification applications. Suitable for industrial, electronics, HVAC, and laboratory use.
