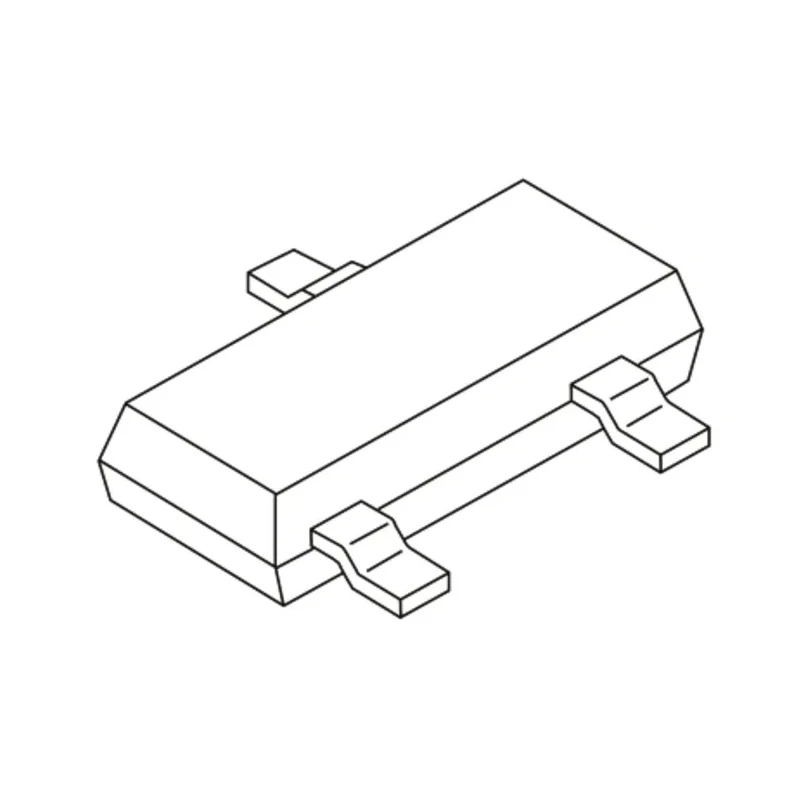

Nexperia 2-Element Uni-Directional ESD Protection Array 200W 3-Pin SOT-23 NUP1301,215

Nexperia NUP1301,215 2-Element Uni-Directional ESD Protection Array provides reliable electrostatic discharge protection with a peak pulse power dissipation of 200 W in a small footprint 3-pin SOT-23 surface mount package. This device is engineered for ultra-low capacitance and is suitable for protecting high-speed signal lines in rail-to-rail configuration.

The diode configuration is series uni-directional, providing focused protection against ESD events with a low clamping voltage of 20 V to prevent signal distortion and damage. Its maximum reverse stand-off voltage is 80 V, making it suitable for a variety of electronic applications requiring robust transient voltage suppression.

Operating reliably in harsh environments, the device supports a wide operating temperature range from -55°C to 150°C, meeting industrial standards. It also holds the automotive AEC-Q101 qualification, making it ideal for automotive and other demanding sectors.

The compact SOT-23 package with a pin count of 3 facilitates easy surface mounting on printed circuit boards, enabling efficient circuit protection without occupying significant PCB space. The NUP1301 series ensures ultra-low capacitance to maintain signal integrity on sensitive lines.

Uni-directional diode configuration ensuring precise electrostatic discharge protection. 200 W peak pulse power dissipation capacity accommodates intense transients. Compact 3-pin SOT-23 surface mount package for space-saving PCB layouts.

Wide temperature operation range from -55°C to 150°C supports industrial applications. Low clamping voltage mitigates potential signal interference. Maximum reverse stand-off voltage of 80 V suitable for diverse voltage environments.

Automotive grade AEC-Q101 certified to meet stringent automotive requirements. Ultra-low capacitance preserves high-speed data signal integrity. Designed to protect a single signal line in rail-to-rail configuration. Peak pulse current of 11 A ensures robust transient suppression.

This device is widely used in industrial, automotive, communications, and consumer electronics for reliable surge protection. It provides a cost-effective and efficient solution for shielding sensitive electronic equipment from damaging electrostatic discharges and transient voltage spikes. Environmentally, it complies with RoHS directives ensuring safe usage and disposal.

For further detail, consult technical datasheets and application notes from Nexperia. Explore our extensive range of TVS Diodes for comprehensive over-voltage protection solutions across different applications on EnvMart.
