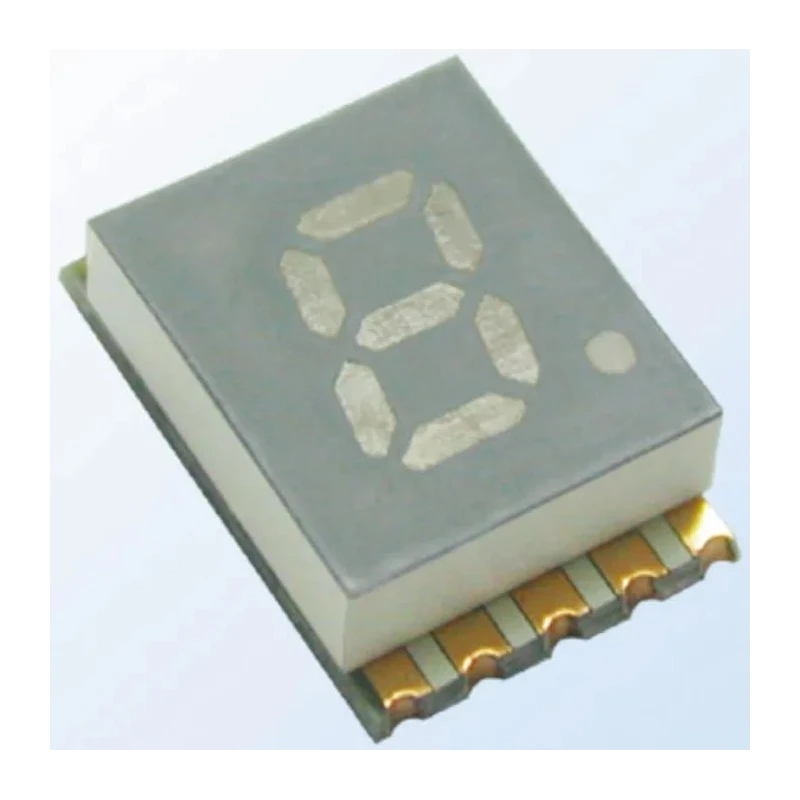

Kingbright 1 Digit 7 Segment Orange LED Display Anode Surface Mount 10.2 mm Character Height KCSA04-106

Kingbright KCSA04-106 7 Segment LED Display Orange is a high-quality single digit LED display designed for electronic indication and display applications. Featuring a 10.2 mm character height, this surface mount component delivers bright orange illumination with a luminous intensity of 60mcd, suitable for clear visibility in various industrial and commercial uses.

The display utilizes a common anode configuration, facilitating easy integration into digital circuits and display boards. Its grey face with white segments ensures optimal contrast and character appearance, improving readability across different lighting environments. With a character width of 5.6 mm and external dimensions of 9.1 mm (width) by 15 mm (height) by 3.8 mm (depth), the compact size is ideal for space-constrained applications.

Engineered to withstand environmental stress, the LED operates reliably within a temperature range of -40°C to 85°C. It has a forward voltage of 2.1V and power dissipation of 75 mW, supporting a maximum forward current of 30 mA, which ensures low power consumption and long component life. The right side decimal orientation enhances numerical display options.

Kingbright's KCSA04-106 is RoHS compliant and mechanically robust, making it suitable for industrial, laboratory instrumentation, automotive dashboards, and consumer electronics applications. Its easy surface mount method allows efficient assembly on PCBs or sockets, improving production efficiency.

The display features an orange LED color with a high luminous intensity of 60mcd. Common anode connection facilitates straightforward circuit integration. The grey face with white segments ensures excellent contrast and character clarity.

Operates efficiently with low power dissipation of 75 mW and forward voltage of 2.1V. Compact external dimensions enable use in space-limited setups. Designed for harsh environments with operating temperatures from -40°C to 85°C.

Surface mount mount type supports easy PCB assembly. Right side decimal orientation supports flexible numeric display.

This LED display is ideal for electronics manufacturing, digital instrumentation, industrial control panels, and any application requiring clear numeric display with minimal power consumption. Explore more LED Displays and electronic components within EnvMart’s extensive catalog to meet your industrial and commercial needs.
