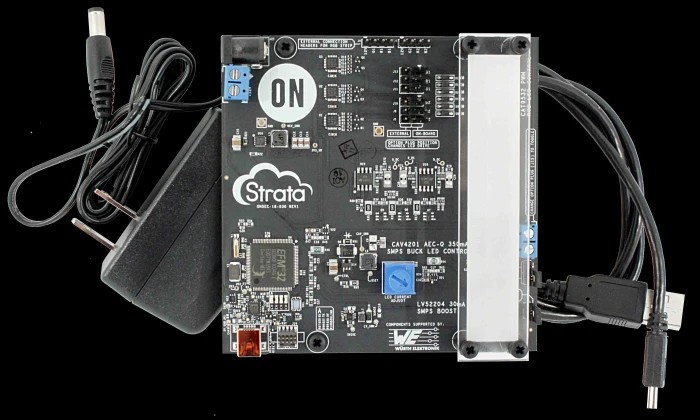

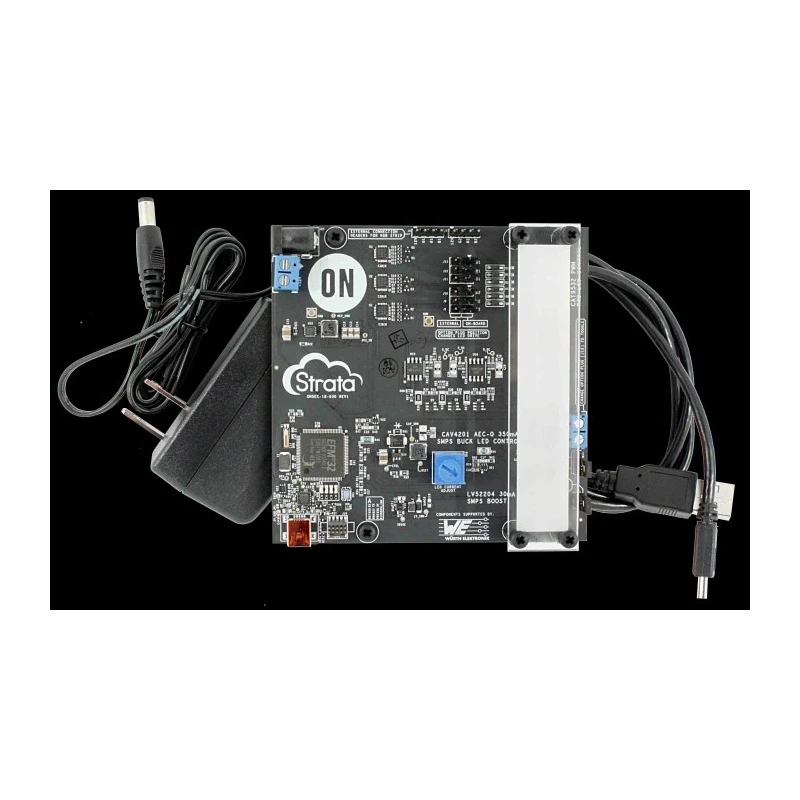

onsemi Strata Enabled LED Evaluation Board LED Driver Evaluation Kit for CAT9532HV6I-GT2 STR-4LED-SOL-EVAL-EVK
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | STR-4LED-SOL-EVAL-EVK |
| For Use With | Full Control and Telemetry |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | CAT9532HV6I-GT2, LV52204MTTBG, LM358ADR2G, CAV4201TD-GT3 |
| Kit Name | Strata Enabled LED Evaluation Board |
| LED Technology | LED Controller |
Key Features
- Includes buck, boost, PWM, and linear LED control methodologies.
- Features CAT9532s for dynamic RGB color mixing with over 16 million color options.
- Uses analog linear components for constant current LED driving.
- CAV4201 buck converter provides automotive-qualified, high efficiency and current output.
- LV52204 boost converter supplies high output voltage for low current backlighting.
- Supports external LED hardware connections for customization.
- Compliant with RoHS standards for environmental safety.
Product Description
onsemi STR-4LED-SOL-EVAL-EVK is a Strata Enabled LED Evaluation Board designed as a comprehensive LED Driver Evaluation Kit. The board integrates multiple LED control technologies including buck, boost, PWM, and linear solutions using devices CAV4201, LV52204, CAT9532, and LM358 respectively. It provides full control and telemetry support enabled by Strata software for interactive LED management.
The evaluation kit utilizes CAT9532 devices offering dynamic RGB color mixing via I2C interface, allowing quick color changes and access to over 16 million color combinations. The linear control solution applies analog components to provide a steady current to LEDs ensuring stable illumination.
The buck converter solution, powered by CAV4201, delivers a step-down SMPS high current output suitable for automotive applications, ensuring efficiency and durability. The boost converter LV52204 supplies elevated voltage outputs ideal for low current backlighting applications with high efficiency.
The board includes multiple external connection points to integrate user-specific LED hardware for flexible development and testing. This evaluation board complies with RoHS environmental and safety standards.
This LED evaluation tool is ideal for use in industrial, laboratory, and product development environments requiring precise, efficient LED control with advanced telemetry features. It supports a variety of applications including display backlight testing, automotive LED management, and smart lighting solutions.
Includes buck, boost, PWM, and linear LED control methodologies. Features CAT9532s for dynamic RGB color mixing with over 16 million color options. Uses analog linear components for constant current LED driving. CAV4201 buck converter provides automotive-qualified, high efficiency and current output.
LV52204 boost converter supplies high output voltage for low current backlighting. Supports external LED hardware connections for customization. Compliant with RoHS standards for environmental safety. Explore more LED Development Tools and electronic component evaluation kits at EnvMart for advanced project and product design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation kit supports buck, boost, PWM, and linear LED control methodologies.
The CAT9532 device allows for dynamic RGB color mixing with over 16 million color options.
The CAV4201 buck converter provides a step-down SMPS high current output suitable for automotive applications, ensuring high efficiency.
The CAT9532 uses an I2C interface for quick color changes and control.
The board includes multiple external connection points to integrate user-specific LED hardware for flexible development and testing.
Yes, it complies with RoHS standards for environmental safety.
The country of origin for this evaluation kit is India.
This evaluation kit is suitable for applications including display backlight testing, automotive LED management, and smart lighting solutions.
The featured devices in this kit include CAT9532HV6I-GT2, LV52204MTTBG, LM358ADR2G, and CAV4201TD-GT3.
It provides full control and telemetry support enabled by Strata software for interactive LED management.
This evaluation kit is classified as an Evaluation Board.
The LV52204 boost converter supplies high output voltage for low current backlighting applications with high efficiency.
