STMicroelectronics STEVAL LED Driver Evaluation Board for LED2001 with PWM Dimming, 3.0 V to 18 V Input, 850 STEVAL-ILL054V1

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics STEVAL LED Driver Evaluation Board for LED2001 with PWM Dimming, 3.0 V to 18 V Input, 850 STEVAL-ILL054V1

Name: STMicroelectronics STEVAL LED Driver Evaluation Board for LED2001 with PWM Dimming, 3.0 V to 18 V Input, 850 STEVAL-ILL054V1
Brand: STMicroelectronics
SKU: 161755
Price: 56.25 USD
Availability: InStock



Category LED Development Tool Brand STMicroelectronics Condition New

Specifications

Country of Origin	Italy
Brand	STMicroelectronics
Model	STEVAL-ILL054V1
For Use With	Dimming LED Driver
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	LED2001
Kit Name	STEVAL
LED Technology	LED Driver

Key Features

Operates over a 3.0 V to 18 V input voltage range for versatile applications.
Fixed switching frequency of 850 kHz ensures compact design with ceramic capacitor compatibility.
Adjustable current capability up to 4 A DC with 100 mV typical current sense voltage drop.
Integrated protections including thermal shutdown, overcurrent, and output short-circuit safeguards.
Offers ±7% output current accuracy for stable LED brightness control.
Synchronous rectification enhances efficiency in power conversion.
Kit classified as an evaluation board for effective product testing and development.
Designed for dimming LED driver applications, especially with LED2001 device.

Product Description

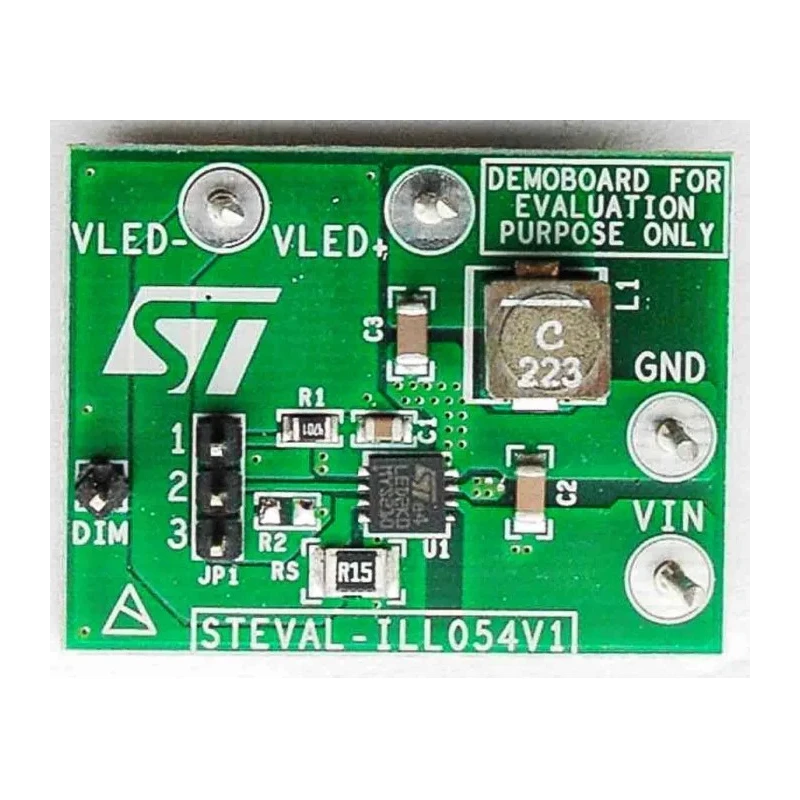

STMicroelectronics STEVAL-ILL054V1 LED Driver Evaluation Board is engineered for industrial and laboratory evaluation of the LED2001 monolithic step-down DC-DC converter. This board features a fixed switching frequency of 850 kHz, enabling a compact footprint and compatibility with ceramic output capacitors.

The device delivers a precise constant current source adjustable up to 4 A DC, making it suitable for LED dimming applications with PWM brightness control. Its regulated output current is set through a sensing resistor connected to the feedback pin.

Designed with comprehensive safety features, the board provides thermal shutdown, output short-circuit, and overcurrent protection for reliable operation in demanding environments.

This evaluation kit operates within an input voltage range of 3.0 V to 18 V, allowing integration into various power supply scenarios. With ±7% output current accuracy and a low current sense voltage drop of 100 mV, it ensures consistent LED illumination levels.

The synchronous rectification built into the design boosts efficiency by reducing power losses during DC-DC conversion. This board is ideal for industrial, laboratory, and educational uses where precise LED driver performance is critical.

Operates over a 3.0 V to 18 V input voltage range for versatile applications. Fixed switching frequency of 850 kHz ensures compact design with ceramic capacitor compatibility. Adjustable constant current driver up to 4 A DC with 100 mV sensing voltage.

Integrated protections including thermal shutdown, overcurrent, and output short-circuit. Provides ±7% output current accuracy for stable lighting applications. Features PWM dimming for user-controlled LED brightness adjustment.

Complies with RoHS standards and manufactured in Italy. Perfect for evaluation and development of LED dimming circuits using the LED2001 device. Set contains 1 evaluation board designed by STMicroelectronics for LED driver testing and development.
