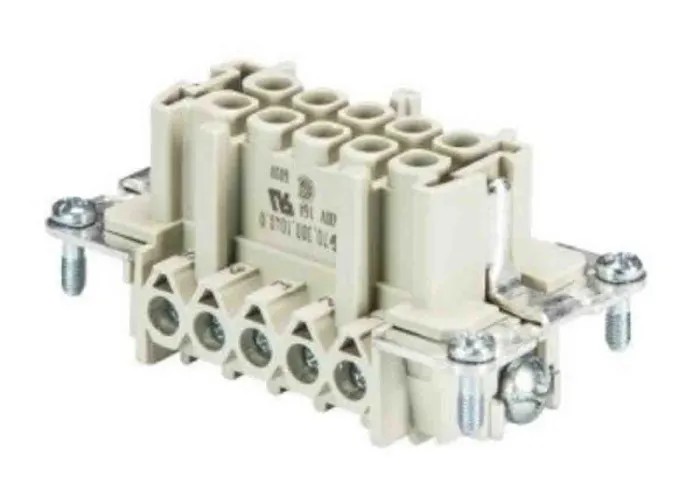

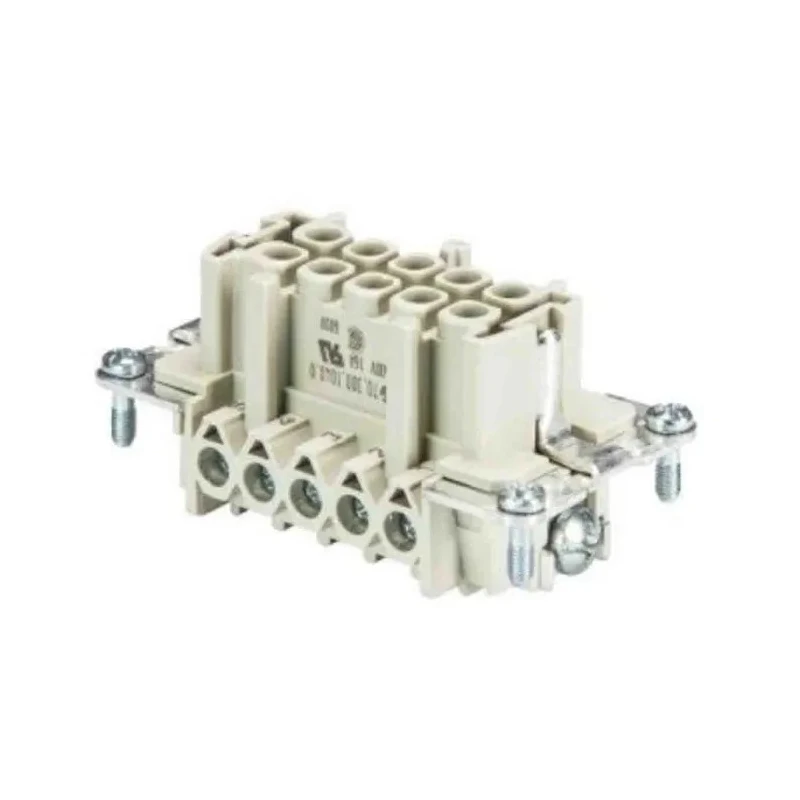

Wieland Panel Mount Screw Insert, Female, 10 Way, 16A, 500V, Revos BASIC 70.300.1040.0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Wieland |
| Orientation | Straight |
| Current | 16A |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Series | Revos BASIC |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | DIN EN 61984, CSA, UL |
| Pole Format | 10+E |
| Contact Plating | Tin Plated |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Panel mount female insert designed for heavy duty power applications.
- Features screw termination for secure and reliable connections.
- Supports up to 10 contacts plus ground for efficient wiring.
- Rated for 16A current and 500V voltage for industrial performance.
- Operates in temperatures from -40°C to 120°C, meeting DIN EN 61984, CSA, and UL standards.
- Contact material is copper alloy, tin plated for durability.
- Straight orientation and two-row design offer streamlined installation.
- Flammability class V0 according to UL94 ensures enhanced safety.
Product Description
The Wieland 70.300.1040.0 panel mount screw insert is a robust heavy duty power connector engineered for demanding industrial, commercial, and automation environments. It provides a reliable female connection point with screw termination and is part of the Revos BASIC series, delivering both flexibility and resilience in power distribution assemblies.
This connector accommodates up to 10 contacts plus ground, ensuring efficient connectivity for multi-circuit installations. It is rated for a maximum current of 16A and voltage up to 500V, supporting higher power requirements in control panels, machinery, and distribution systems. Its straight orientation and compact two-row design simplify installation and provide a neat layout for wiring.
The insert employs copper alloy contacts with tin plated surfaces, delivering superior conductivity and corrosion resistance. Its construction withstands harsh operational conditions, including extreme temperatures from -40°C to 120°C, and it meets critical standards such as DIN EN 61984, CSA, and UL for electrical safety and compliance. The V0 flammability class per UL94 enhances fire safety, making it suitable for use in sensitive industrial environments.
Screw termination ensures robust mechanical and electrical connection, supporting quick installation and secure wire protection. The connector’s panel mount capability offers direct integration into enclosure systems or equipment fronts. Its female configuration and straight orientation allow compatibility with a wide range of mating plugs and harnesses.
Common applications include industrial automation panels, power distribution units, heavy machinery, HVAC controls, and factory electrical systems, where reliable, high-current, multi-circuit connectors are essential for safety and performance.
Explore the full range of Wieland panel connectors and related accessories in Heavy Duty Power Connector categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this panel mount screw insert is 16A.
This connector supports a voltage of up to 500V.
It can accommodate up to 10 contacts plus ground.
The operating temperature range for this connector is from -40°C to 120°C.
This connector uses screw termination for secure connections.
The contacts are made from copper alloy and are tin plated for enhanced conductivity and corrosion resistance.
This product meets DIN EN 61984, CSA, and UL standards for electrical safety and compliance.
It features a straight orientation and a two-row design for streamlined installation.
Yes, it is designed for demanding industrial, commercial, and automation environments.
The flammability class of this connector is V0 according to UL94, ensuring enhanced safety.
This connector supports panel mount installation for direct integration into enclosures or equipment fronts.
This connector belongs to the Revos BASIC series.
