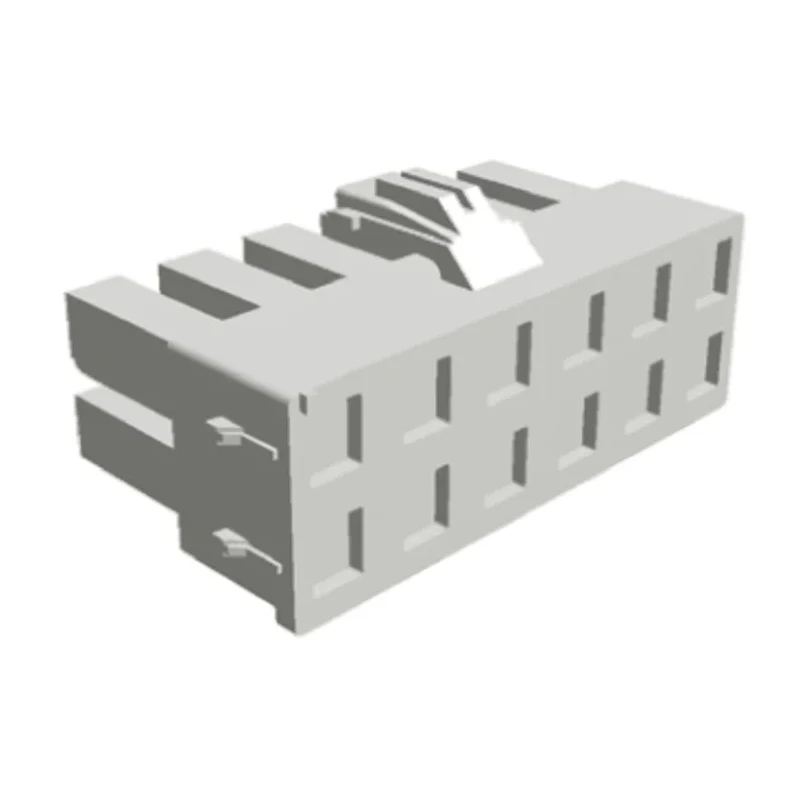

TE Connectivity Power Double Lock Male Connector Housing 12 Way 2 Row Straight 6.5 mm Pitch 917354-1

TE Connectivity 917354-1 Power Double Lock Male Connector Housing is a precision engineered connector housing designed for high-reliability wire-to-board power connection applications. It features 12 contact positions arranged in 2 rows with a 6.5 mm pitch, optimized to provide robust and secure connectivity in power circuit designs.

The housing is manufactured from high-quality nylon material, offering excellent electrical insulation and mechanical protection. Its straight cable mounting orientation allows for convenient and reliable installation in confined space assemblies.

This connector housing incorporates a double lock plate system that ensures full mating of contacts and prevents partial or loose connections, enhancing overall system safety and performance. The compact form factor makes it highly suitable for use in consumer appliances such as refrigerators, air conditioners, washing machines, gas equipment, photocopiers, and automatic vending machines.

TE Connectivity’s Power Double Lock series connectors are widely recognized for their durability, ease of mating, and secure locking mechanisms. This male connector housing works in conjunction with compatible crimp contacts (purchased separately) to ensure optimized electrical performance.

Length and width dimensions of 20.6 mm and 38.5 mm respectively allow for efficient PCB layout designs without compromising functionality. The product complies with industry-standard specifications for Power Connector housings, although no specific standards or approvals are cited.

Constructed from durable nylon housing material ensuring electrical insulation. Designed for straight orientation and cable mount applications. Compatible with Centerline Power Double Lock Wire-to-Board Connectors. Offers secure mating with double lock plate to prevent partial engagement.

Compact design suited for power circuits in appliances like refrigerators and air conditioners. Supports 12-way connections for complex wiring setups. Length of 20.6 mm and width of 38.5 mm for effective space utilization.

This connector housing is ideally suited for industrial electronics, HVAC equipment, manufacturing machinery, and other commercial power applications where secure and reliable power connections are critical.
