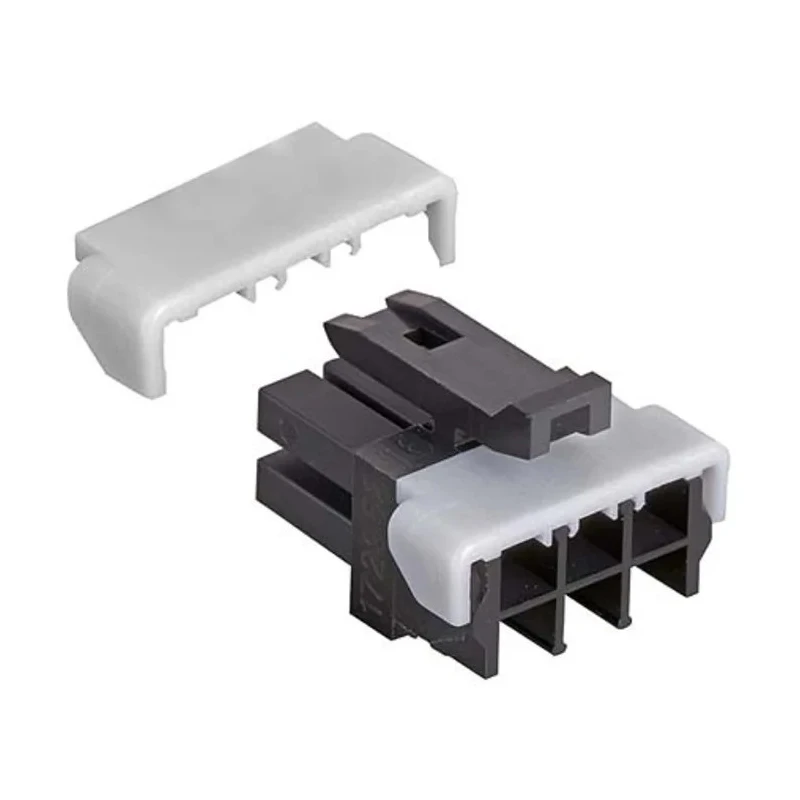

Molex Micro-Fit TPA Female Connector Housing 3 mm Pitch 8 Way 2 Row Straight 172952-0801
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 12.85mm |
| Width | 6.86mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro-Fit TPA |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Micro-Fit RMF Reduced Mating Force 46235, Micro-Fit 3.0 FeMale Crimp Terminal 43030 |
| Number of Contacts | 8 |
| Connector Gender | Female |
Key Features
- Features a TPA with integrated secondary lock to prevent terminal backouts.
- One-piece housing design eliminates the need for secondary parts in single row versions.
- Polarized nylon housing prevents accidental mismating and provides secure locking latch connection.
- Contacts fully isolated within housing to prevent arcing.
- Compatible with Micro-Fit RMF 46235 and Micro-Fit 3.0 Female Crimp Terminal 43030.
- Suitable for consumer appliances, computing, telecommunications, and automotive applications.
- Compact dimensions of length 12.85 mm and width 6.86 mm.
- Manufactured in China and supplied new for reliable quality.
Product Description
Molex 172952-0801 Micro-Fit TPA Female Connector Housing is an 8 way, 2 row straight connector housing designed with a 3 mm pitch. The housing is constructed of nylon providing durability and electrical isolation.
It features a Terminal Position Assurance (TPA) with an integrated secondary lock that reduces terminal backouts caused by improper assembly. The single row version incorporates the TPA into a one-piece housing, eliminating the need for additional secondary parts that can be misplaced.
The polarized design prevents accidental mismating while the locking latch ensures a secure mating connection. All contacts within the housing are fully isolated to prevent electrical arcing, assuring safety and performance reliability.
This connector housing is intended for cable mounting and is compatible with Micro-Fit RMF Reduced Mating Force (RMF) 46235 and Micro-Fit 3.0 Female Crimp Terminals 43030. It is highly suitable for use in industries including consumer and home appliances, computing and data equipment such as desktops and UPS systems, telecommunications including servers and routers, as well as automotive harnesses and internal non-sealed devices.
TPA with integrated secondary lock reduces terminal back-outs for reliable assembly. One-piece housing design eliminates the need for secondary locking components in single row versions. Polarized nylon housing prevents mismating and provides locking latch secure connection.
Fully isolated contacts prevent arcing within the housing. Compatible with Micro-Fit RMF 46235 and crimp terminals 43030 for flexible system integration. Compact housing dimension of 12.85 mm length and 6.86 mm width for space-efficient installation.
Manufactured in China, ensuring quality compliance for diverse industrial applications. Offered in new condition for guaranteed reliability.
This Micro-Fit TPA female connector housing is an essential component in electronic assemblies requiring robust, secure female connector solutions with reduced assembly error. EnvMart provides this authentic Molex product for electronics manufacturing, repair, and design projects requiring reliable wire housing solutions.
Explore more products in our PCB Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3 mm.
This model supports 8 contacts.
The dimensions are 12.85 mm in length and 6.86 mm in width.
The housing is constructed from nylon, providing electrical isolation.
This connector housing is designed for cable mounting.
Yes, the housing is polarized to prevent accidental mismating.
It is suitable for consumer appliances, computing, telecommunications, and automotive applications.
The orientation of this connector housing is straight.
It is compatible with Micro-Fit RMF 46235 and Micro-Fit 3.0 Female Crimp Terminal 43030.
Yes, it features a Terminal Position Assurance (TPA) with an integrated secondary lock to reduce terminal backouts.
It is manufactured in China.
This model has 2 rows.
