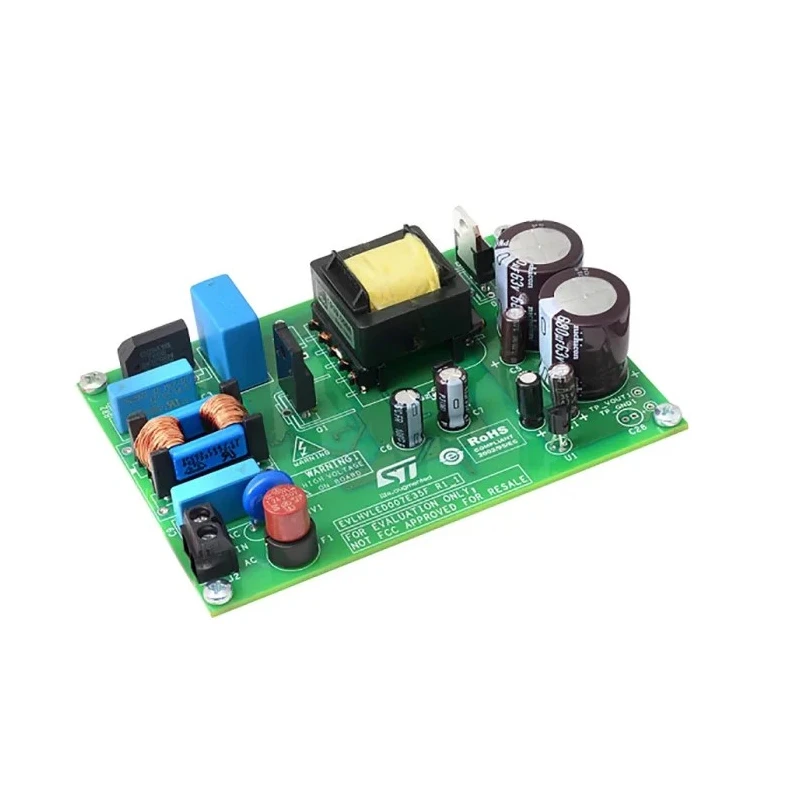

STMicroelectronics 35W LED Driver Evaluation Board for HVLED007 Safe Operation EVLHVLED007W35F
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | EVLHVLED007W35F |
| For Use With | Safe Operation in Lighting |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | HVLED007 |
| Kit Name | 35W LED driver |
| LED Technology | LED Driver |
Key Features
- Operates in transition mode (Quasi-Resonant) with a fly back converter topology.
- Fast start-up and protection features with auto-restart functionality ensure safe lighting operation.
- AC input voltage range from 90 V to 265 V, supporting 45 to 66 Hz frequency.
- Isolated DC bus voltage providing 48 V at maximum 730 mA output.
- High power factor fly back with very low total harmonic distortion (THD) for efficient performance.
- Power factor greater than 0.99 at 100 VAC and greater than 0.98 at 230 VAC.
- Efficiency exceeding 89% at full output load.
- Certified RoHS compliant for environmental safety.
Product Description
STMicroelectronics EVLHVLED007W35F is a 35W LED Driver Evaluation Board engineered for safe and efficient operation in lighting applications. It uses a fly back converter operating in transition mode (Quasi-Resonant) providing a robust power solution for high voltage LED (HVLED) systems.
This evaluation kit features a fast start-up mechanism with protective auto-restart to prevent failure in various lighting environments. It accepts a wide AC input voltage range from 90 V to 265 V and supports standard power frequencies between 45 and 66 Hz.
The board provides an isolated DC bus output voltage of 48 V with a maximum output current of 730 mA, making it suitable for driving medium power LED arrays. Its fly back topology ensures a high power factor (PF > 0.99 at 100 VAC and PF > 0.98 at 230 VAC) while maintaining very low total harmonic distortion (THD).
The efficiency of this evaluation board exceeds 89% at full load, ensuring minimal power loss and heat generation during operation. The kit complies with RoHS standards, guaranteeing it is environmentally safe and free from hazardous substances.
This LED driver evaluation kit is ideal for industrial, commercial, and laboratory lighting development and testing. It supports users in designing lighting systems with high efficiency, reliability, and safety.
Operates with Quasi-Resonant fly back converter technology for high efficiency. Wide AC input voltage range from 90 V to 265 V compatible with global standards. Isolated DC bus output voltage of 48 V at max 730 mA current.
High power factor with low harmonic distortion ensures compliance with electrical norms. Fast start-up and auto-restart protections enhance reliability in lighting applications. RoHS compliant for environmental and safety standards.
Suitable for use with HVLED007 featured devices. Evaluation board format facilitates easy integration and testing. Explore more STMicroelectronics LED driver evaluation kits and related lighting components on EnvMart for comprehensive lighting solutions and development tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 90 V to 265 V, supporting power frequencies between 45 and 66 Hz.
It provides an isolated DC bus output voltage of 48 V with a maximum output current of 730 mA.
The power factor is greater than 0.99 at 100 VAC and greater than 0.98 at 230 VAC, ensuring efficient performance.
The efficiency exceeds 89% at full output load, minimizing power loss during operation.
It features a fast start-up mechanism and protective auto-restart functionality to prevent failure in various lighting applications.
Yes, it is certified RoHS compliant, ensuring it is free from hazardous substances and environmentally safe.
This model is designed for safe operation with devices featuring the HVLED007.
It operates using a fly back converter topology in transition mode (Quasi-Resonant), providing a robust power solution.
It is ideal for industrial, commercial, and laboratory lighting development and testing.
The country of origin for this evaluation board is India.
This kit is classified as an Evaluation Board, specifically for a 35W LED driver.
The dimensions and weight of the evaluation board are not specified in the provided information.
