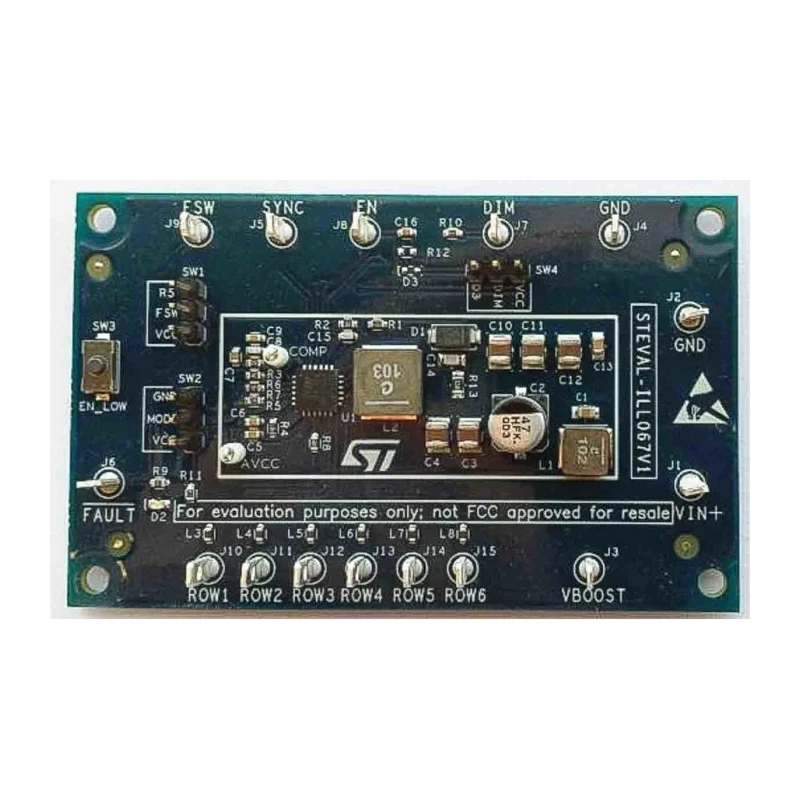

STMicroelectronics LED Driver Evaluation Board for ALED7707, 6-Channel 70mA Output, PWM Control, 6V-32V Input STEVAL-ILL067V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ILL067V1 |
| For Use With | LED Driver |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 196-1806Brand: STMicroelectronicsManufacturers Part No.: STEVAL-ILL067V1 |
| Kit Classification | Evaluation Board |
| Featured Device | ALED7707 |
| Kit Name | STEVAL |
| LED Technology | LED Driver |
Key Features
- Supports a wide DC input voltage range from 6 V to 32 V.
- Features six output channels with 70 mA nominal current each adjustable between 30 mA and 85 mA.
- PWM brightness control with 10 microseconds minimum dimming on-time.
- Drives up to 10 white LEDs per channel with 36 V overvoltage protection.
- Achieves over 90% efficiency at VIN=12 V, VBOOST=30 V, and 1 MHz switching frequency without snubber.
- Includes an on-board input filter to reduce conducted EMI.
- Open LED and LED short-circuit fault detection and management.
- Compact design ideal for automotive interior lighting and infotainment LCD backlighting.
Product Description
STMicroelectronics STEVAL-ILL067V1 LED Driver Evaluation Board utilizes the ALED7707 six-channel medium-current LED driver IC designed for applications requiring precise LED brightness control with high efficiency. The monolithic boost converter topology enables the supply voltage to the LEDs from a single power rail, facilitating ease of implementation in various systems. The evaluation board supports a wide DC input voltage ranging from 6 V to 32 V, suitable for automotive and industrial environments.
The device features six output channels capable of driving currents from 30 mA to 85 mA with a nominal current of 70 mA per channel. Brightness control is managed through PWM signals with a minimum dimming on-time of 10 microseconds, providing fine control over LED intensity. Each output channel can drive up to 10 white LEDs, protected against overvoltage conditions up to 36 V.
Efficiency exceeds 90% at 12 V input voltage, 30 V boost voltage, and a 1 MHz switching frequency without a snubber, highlighting its suitability for energy-conscious applications. An on-board input filter significantly reduces conducted electromagnetic interference, enhancing system robustness.
The board monitors open LED and LED short-circuit faults, offering reliable fault detection and management. This compact evaluation kit serves as a practical reference design for automotive interior lighting, infotainment LCD backlighting, and other multi-string LED lighting systems.
STMicroelectronics ensures quality with design and manufacturing in Italy, complying with RoHS standards.
Ideal for industrial, automotive, and commercial electronics development, the STEVAL-ILL067V1 aids engineers in prototyping and validating LED driver circuits. Its robust design and comprehensive features make it an essential tool for tackling medium-current LED driving challenges with ease and precision.
Explore additional LED development tools and evaluation boards at EnvMart for expanded solutions in LED control and power management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide DC input voltage range from 6 V to 32 V.
It features six output channels, each capable of driving a nominal current of 70 mA.
Brightness control is managed through PWM signals with a minimum dimming on-time of 10 microseconds.
Each output channel can drive up to 10 white LEDs.
The outputs are protected against overvoltage conditions up to 36 V.
It achieves over 90% efficiency at an input voltage of 12 V, a boost voltage of 30 V, and a switching frequency of 1 MHz without a snubber.
It includes open LED and LED short-circuit fault detection and management.
This evaluation board is designed and manufactured in Italy.
It complies with RoHS standards.
It is ideal for automotive interior lighting, infotainment LCD backlighting, and other multi-string LED lighting systems.
The nominal current for each output channel is 70 mA, adjustable between 30 mA and 85 mA.
Yes, it includes an on-board input filter to reduce conducted electromagnetic interference (EMI).
