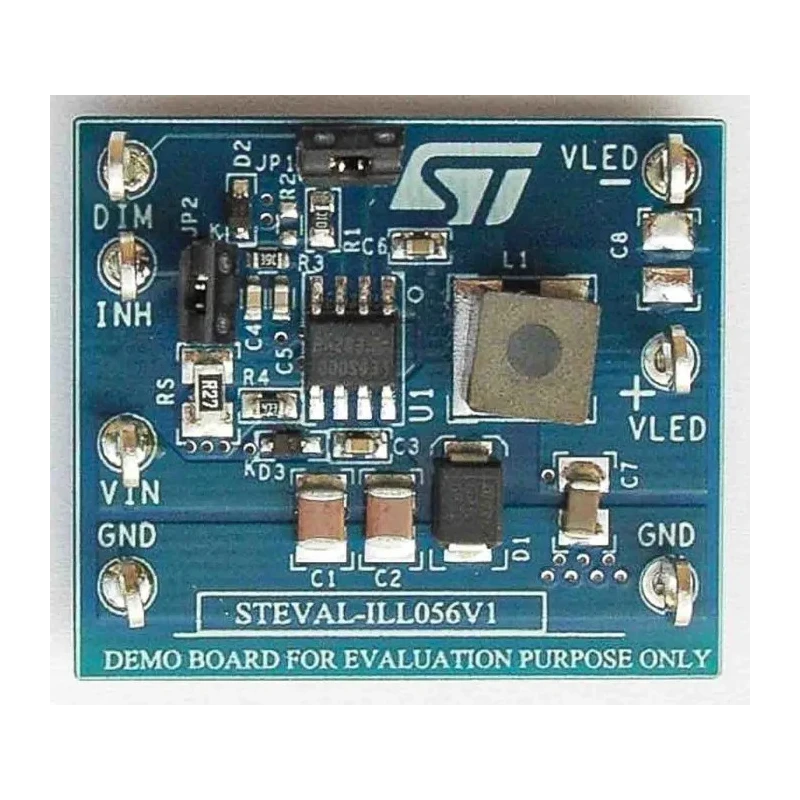

STMicroelectronics STEVAL LED Driver Evaluation Board for LED5000 with PWM Dimming Control STEVAL-ILL056V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ILL056V1 |
| For Use With | Dimming LED Driver |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 196-1803Brand: STMicroelectronicsManufacturers Part No.: STEVAL-ILL056V1 |
| Kit Classification | Evaluation Board |
| Featured Device | LED5000 |
| Kit Name | STEVAL |
| LED Technology | LED Driver |
Key Features
- Based on LED5000 DC-DC step-down converter with 850 kHz switching frequency.
- Adjustable constant current source supporting up to 3 A DC output.
- Embedded PWM dimming circuitry allows precise LED brightness control.
- 220 mV typical RSENSE voltage drop enhances efficiency and performance.
- Compact design compatible with ceramic output capacitors minimizes size.
- Fully protected against overheating, overcurrent, and output short circuits.
- RoHS compliant with country of origin Italy.
- Evaluation board class kit suitable for LED driver development and testing.
Product Description
STMicroelectronics STEVAL-ILL056V1 is an advanced LED Driver Evaluation Board based on the monolithic step-down DC-DC converter LED5000, operating at a fixed switching frequency of 850 kHz. It provides a precise constant current source with adjustable capability up to 3 A DC. The board includes embedded PWM dimming circuitry that enables fine control over LED brightness, making it ideal for lighting development and testing applications.
The regulated output current is controlled by a sensing resistor connected to the feedback pin, with a typical RSENSE voltage drop of 200 mV, delivering high efficiency and optimized performance. Its high-frequency operation allows for a minimized application size and compatibility with ceramic output capacitors, beneficial for compact designs.
This evaluation board is fully protected against thermal overload, overcurrent situations, and output short circuits, increasing reliability during use. Designed for industrial and development environments, it supports LED lighting system prototyping and evaluation, particularly where dimming and current precision are critical.
Based on LED5000, a fixed switching frequency DC-DC converter at 850 kHz. Adjustable constant current source supporting up to 3 A DC output. Embedded PWM dimming for LED brightness control. 220 mV RSENSE voltage drop for increased efficiency.
Compact application size optimized with ceramic output capacitor compatibility. Provides comprehensive protections: overheating, overcurrent, and short circuit. RoHS compliant and manufactured in Italy.
This evaluation board is ideally suited for electronic development tasks in LED lighting, industrial lighting, and commercial LED driver design. It is an essential tool for engineers developing dimmable LED lighting systems requiring precise current regulation and robust protection features.
Explore more LED driver development tools and evaluation boards at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an adjustable constant current source with a maximum output of up to 3 A DC.
The STEVAL-ILL056V1 features embedded PWM dimming circuitry, allowing for precise control over LED brightness.
It operates at a fixed switching frequency of 850 kHz, which aids in minimizing the application size.
The typical RSENSE voltage drop is 220 mV, which enhances efficiency and performance during operation.
Yes, this evaluation board is RoHS compliant, ensuring it meets environmental standards.
It is fully protected against overheating, overcurrent situations, and output short circuits, increasing reliability during use.
It is designed for LED driver applications, specifically for dimming LED drivers.
The country of origin for this evaluation board is Italy.
The compact design allows compatibility with ceramic output capacitors, which minimizes the overall size of the application.
This evaluation board is ideal for electronic development tasks in LED lighting, industrial lighting, and commercial LED driver design.
It is classified as an evaluation board kit, suitable for LED driver development and testing.
Key features include an adjustable constant current source, embedded PWM dimming, and comprehensive protection mechanisms.
