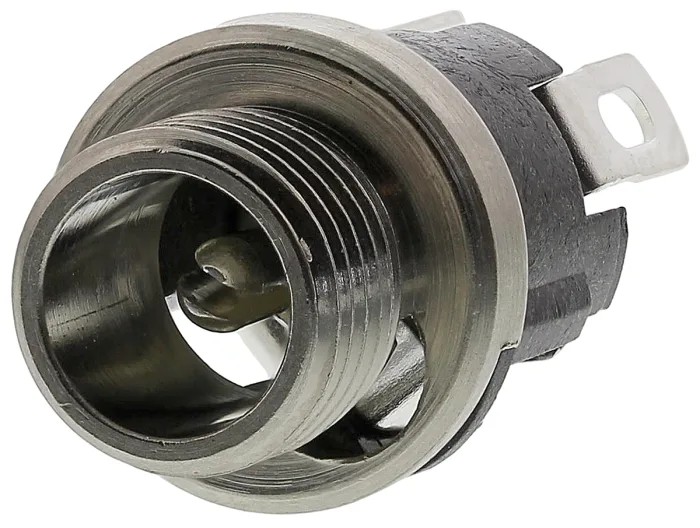

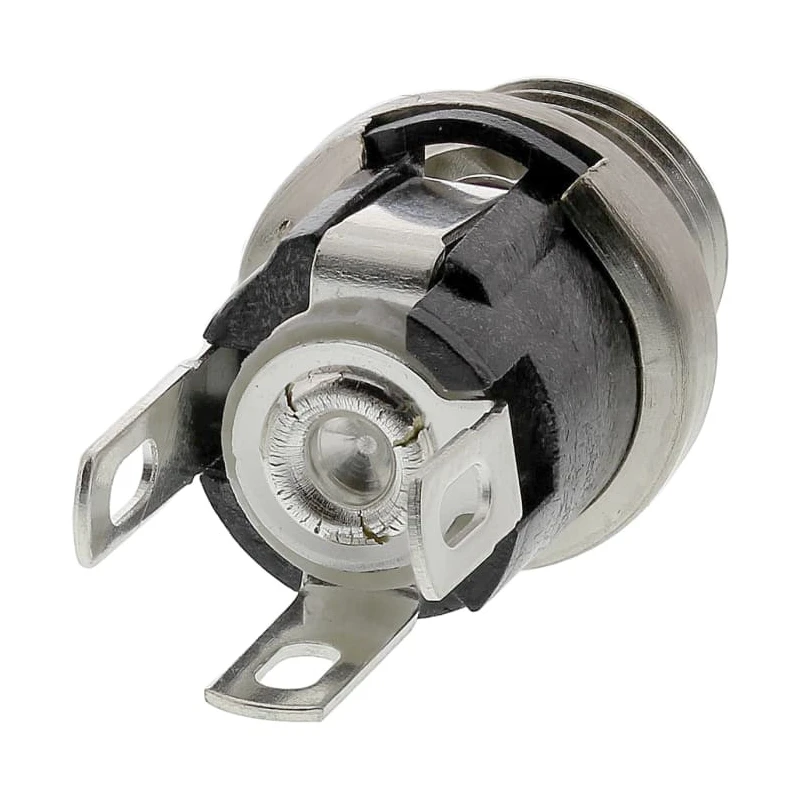

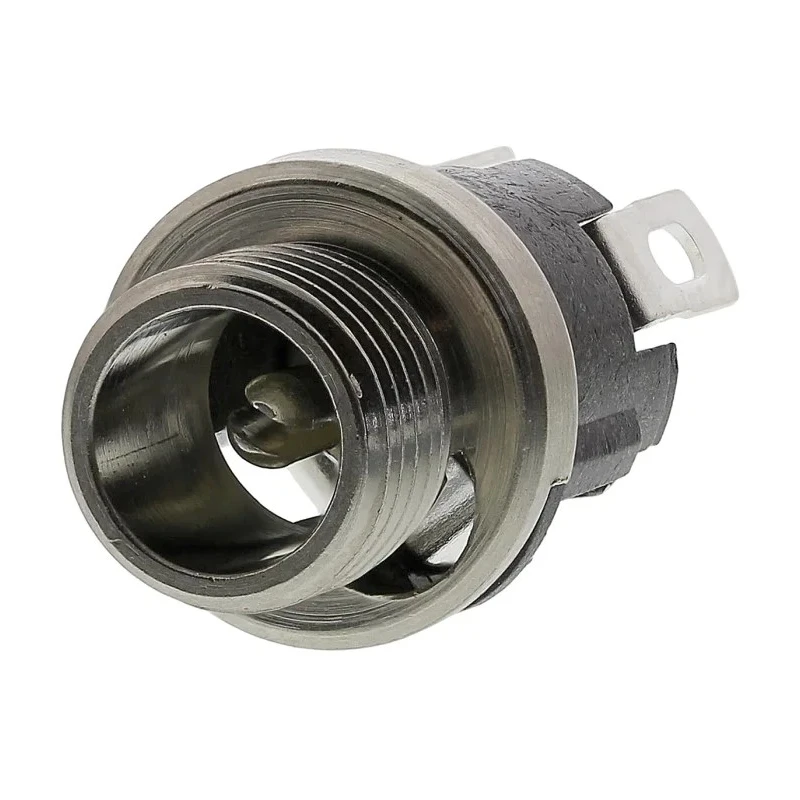

Switchcraft Straight DC Power Socket Panel Mount 5A 12.0V Silver 722A-RS
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 12.0V |
| Brand | Switchcraft |
| Orientation | Straight |
| Current | 5A |
| Model | 722A-RS |
| Width | 14.2mm |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Pin Diameter | 2mm |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Capable of handling 5A current at 12V DC for efficient power transmission.
- Panel mount type with threaded bushing for secure installation and hex nut with washer included.
- Silver-plated copper alloy contacts provide low contact resistance and resistance to corrosion.
- Kinked terminals enable snap-in PC board mounting for easy assembly.
- Split centre pin design ensures firm retention of mating plug for secure connections.
- Withstands dielectric voltage up to 500V AC for safety and durability.
- Designed to endure over 10,000 mating cycles for long service life.
- Compact 14.2mm wide socket suitable for various electronics applications.
Product Description
Switchcraft 722A-RS is a high-quality straight DC power socket designed for panel mount applications. This connector supports a current rating of 5A at 12.0V DC and features silver-plated copper alloy contacts for superior electrical conductivity and corrosion resistance. The socket's straight orientation and male pin diameter of 2mm allow compatibility with a wide range of power plugs.
The panel mount design includes a threaded bushing with hex nut and washer, facilitating secure mounting through panel surfaces up to 3.1mm thick. Kinked terminals allow snap-in PCB mounting for ease of assembly during manufacturing processes.
Engineered to withstand rigorous use, the 722A-RS socket guarantees over 10,000 mating cycles, ensuring reliable and durable connections for industrial, electronic component assembly, laboratory equipment, and commercial power supply integration.
The dielectric withstand voltage of 500V AC allows safe operation in demanding electrical environments, enhancing user safety and longevity of equipment. The split center pin design firmly holds mating plugs to prevent accidental disconnections, making it ideal for precision electronic applications.
Capable of handling 5A current at 12V DC for efficient power transmission. Panel mounting provides secure integration with equipment housings. Silver-plated copper alloy contacts enable low contact resistance and corrosion resistance.
Kinked terminals allow snap-in PC board mounting for assembly convenience. Split centre pin shape holds mating plug firmly to maintain connection integrity. Dielectric withstand voltage rating of 500 V AC ensures operational safety.
Designed for over 10,000 mating cycles for extended durability. Compact 14.2mm width fits standard panel cutouts. Contact gender: Female, suitable for mating with male plugs. Pin diameter precisely 2mm to fit matching connectors.
This Switchcraft 722A-RS DC power socket is suitable for applications in industrial electronics, telecommunications, laboratory instrumentation, automotive electronics, and other areas requiring reliable 12V DC power connections. The quality construction and reliable design ensure consistent performance and ease of installation.
Browse our extensive selection of electronic components and connectors at EnvMart for more solutions tailored to industrial and manufacturing requirements.
Explore more products in our DC Power Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is capable of handling a current of 5A at a voltage of 12.0V DC.
It features a panel mount design, allowing for secure integration with equipment housings.
The contacts are made of silver-plated copper alloy, which provides low contact resistance and resistance to corrosion.
The pin diameter is precisely 2mm, allowing compatibility with matching connectors.
It is designed to withstand over 10,000 mating cycles, ensuring a long service life.
The dielectric withstand voltage is rated at 500V AC, ensuring safe operation in demanding electrical environments.
The socket has a compact width of 14.2mm, suitable for standard panel cutouts.
Yes, it has a split center pin design that ensures firm retention of the mating plug for secure connections.
It is suitable for industrial electronics, telecommunications, laboratory instrumentation, and automotive electronics requiring reliable 12V DC power connections.
This model has a straight orientation, making it versatile for various installations.
The panel mount design includes a threaded bushing, hex nut, and washer for secure installation.
The contact gender is female, making it suitable for mating with male plugs.
