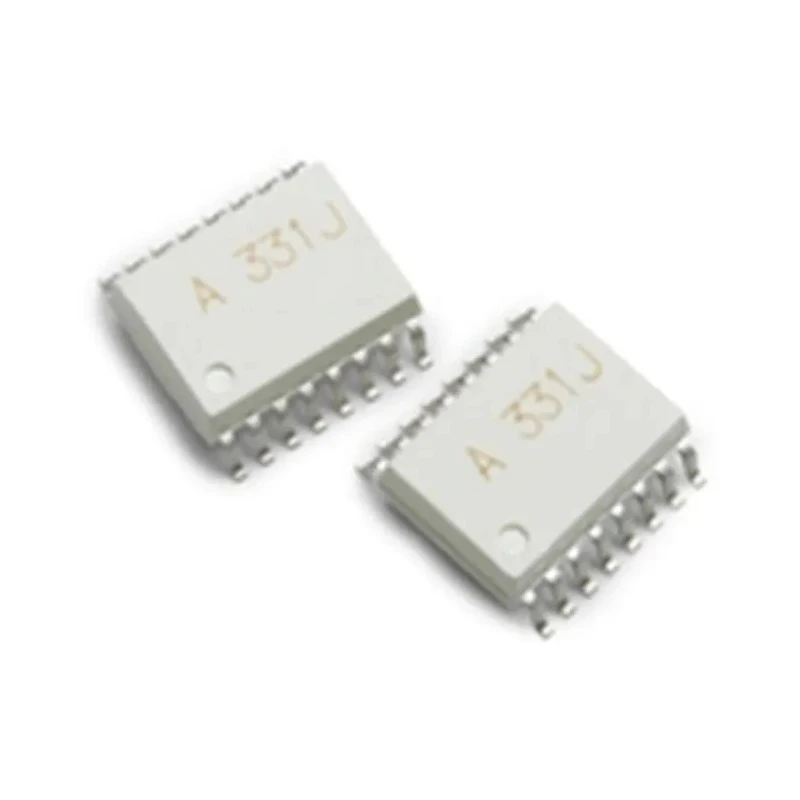

Broadcom 2-Channel Surface Mount Optocoupler, 16-Pin SOIC ACPL-331J-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-331J-000E |
| Mount Type | Surface |
| Series | ACPL-331J |
| Maximum Operating Temperature | 105°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 400mA |
| Number Of Channels | 2 |
| Standards/Approvals | CSA, UL 1577, IEC/EN/DIN EN 60747-5-5 |
| Maximum Forward Voltage | 1.95V |
| Number of Pins | 16 |
| Typical Rise Time | 50ns |
| Isolation Voltage | 3750V ac |
Key Features
- Features integrated protection with Active Miller Clamp and under voltage lockout.
- Supports fault and UVLO status feedback and desaturation detection.
- Includes an integrated DC-DC controller for floating power supply.
- High isolation voltage of 3750V AC ensures safety in high voltage environments.
- Compact 16-Pin SOIC package for surface mount applications.
- Wide operating temperature range from -40°C to 105°C for versatile use.
- Typical rise and fall times of 50ns support fast switching applications.
- Maximum input current rating of 400mA offers robust performance.
Product Description
Broadcom ACPL-331J-000E 2-Channel Surface Optocoupler in a 16-Pin SOIC package provides reliable optical isolation optimized for driving IGBT and Power MOSFET transistors. It integrates advanced protection features including Active Miller Clamp, under voltage lockout (UVLO), fault and UVLO status feedback, and desaturation detection to protect power devices and ensure operational reliability.
This smart gate drive optocoupler also includes an integrated DC-DC controller enabling floating power supply applications. Its high isolation voltage rating of 3750V AC allows safe interfacing between high voltage power electronics and low voltage control logic.
The device supports a wide operational temperature range (-40°C to 105°C) making it suitable for demanding industrial and automotive power electronics environments. Broadcom’s ACPL-331J-000E features fast typical rise and fall times of 50ns and a maximum input current of 400mA, delivering effective high-speed switching performance.
Packaged in a standard 16-Pin SOIC surface mount outline, it offers a compact footprint suitable for automated manufacturing and machinery integration. Certifications include CSA, UL 1577, and IEC/EN/DIN EN 60747-5-5, confirming its quality and reliability standards compliance.
Ideal applications encompass motor control drives, power conversion systems, industrial automation, and other power electronics equipment requiring robust galvanic isolation and signal integrity.
Features integrated protection with Active Miller Clamp and under voltage lockout. Supports fault and UVLO status feedback and desaturation detection. Includes an integrated DC-DC controller for floating power supply. High isolation voltage of 3750V AC ensures safety in high voltage environments.
Compact 16-Pin SOIC package for surface mount applications. Wide operating temperature range from -40°C to 105°C for versatile use. Typical rise and fall times of 50ns support fast switching applications. Maximum input current rating of 400mA offers robust performance.
CSA, UL 1577, IEC/EN/DIN EN 60747-5-5 approved ensuring industry-standard compliance. Designed for motor control and power conversion applications. Explore more in the Optocouplers category at EnvMart for advanced electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolation voltage of this model is 3750V AC, ensuring safety in high voltage environments.
It operates within a wide temperature range of -40°C to 105°C, making it suitable for various industrial and automotive applications.
This optocoupler features 2 channels, allowing for versatile signal isolation and control applications.
The maximum input current rating for the ACPL-331J-000E is 400mA, providing robust performance for high-speed applications.
It is packaged in a compact 16-Pin SOIC format, suitable for surface mount applications.
The typical rise and fall times for this model are 50ns, supporting fast switching applications.
It is compliant with CSA, UL 1577, and IEC/EN/DIN EN 60747-5-5 standards, ensuring quality and reliability.
This model includes integrated protection features such as Active Miller Clamp, under voltage lockout, fault and UVLO status feedback, and desaturation detection.
It is designed for applications such as motor control drives, power conversion systems, and industrial automation requiring robust galvanic isolation.
The maximum forward voltage for the ACPL-331J-000E is 1.95V.
The country of origin for this model is India.
