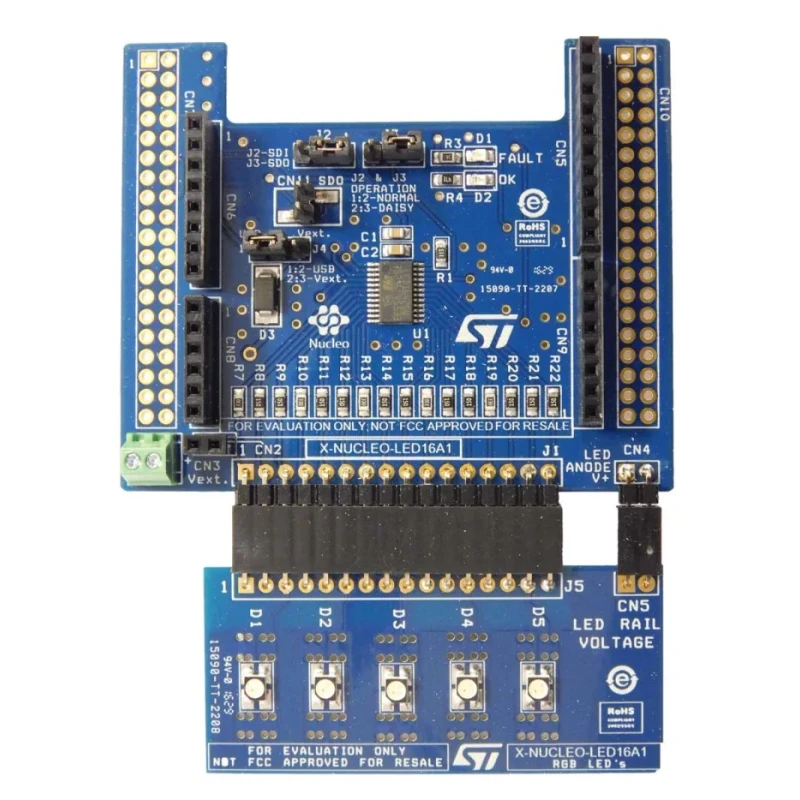

STMicroelectronics Expansion Board LED Driver for LED1642GW for STM32 Nucleo X-NUCLEO-LED16A1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-LED16A1 |
| Output Current | 3 to 40mA per channel |
| For Use With | STM32 Nucleo |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | LED1642GW |
| Kit Name | Expansion Board |
Key Features
- The board features 16 configurable output channels for LED driving.
- Output current is adjustable between 3 to 40mA per channel.
- Selectable LED power rail supports USB +5V or up to +20V via external connector.
- Supports Daisy-Chaining of multiple boards through jumper links.
- Includes 7-bit global current gain adjustment for fine control.
- 12/16-bit grayscale brightness control offers precise LED brightness adjustment.
- Open-circuit and short-circuit LED fault detection enhances reliability.
- Two status indicator LEDs provide operational feedback.
Product Description
STMicroelectronics X-NUCLEO-LED16A1 Expansion Board LED Driver is designed as an evaluation platform for the LED1642GW 16-channel LED driver device, intended for use with STM32 Nucleo development boards. This expansion board facilitates connection of RGB or single colour LEDs with separate brightness control per channel, making it suitable for precise LED light management in various industrial and development applications.
The board offers 16 configurable output channels with an output current range from 3 to 40mA per channel. It supports a selectable LED power rail option between USB +5V or up to +20V via an external connector, enabling flexibility in power supply configurations. The jumper links allow SPI bus Daisy-Chaining of multiple expansion boards to scale LED driving capabilities for more extensive lighting projects.
Additional features include a 7-bit global current gain adjustment for fine tuning the LED current, and a 12/16-bit grayscale brightness control which ensures accurate LED brightness modulation. The board includes advanced diagnostic features such as open-circuit and short-circuit LED fault detection to improve operational reliability and maintenance.
Two status indicator LEDs provide easy visual feedback on board operation. It is equipped with Morpho headers to seamlessly integrate with STM32 Nucleo development boards, along with compatibility for Arduino UNO v3 shield connectors, allowing versatile use in prototyping and development environments.
The X-NUCLEO-LED16A1 board is RoHS compliant and intended for applications in industrial electronics development, embedded system prototyping, robotics, automation, and LED lighting design and evaluation. Its precise current and brightness control capabilities make it ideal for laboratory, manufacturing, and commercial electronics projects.
The board features 16 configurable output channels for LED driving. Output current is adjustable between 3 to 40mA per channel. Selectable LED power rail supports USB +5V or up to +20V via external connector. Supports Daisy-Chaining of multiple boards through jumper links.
Includes 7-bit global current gain adjustment for fine control. 12/16-bit grayscale brightness control offers precise LED brightness adjustment. Open-circuit and short-circuit LED fault detection enhances reliability. Two status indicator LEDs provide operational feedback.
Compatible with STM32 Nucleo morpho headers and Arduino UNO v3 shield connectors. RoHS compliant for environmental safety. Explore the Electronics Components categories at EnvMart for STMicroelectronics boards and other LED driver solutions to enhance your development projects.
Explore more products in our LED Driver Evaluation Board category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current for each channel of this LED driver board is adjustable between 3 to 40mA.
This model is designed for use with STM32 Nucleo development boards and is also compatible with Arduino UNO v3 shield connectors.
It supports a selectable LED power rail option between USB +5V or up to +20V via an external connector.
Yes, it supports Daisy-Chaining of multiple boards through jumper links, allowing for expanded LED driving capabilities.
It includes 12/16-bit grayscale brightness control for precise LED brightness adjustment, along with a 7-bit global current gain adjustment.
The board features open-circuit and short-circuit LED fault detection to enhance operational reliability.
The X-NUCLEO-LED16A1 board is manufactured in India.
This product is classified as an evaluation board, specifically designed for the LED1642GW device.
Specific dimensions and weight details are not provided in the available data.
The board is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for industrial electronics development, embedded system prototyping, robotics, automation, and LED lighting design and evaluation.
It includes two status indicator LEDs that provide visual feedback on board operation.
