STMicroelectronics Graphical User Interface (GUI) Evaluation Board with SPI for SPC56 Discovery Board EVAL-L9960T, 4V - 28V
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | EVAL-L9960T |
| Interface Type | SPI |
| For Use With | SPC56 discovery board (SPC560P-DISP) |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Kit Classification | Evaluation Board |
| Featured Device | SPI |
| Kit Name | Graphical User Interface (GUI) |
| Wide supply voltage range (VBatt) | 4V÷28V |
| Voltage Regulator | On-board 5V, 1.5A |
Key Features
- Wide supply voltage range from 4V to 28V supports diverse control systems.
- Enables evaluation of L9960T DC motor functionalities and diagnostics.
- Compatible with both 5V and 3.3V microcontroller platforms.
- Flexible SPI and configurable PWM/DIR interface for tailored system control.
- On-board 5V, 1.5A voltage regulator with dual LEDs for signal monitoring.
- Advanced failure diagnostics including short circuit, overload, and over temperature detection.
- Four-level current limitation adjustable from 2.5A to 8.6A via SPI.
- Easy connection to SPC5 Discovery+ boards using adapters or wires.
Product Description

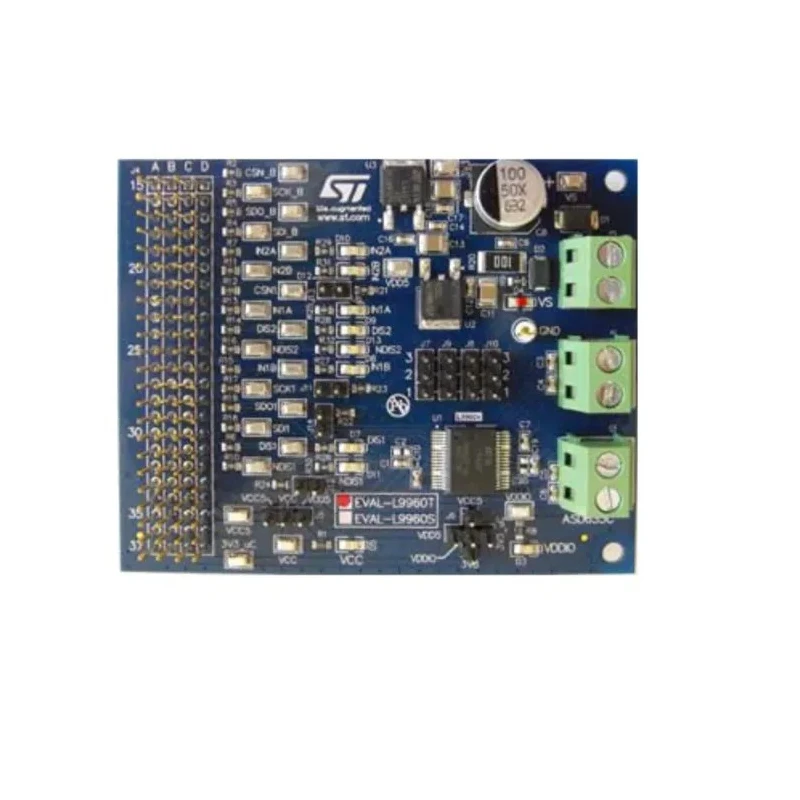

The STMicroelectronics EVAL-L9960T evaluation board is designed as a graphical user interface (GUI) platform for effective evaluation of L9960T driver functionalities. Model EVAL-L9960T incorporates a robust set of features to support DC motor driving and detailed diagnostics in laboratory and industrial environments. It is optimally suited for integration with SPC56 discovery boards (SPC560P-DISP) and is compatible with both 5V and 3.3V control systems.
With a wide supply voltage range from 4V to 28V, the EVAL-L9960T board ensures flexible operation, enabling use in diverse application scenarios. The built-in H-Bridge features integrated free-wheel diodes for minimized power dissipation, and configurable PWM/DIR pins (IN1/IN2) provide tailored control strategies for motor operation. The board’s serial peripheral interface (SPI) enables easy adjustment of device parameters and operation modes, as well as advanced diagnostic readout.
Users benefit from extensive failure diagnostics via SPI, including short circuit detection (to battery, ground, overload), over temperature monitoring, and open-load detection in ON condition, supporting wide-ranging industrial use cases. Current limitation is adjustable in four levels from 2.5A up to 8.6A (typical), configurable via SPI.
Additional on-board features such as a 5V, 1.5A voltage regulator and dual indicator LEDs (for monitoring VBatt and EN signals) offer enhanced system visibility and robustness. Input signal connectors are compatible with SPC5 Discovery+ boards, facilitating straightforward connection via adapter or wiring. Strategic test points allow effective monitoring of input signals (SPI, PWM, EN) and output behavior during system testing and integration.
RoHS certification and compliance to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 ensure the EVAL-L9960T meets essential electronic and industrial safety standards. It is ideal for development, evaluation, and integration into laboratory, automated, and manufacturing environments, supporting both beginner and expert users.
Industrial, laboratory, and development professionals seeking a versatile, diagnostic-rich evaluation board for graphical user interface applications will find the EVAL-L9960T instrumental for motor control, system integration, and in-depth monitoring. Explore more boards in the Display Boards & Adapter Boards category by STMicroelectronics.
Explore more products in our Display Boards & Adapter Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EVAL-L9960T evaluation board supports a wide supply voltage range from 4V to 28V.
This model is compatible with both 5V and 3.3V microcontroller platforms.
It uses a Serial Peripheral Interface (SPI) for communication and configuration.
The current limitation can be adjusted in four levels from 2.5A to 8.6A via SPI.
It includes advanced failure diagnostics such as short circuit detection, overload monitoring, and over temperature detection.
The board features an on-board 5V, 1.5A voltage regulator.
It can be easily connected to SPC56 discovery boards using adapters or wires.
It is RoHS certified and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
This evaluation board is designed for motor control, system integration, and in-depth monitoring in laboratory and industrial environments.
The integrated H-Bridge features free-wheel diodes that minimize power dissipation during operation.
Specific dimensions and weight details are not provided in the available information.
It is classified as an Evaluation Board kit, specifically designed for graphical user interface applications.
