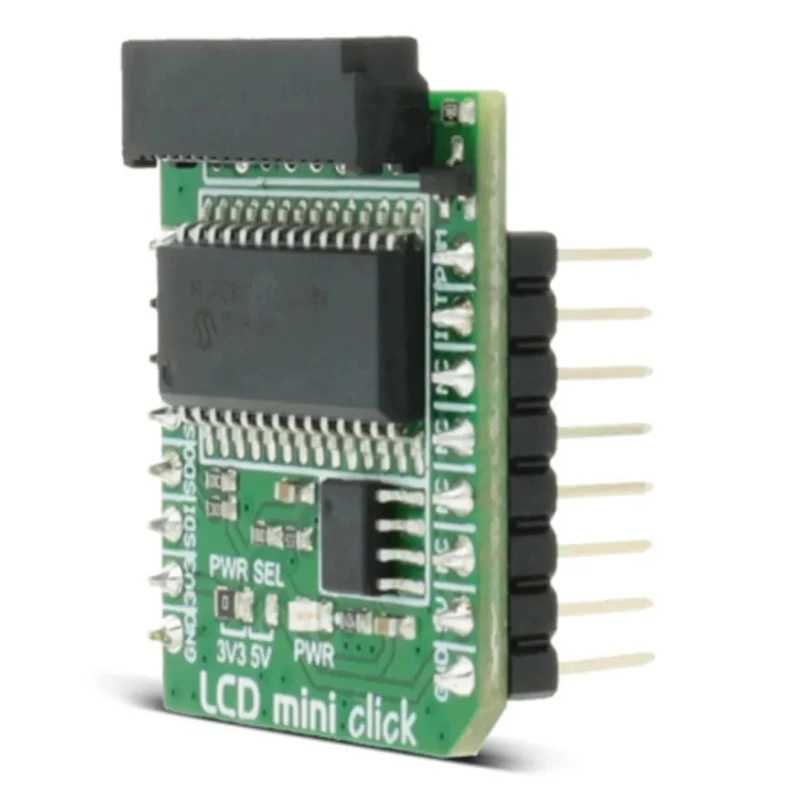

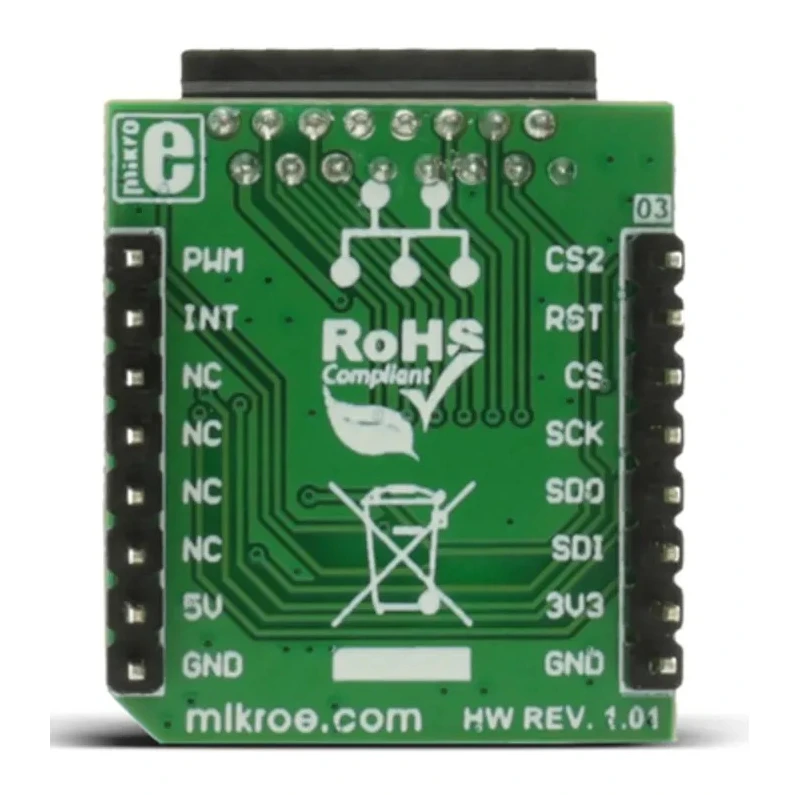

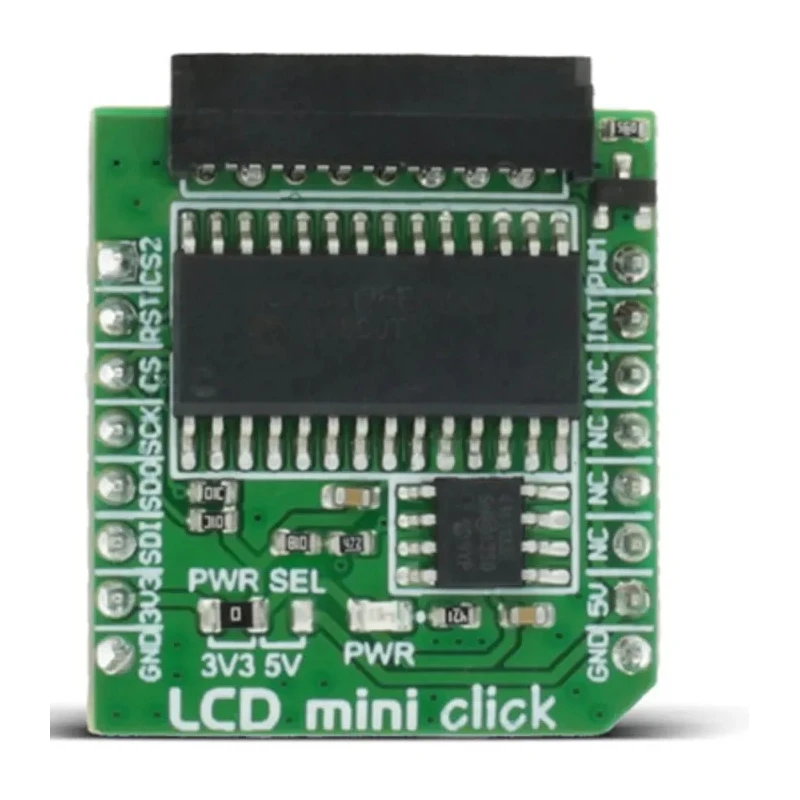

MikroElektronika LCD Mini Click Adapter Board MIKROE-2453, 2x16 Monochrome LCD Display, mikroBUS, PWM Backlight, 3.3/5V
Specifications
| Country of Origin | Srbija |
|---|---|
| Brand | MikroElektronika |
| Interface | SPI mikroBUS™ |
| Dimensions | 53 x 20 x 9 mm |
| Model | MIKROE-2453 |
| Backlight | White LED |
| Display Technology | LCD |
| Standards/Approvals | RoHS |
| Kit Classification | Adapter Board |
| Featured Device | 2x16 Monochrome Character Display |
| Kit Name | LCD Mini Click |
| Low standby current | 1 μA maximum |
| Port Expander | Microchip MCP23S17 |
| Header Strips | Soldered |
Key Features
- Features a 2x16 monochrome LCD LMB162XFW display with white LED backlight.
- Integrates with mikroBUS™ microcontroller development boards using SPI communication.
- Includes MCP23S17 port expander and MCP4161 digital potentiometer for programmable control.
- Supports PWM backlight adjustment and digital contrast control for improved readability.
- Operates on both 3.3V and 5V power supplies for wider compatibility.
- Offers a compact design measuring 53 x 20 x 9 mm suitable for embedded projects.
- Consumes low standby current of maximum 1 μA, ideal for energy-efficient applications.
- Soldered header strips for easy installation on development platforms.
Product Description
The MikroElektronika MIKROE-2453 LCD Mini Click Adapter Board is engineered to provide flexible, easy-to-integrate display solutions for microcontroller development platforms utilizing the mikroBUS™ interface.

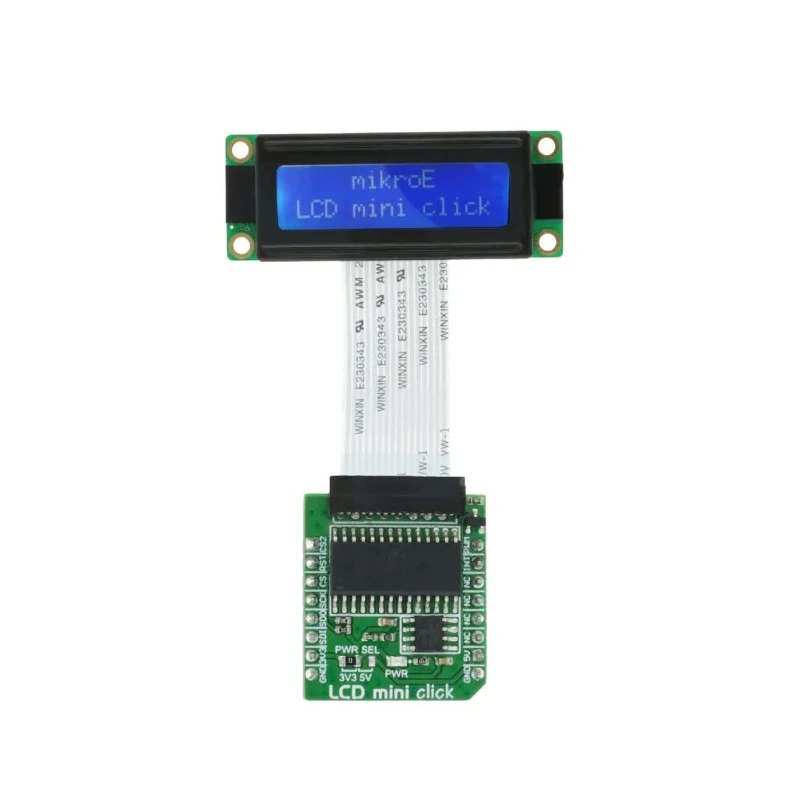

Equipped with a high-contrast monochrome LCD (LMB162XFW), the board supports displaying 2 rows of 16 characters and features a dark blue background with white LED backlighting. It is optimized for applications where clear, readable alphanumeric information output is required, such as laboratory instrumentation, single board computer development, and STEM education environments.
Control and interfacing are enhanced by the inclusion of the Microchip MCP23S17 port expander and the MCP4161 digital potentiometer, enabling programmable adjustment of contrast and allowing precise PWM-based backlight modulation. This adaptability ensures the display maintains optimal visibility in varying ambient lighting conditions.
Designed for direct integration with mikroBUS™ sockets, the adapter board communicates via the SPI interface and supports operation from either 3.3V or 5V power rails, broadening compatibility with a wide range of development systems.
The device’s compact form factor (53 x 20 x 9 mm) and low standby current (1 μA maximum) make it highly suitable for portable and low-power embedded projects. The soldered header strips facilitate easy installation, and the board complies with RoHS standards for safe use in educational, laboratory, and development settings.
This product is valuable in industrial, laboratory, and electronics prototyping, supporting applications including process monitoring, user interface development, and STEM education kits. Its easy mounting and versatile control options make it a practical choice for engineers and educators.
Explore more display board options from MikroElektronika and related categories in Electronics & Electricals for advanced prototyping capabilities with EnvMart.
Explore more products in our Display Boards & Adapter Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a monochrome LCD display technology, specifically the LMB162XFW, which supports displaying 2 rows of 16 characters.
The dimensions of this unit are 53 x 20 x 9 mm, making it compact and suitable for embedded projects.
It utilizes the SPI mikroBUS™ interface for communication, allowing integration with microcontroller development platforms.
This adapter board operates on both 3.3V and 5V power supplies, providing wider compatibility with various development systems.
The maximum standby current consumption is 1 μA, which is ideal for energy-efficient applications.
The board includes a Microchip MCP23S17 port expander and an MCP4161 digital potentiometer, enabling programmable contrast adjustment and PWM-based backlight modulation.
Yes, it complies with RoHS standards, ensuring safe use in various applications including educational and laboratory settings.
The display features a white LED backlight, which enhances visibility in different ambient lighting conditions.
It is suitable for applications such as process monitoring, user interface development, and STEM education kits.
It comes with soldered header strips for easy installation on development platforms, simplifying the setup process.
The featured device is a 2x16 monochrome character display, designed for clear and readable output.
The country of origin for this product is Serbia.
