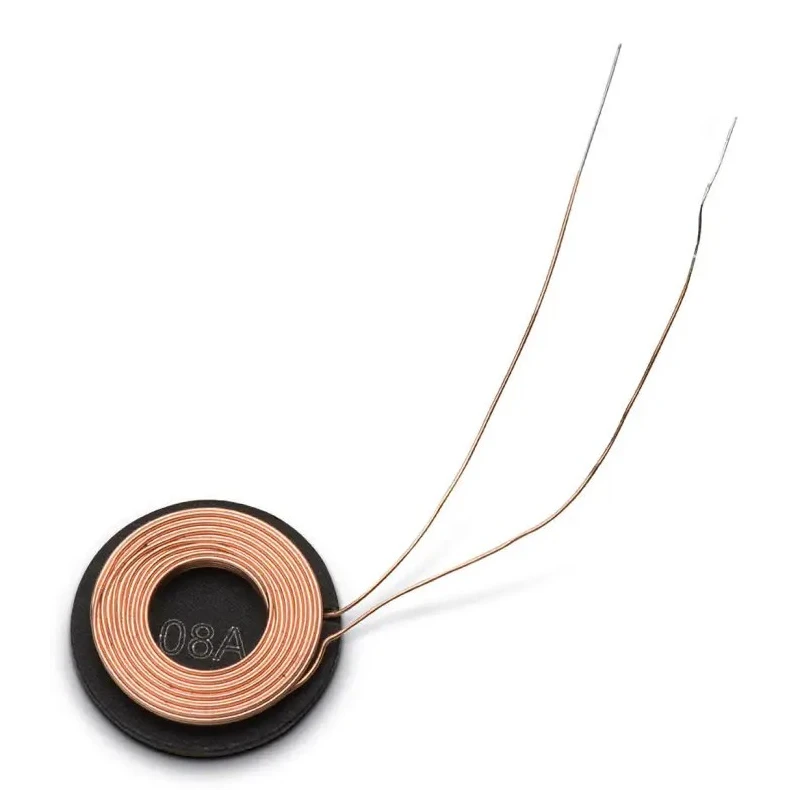

Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver 800 mA, 13 μH, 10.3 mm Dia. 760308101208A

Wurth Elektronik 760308101208A wireless charging coil receiver features 800 mA maximum DC current and 13 μH inductance with a diameter of 10.3 mm designed to support Qi wireless power charging for portable electronic devices.

This coil uses ferrite core material and an axial mount type, ensuring durability and reliable inductive power transfer. It is wound with high-quality litz wire instead of bifilar wire, resulting in a high quality factor of 18 and a low maximum DC resistance of 500 mΩ that maximizes efficiency.

The coil's EMI shield minimizes magnetic leakage, providing safety to users while maintaining stable performance. Operating temperature range is from -20°C up to 105°C, making it suitable for various environmental conditions.

Its compact height of 1.68 mm and 10.3 mm diameter tailor it for integration in small portable devices such as fitness trackers, smart watches, smartphone sleeves, walkie talkies, and headsets.

Wurth Elektronik Wireless Charging Coils comply with RoHS standards and are designed especially for industrial, medical, and clean-room applications where connectors could be a contamination risk. The coil's radial termination style further aids secure and reliable electrical connections.

Compatible with Qi standard wireless charging systems. Efficient energy transfer with up to 75% efficiency when paired with transmitter coils. Constructed with ferrite core and litz wire for optimal performance. Suitable for portable electronic devices requiring frequent mating cycles.

RoHS compliant and environmentally safe design. Compact size supports easy integration into small electronic devices. Use in explosion-sensitive environments due to wireless power transfer capability. Supports wide operating temperature range from -20°C to 105°C.

EMI shielded to reduce electromagnetic interference and leakage. Radial termination ensures secure connection durability.
