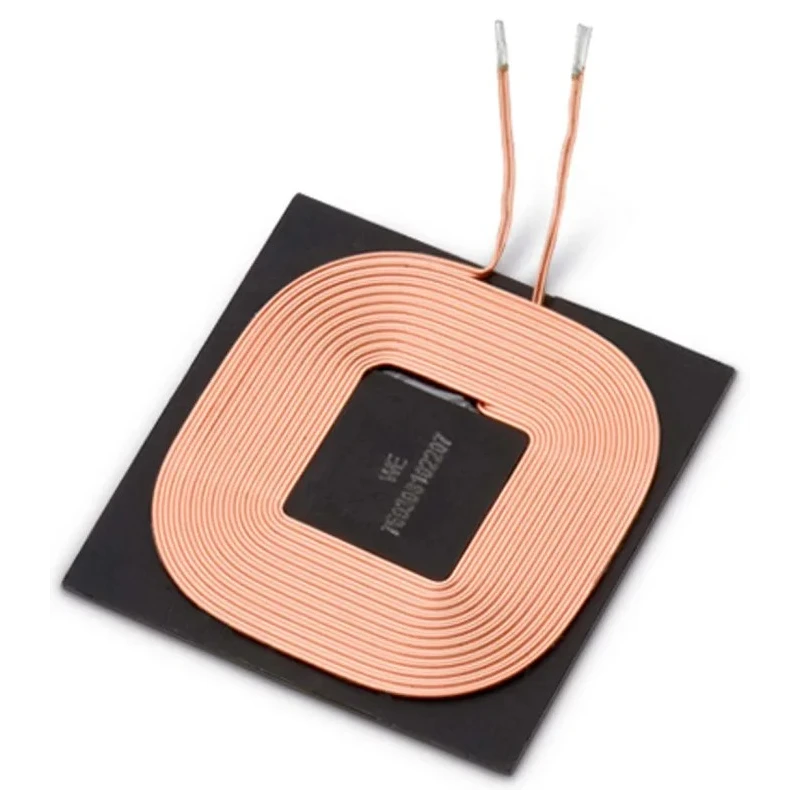

Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver 5 A, 8 μH, 0.9 mm Diameter 760308102207

Wurth Elektronik 760308102207 Wireless Charging Coil Receiver is a high-performance Qi standard compliant coil designed to enable contactless power transfer for portable electronic devices. It features an inductance of 8 μH and supports a maximum DC current of 5 A, ensuring efficient power delivery through magnetic induction.

This receiver coil is constructed with a ferrite core and wound using litz wire, providing outstanding quality factor and low DC resistance. The axial mount and radial termination style facilitate easy integration onto PCBs in consumer electronics and industrial applications.

Designed for robust operation, this coil operates reliably from -20°C up to 105°C, conforming to the EN 61760-1:2006 standard. The coil dimensions are 40 mm in length and height, with a wire diameter of 0.9 mm, optimized for compact device designs.

The WE-WPCC series wireless charging coils by Wurth Elektronik are perfect for devices requiring numerous connect-disconnect cycles, such as fitness trackers, smart watches, walkie talkies, smartphone sleeves, headsets, and portable media players. The absence of physical connectors reduces contamination risks, making these coils suitable for clean rooms and medical environments. Additionally, they are applicable in explosion-sensitive areas where physical connectors pose hazards.

Wireless power transfer is achieved through inductive coupling of transmitter and receiver coils, with a highly concentrated magnetic field and EMI shielding to minimize leakage. Using litz wire winding improves charging efficiency, enabling up to 75% power transfer when paired appropriately.

The coil functions as a receiver in wireless charging circuits. Constructed with a ferrite core for efficient magnetic coupling. Designed with axial mount type and radial termination style for PCB installation. Features an inductance tolerance of ±10% and a minimum quality factor of 30.

Operating temperature ranges from -20°C to maximum 105°C. Diameter of coil wire is 0.9 mm with coil dimensions 40 mm length and height. Meets the EN 61760-1:2006 standard for electrical components. Suitable for use in portable electronic devices such as fitness trackers, smartwatches, and medical equipment.

Magnetic inductive charging avoids connector wear and contamination risks. Efficient wireless charging with up to 75% energy transfer efficiency when paired with transmitter coils.

The Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver is a reliable component choice for industrial, consumer electronics, medical, and cleanroom applications. Explore Wurth Elektronik products on EnvMart for quality electronic components.
