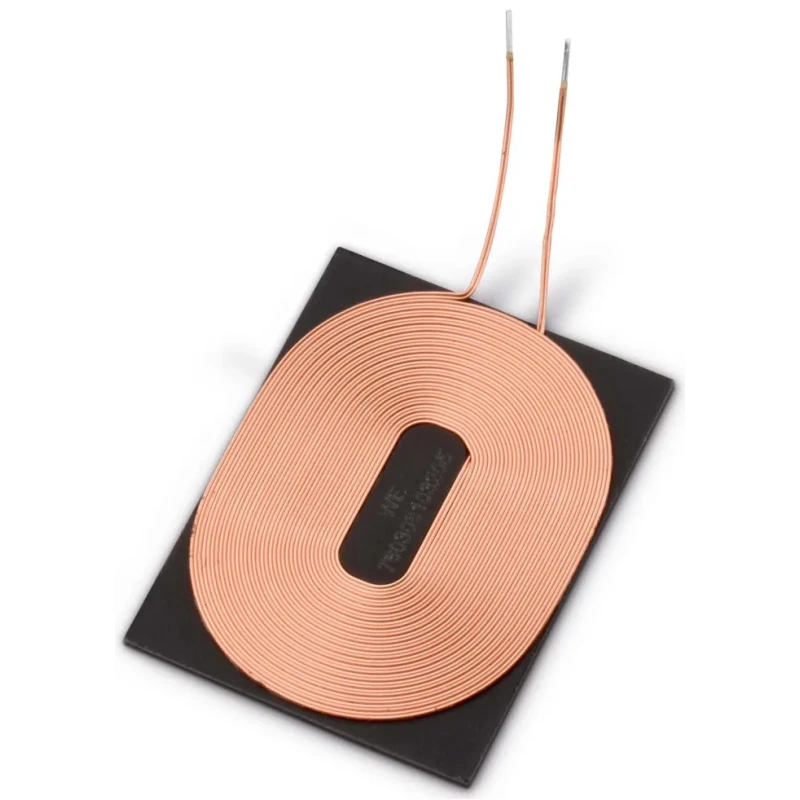

Wurth Elektronik Wireless Charging Coil Receiver 2.5 A, 11 μH, 0.56 mm Diameter 760308103205

Wurth Elektronik 760308103205 wireless charging coil receiver is engineered to deliver efficient inductive power transfer for modern portable electronic devices. It supports a maximum DC current of 2.5 A and has an inductance of 11 μH, making it ideal for Qi wireless power charging applications. The coil features a ferrite core and an axial mount design, ensuring optimal magnetic coupling and durability under various operating conditions.

The coil's construction uses litz wire, which maximizes electrical efficiency by minimizing AC losses. It operates reliably between -20°C and 105°C, with a maximum DC resistance of 200 mΩ and a minimum quality factor of 30. The maximum self-resonant frequency of 16 MHz supports high-frequency applications, maintaining efficient energy transfer.

Designed according to the EN 61760-1:2006 standards, this Wireless Charging Coil ensures consistent performance in consumer electronics, fitness trackers, smart watches, and other portable devices. The compact dimensions (26.5 mm height, 34 mm length, 0.56 mm diameter) facilitate easy integration into circuit boards.

The WE-WPCC series by Wurth Elektronik supports the Qi wireless charging standard. This allows cross-brand compatibility, enabling devices from different manufacturers to be charged wirelessly without the need for multiple chargers. The magnetic induction-based design minimizes user exposure to magnetic leakage fields thanks to an EMI shield implemented in its construction.

Applications include industrial clean rooms, medical facilities, explosion-sensitive environments, and consumer electronics where wireless charging is beneficial. The wireless technology also helps minimize wear on connectors, increasing device longevity.

Supports maximum DC current of 2.5 amperes. Provides an inductance of 11 microhenries with ±10% tolerance. Axial mount type with ferrite core material for optimal magnetic performance. Operates within a temperature range of -20°C to 105°C.

Features a maximum DC resistance of 200 milliohms ensuring low power loss. Ensures high quality factor of at least 30 for efficient energy transfer. Maximum self-resonant frequency of 16 MHz enhances signal integrity. Complies with EN 61760-1:2006 standard for reliability and performance.

Compact dimensions with 26.5 mm height, 34 mm length, and 0.56 mm diameter. Compatible with Qi wireless charging standard for cross-brand use. Explore Wurth Elektronik products and catalog for advanced electronic components and design solutions at EnvMart.
